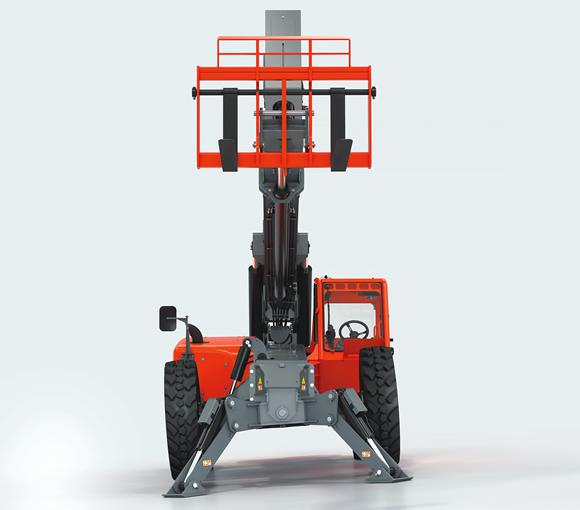

SJ1256 THS

  • Skyjack
  • Telescopic Handlers

Find Your Nearest Location

Find Location
Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs
  • Engine block heater
  • Single multifunction pilot operated joystick control
  • Suspension seat
  • Auxiliary hydraulics
  • Lockable in cab storage box
  • In cab engine multifunction display
  • Hydraulic test ports
  • 2 Year Gold Leaf Warranty (5 year structural warranty)
  • Axle mount outriggers
  • Steel component and access covers
  • Quick attach carriage mount
  • Rear window with wiper
  • Fiberglass engine cowling
  • Side window
  • Telematics ready
  • + Expand All
  • - Close All
  • Overall Specifications
    Overall Width
    8’ 5” (2.56 m)
    Ground Clearance
    19” (48.3 cm)
    Turning Radius (Outside)
    173” (4.39 m)
    Maximum Lift Capacity
    12,000 lbs (5,443 kg)
    Maximum Lift Height
    56’ 3” (17.14 m)
    Rated Lift Capacity @ Maximum Height
    6,000 lbs (2,721 kg)
    Maximum Forward Reach
    42’ 6” (12.95 m)
    Rated Lift Capacity @ Maximum Reach
    7,000 lbs (3,175 kg) (w. O/R)
    O/A Length - LessForks
    23’ 1” (7.03 m)
    Overall Height - Stowed
    8’ 6” (2.59 m)
    Operating Weight
    34,500 lbs (15,649 kg)
    Engine
    107hp / 320 lb-ft Deutz TCD 3.6L T4F
    Max Travel Speed - Forward
    15 mph (24 km/h)
    Transmission
    Dana Powershift, 3 Speeds F/R
    Axles
    Dana
    Steering
    3 mode (Front Wheel, 4 Wheel, Crab)
    Tires
    Pneumatic 14 x 24 16PR Grip Lug
