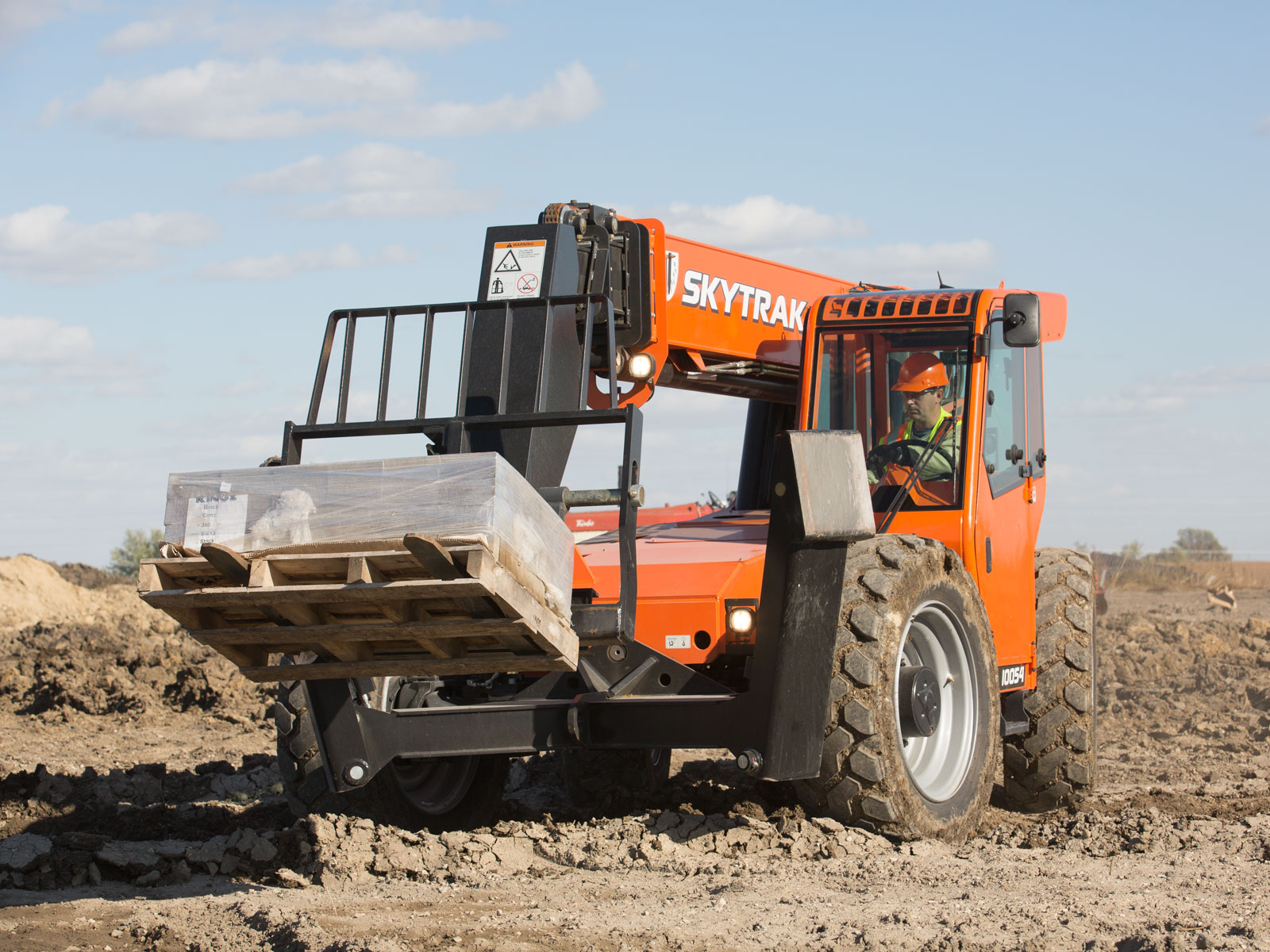

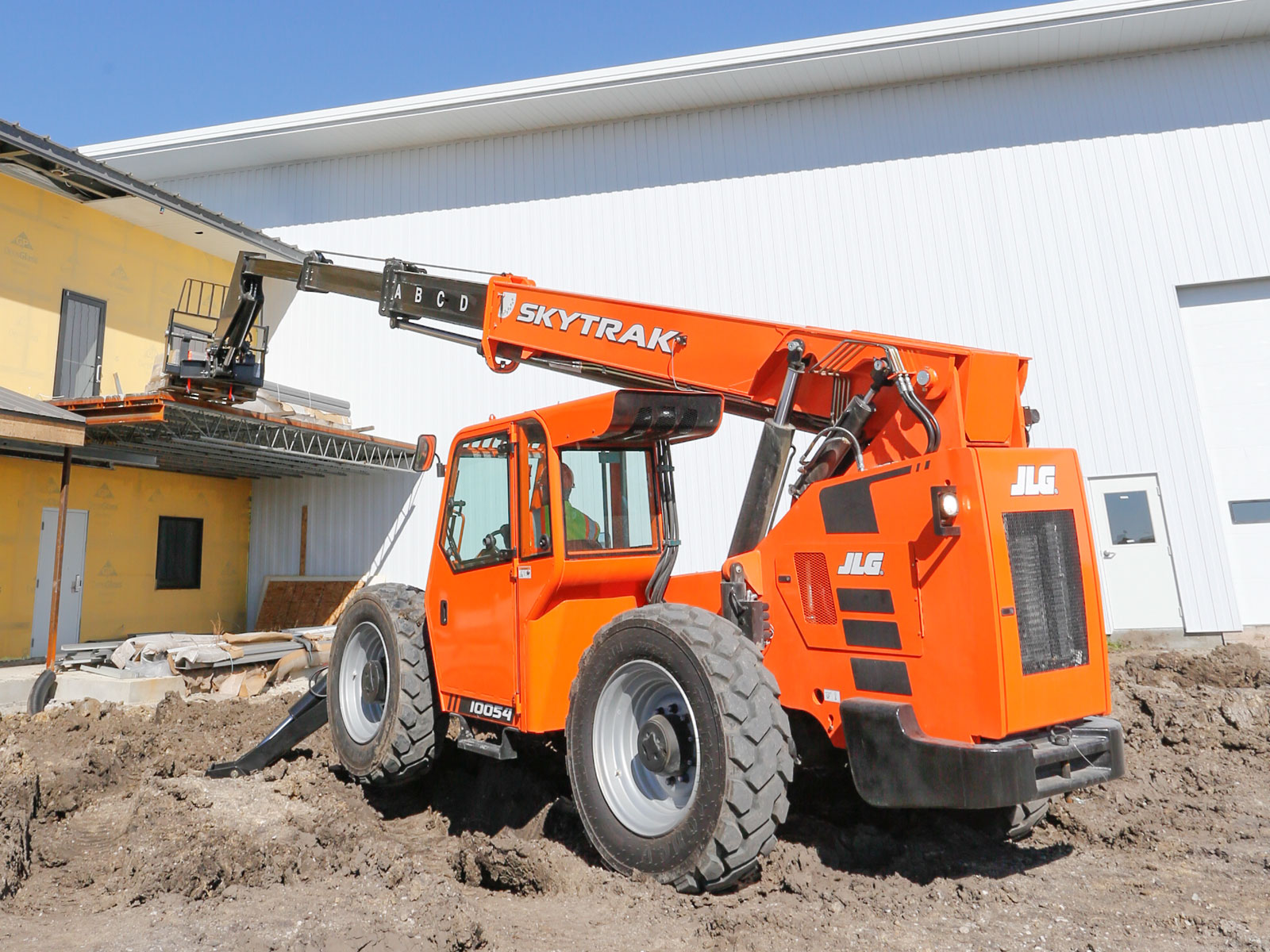

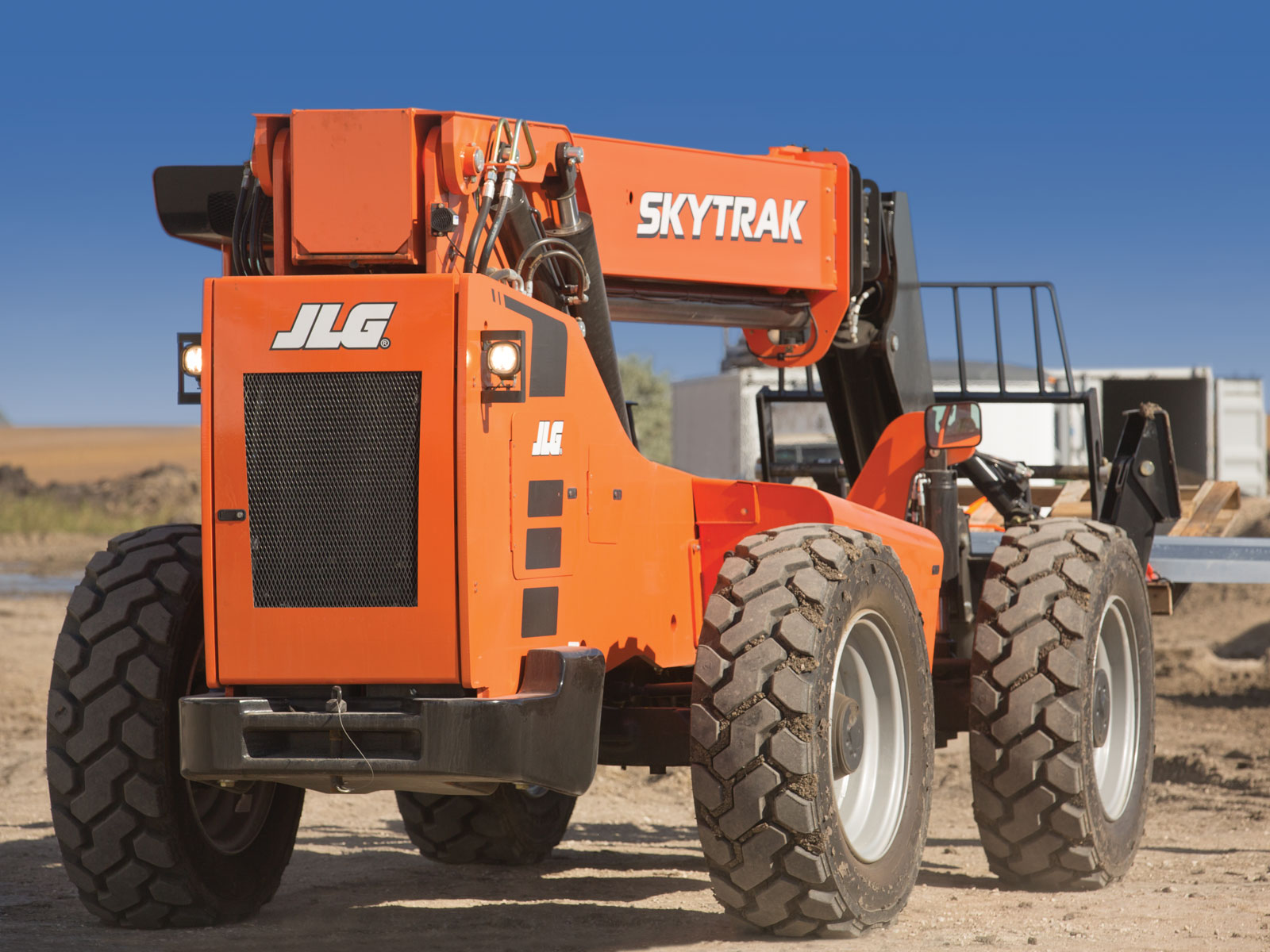

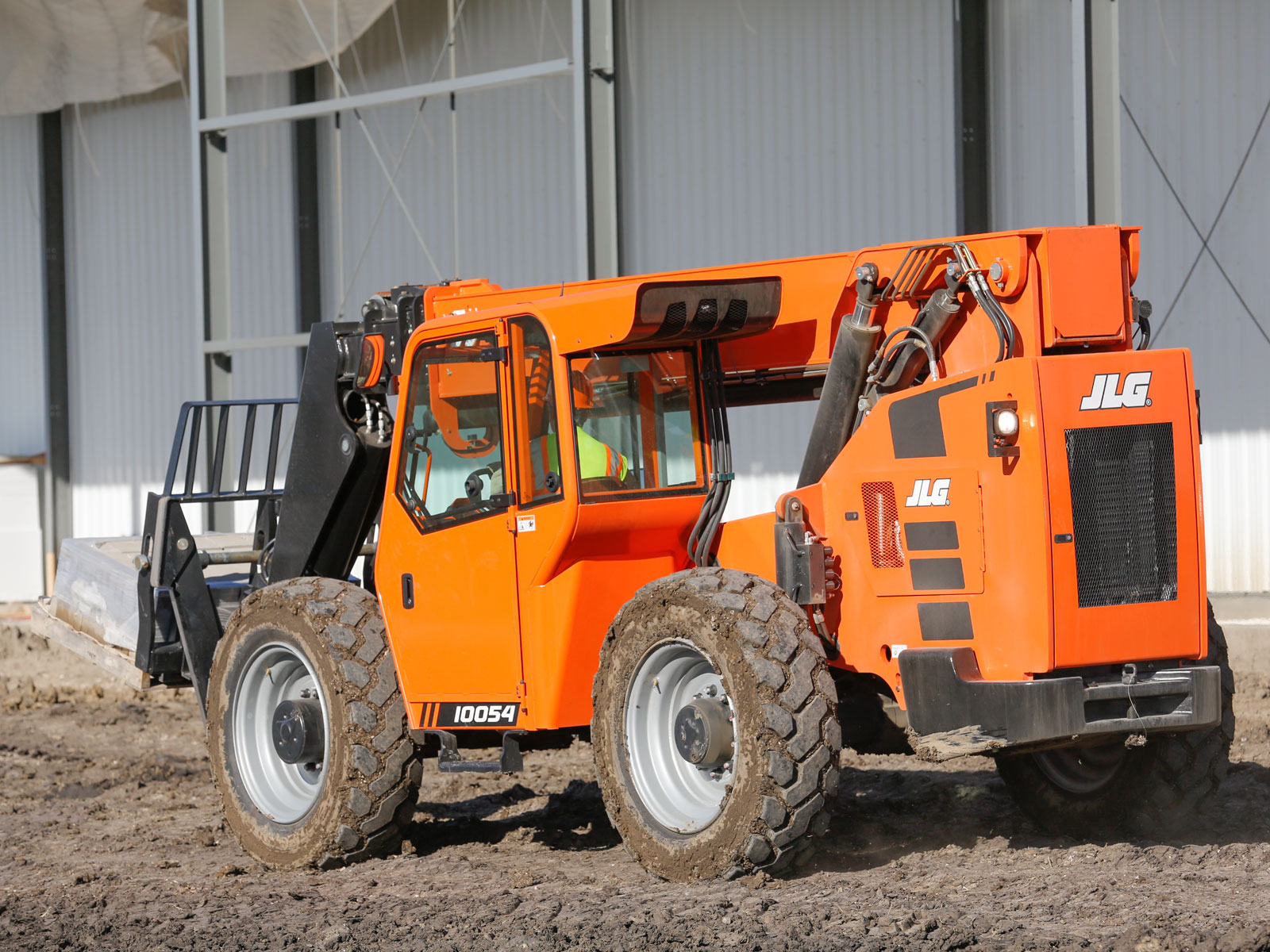

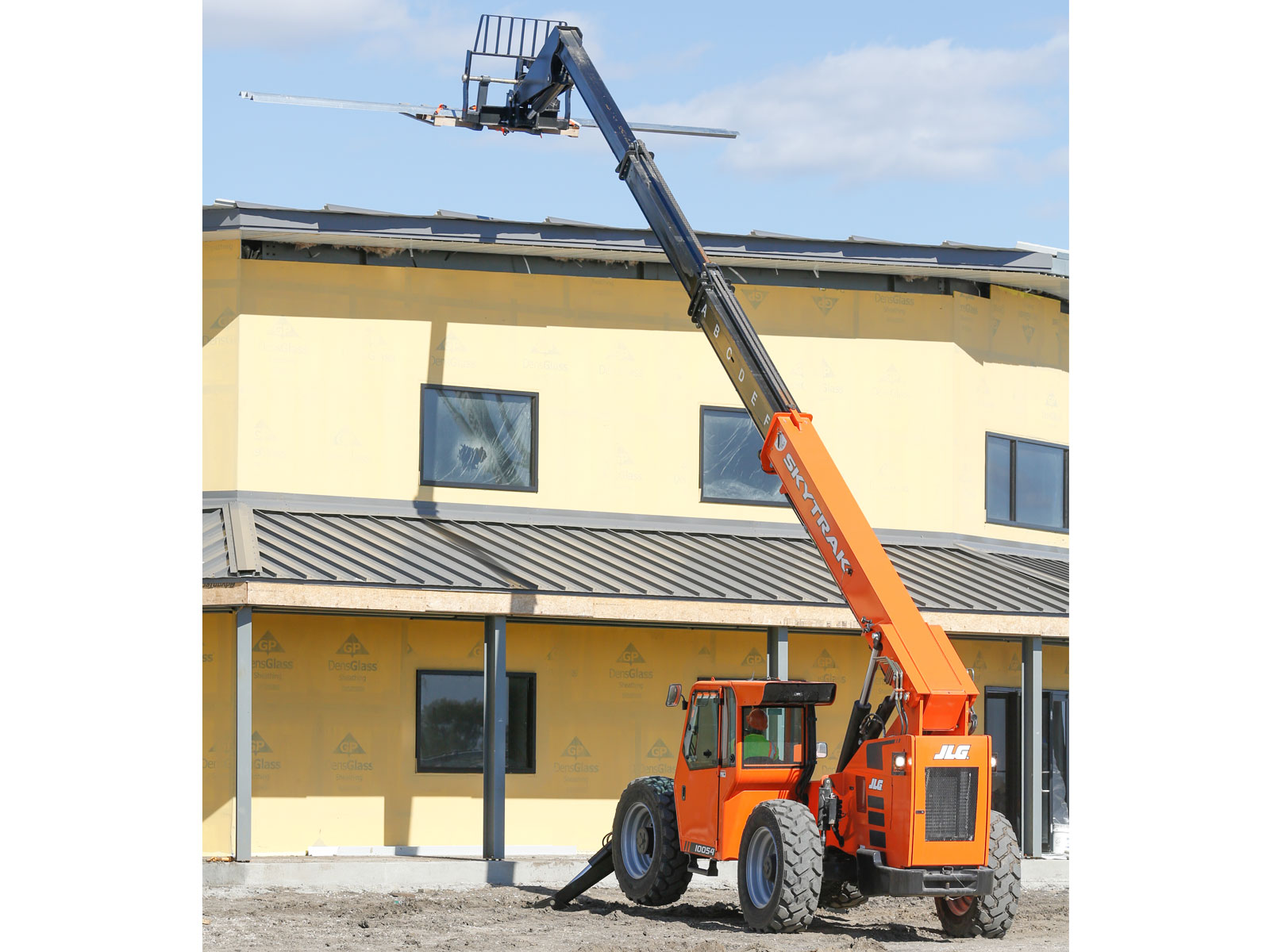

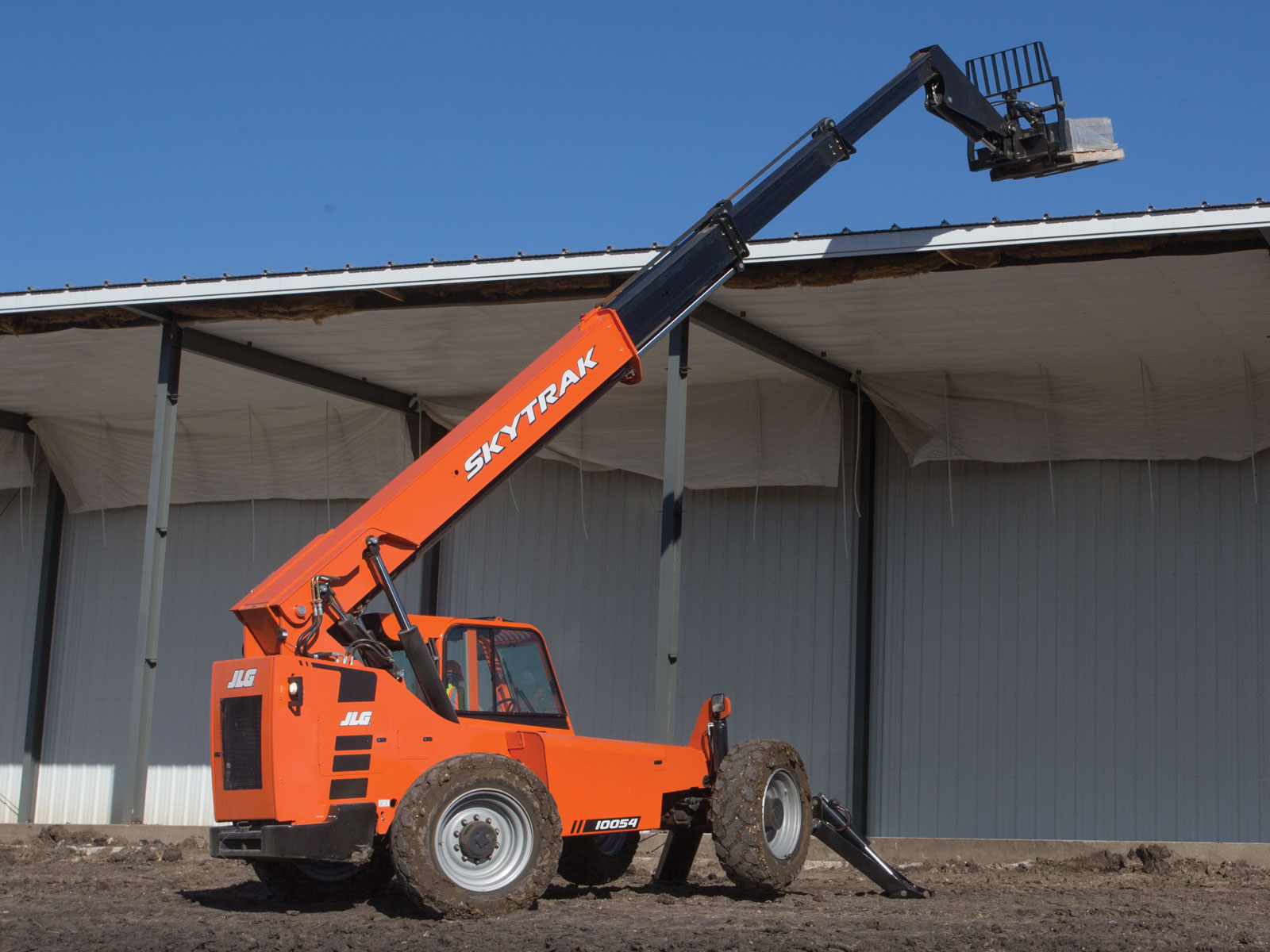

10054

  • JLG
  • Telescopic Handlers

Find Your Nearest Location

Find Location
Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs

Key Specs

  • Maximum Lift Capacity: 10000 lb / 4535.92 kg
  • Outriggers Up Max Lift Height: 53 ft 2 in. / 16.21 m
  • Maximum Lift Height: 53 ft 2 in. / 16.21 m
  • Maximum Reach: 38 ft 9 in. / 11.81 m

Key Features

  • Single joystick and integrated arm rest for reduced operator fatigue
  • Optional air conditioning for enhanced operator comfort
  • Stabil-Trak rear axle stabilization system for increased operator confidence when placing a load
  • Optional 74 hp engine doesn’t require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations
  • Take a virtual tour of the SkyTrak telehandlers
  • Optional 74 hp engine doesn’t require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations
  • Stabil-Trak rear axle stabilization system for increased operator confidence when placing a load
  • Take a virtual tour of the SkyTrak telehandlers
  • Optional air conditioning for enhanced operator comfort
  • Single joystick and integrated arm rest for reduced operator fatigue
  • Axle-Rear: Oscillating
  • Transmission - Nr Forward Gears Standard: 4
  • Machine Width: 8 ft 6 in. / 2.59 m
  • Outriggers Up Lift Capacity Full Reach: 3000 lb / 1360.78 kg
  • Transmission - Nr Reverse Gears: 3
  • Maximum Engine RPM: 1500 rpm
  • Speed - Maximum Telescope Out: 17.6 sec.
  • Drawbar Pull: 24500 lb / 11113.01 kg
  • Machine Height: 8 ft 4 in. / 2.54 m
  • Axle-Front: High Bias, Limited Slip
  • Capacity - Fuel Tank: 35 gal. / 132.49 L
  • Machine Length: 21 ft / 6.4 m
  • Speed - Maximum Travel: 20 mph / 32.19 km/h
  • Maximum Lift Height: 53 ft 2 in. / 16.21 m
  • Frame Leveling: 10 Degrees
  • Transmission Type: Powershift
  • Lift Capacity at Full Height: 4000 lb / 1814.37 kg
  • Outriggers Up Max Forward Reach: 38 ft 9 in. / 11.81 m
  • Tire Size: 400/75-28
  • Engine Manufacturer: Cummins
  • Speed - Maximum Lift: 16.4 sec.
  • Function Pump Type: Var Load Sensing Piston
  • Speed - Maximum Lower: 14.7 sec.
  • Load Center: 2 ft / 0.61 m
  • Outriggers or Stabilizers: No
  • Maximum Lift Capacity: 10000 lb / 4535.92 kg
  • Operating Vehicle Weight: 28200 lb / 12791.30 kg
  • Speed - Maximum Telescope In: 15.9 sec.
  • Ground Clearance: 1 ft 6 in. / 0.46 m
  • Service Brake Type: Wet Multi-Disc
  • Engine Model: QSF3.8L Tier 4 Final
  • Lift Capacity at Max Reach: 1400 lb / 635.03 kg
  • Wheelbase: 10 ft / 3.04 m
  • Engine Horsepower: 110 hp / 82.06 kW
  • Outside Turning Radius: 13 ft 9 in. / 4.19 m
