Aisle Master Combi WR Walkie Reach Stacker

Aisle Master Combi WR Walkie Reach Stacker

Aisle Master Combi WR Walkie Reach Stacker

Aisle Master Combi WR Walkie Reach Stacker

Combi WR Walkie Reach Stacker

Aisle Master
Multi-Directional

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

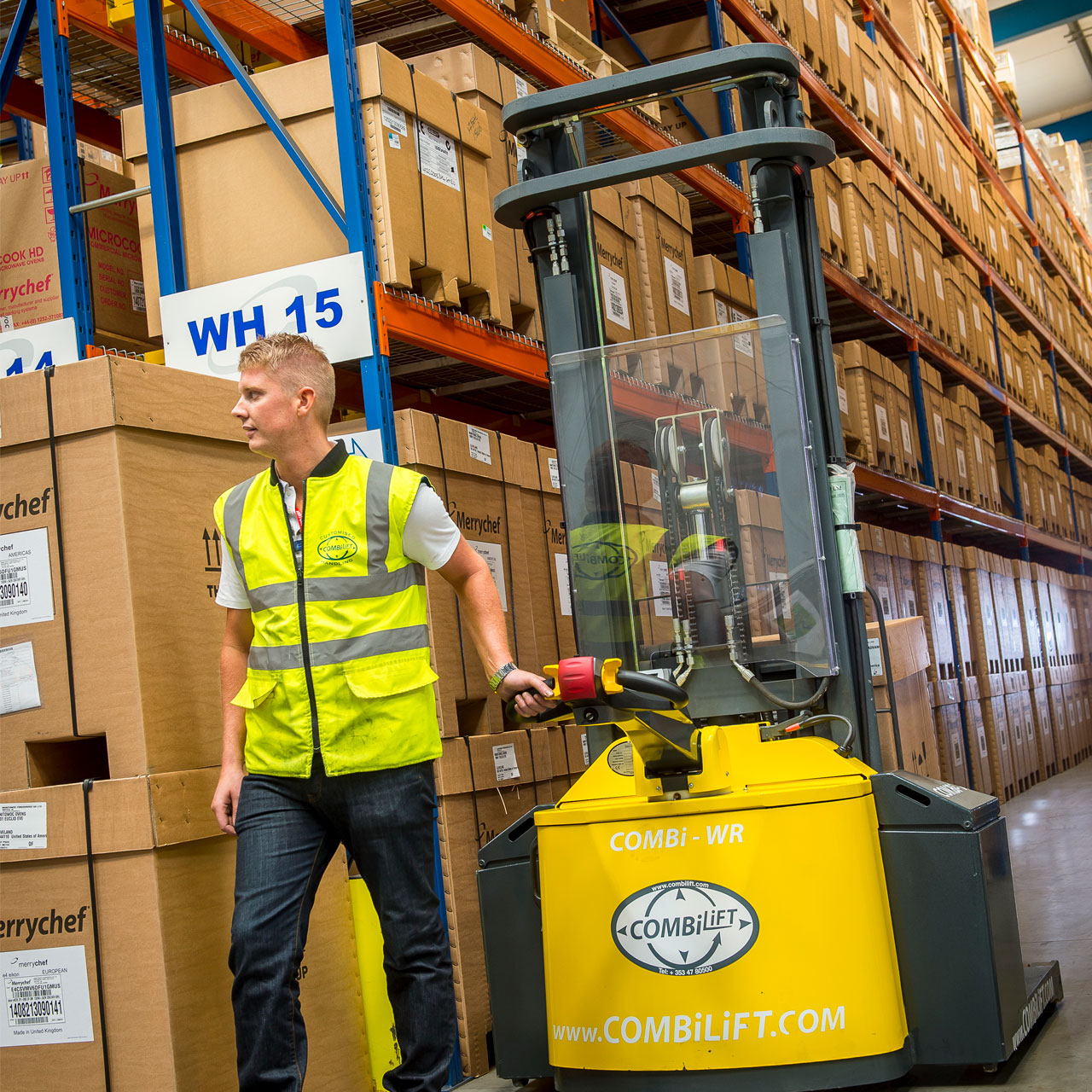

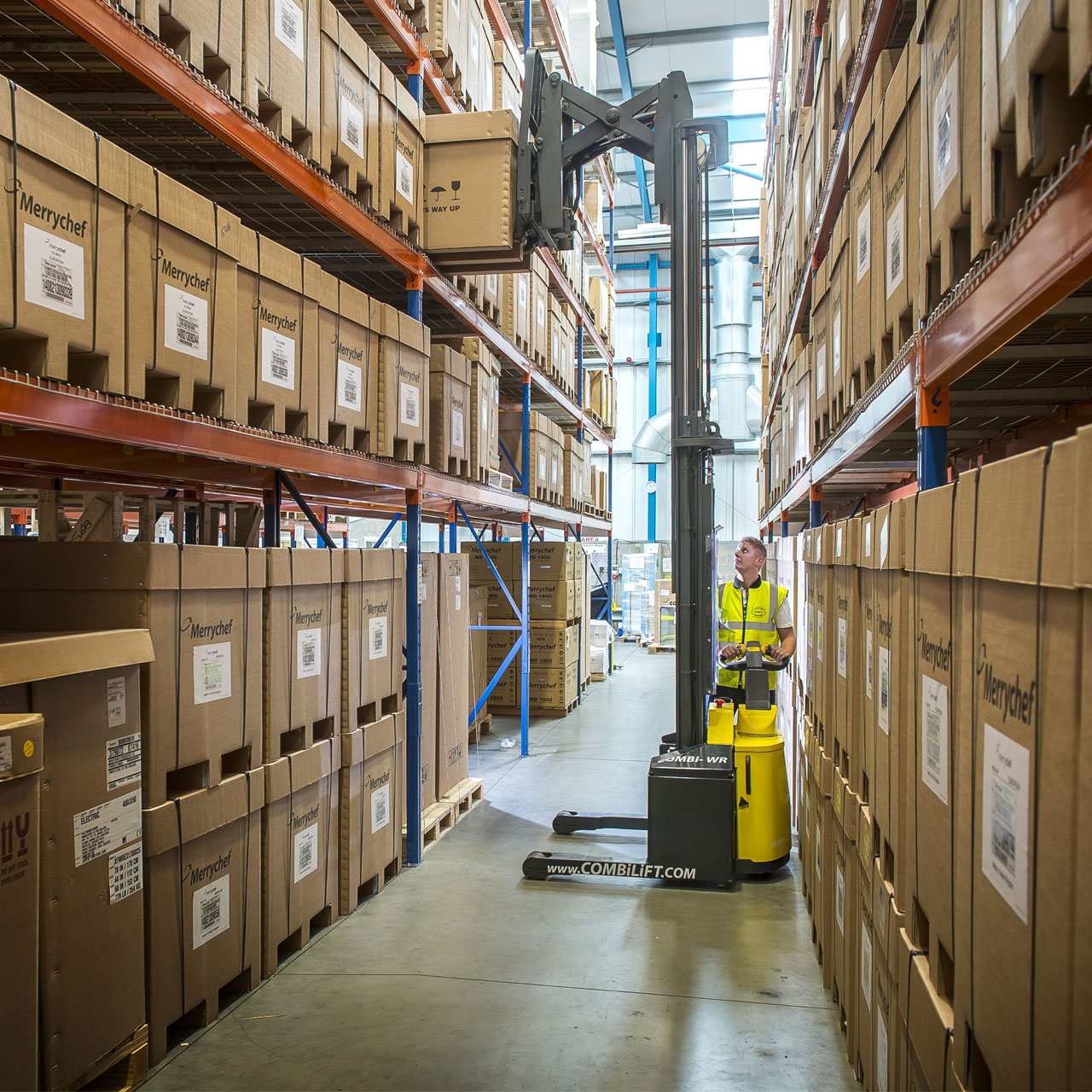

The Combi-WR is the first purpose built pedestrian reach-stacker with the capability to operate in a VNA working aisle – down to 2.1 m. This is achieved through a unique patented multi-position tiller arm that places the operator in the safest possible position.

Incorporating the benefits of AC technology in its traction, pump and steering motors, the Combi-WR has a lift height that can be tailored to your application with load capacities up to 1,450kg.

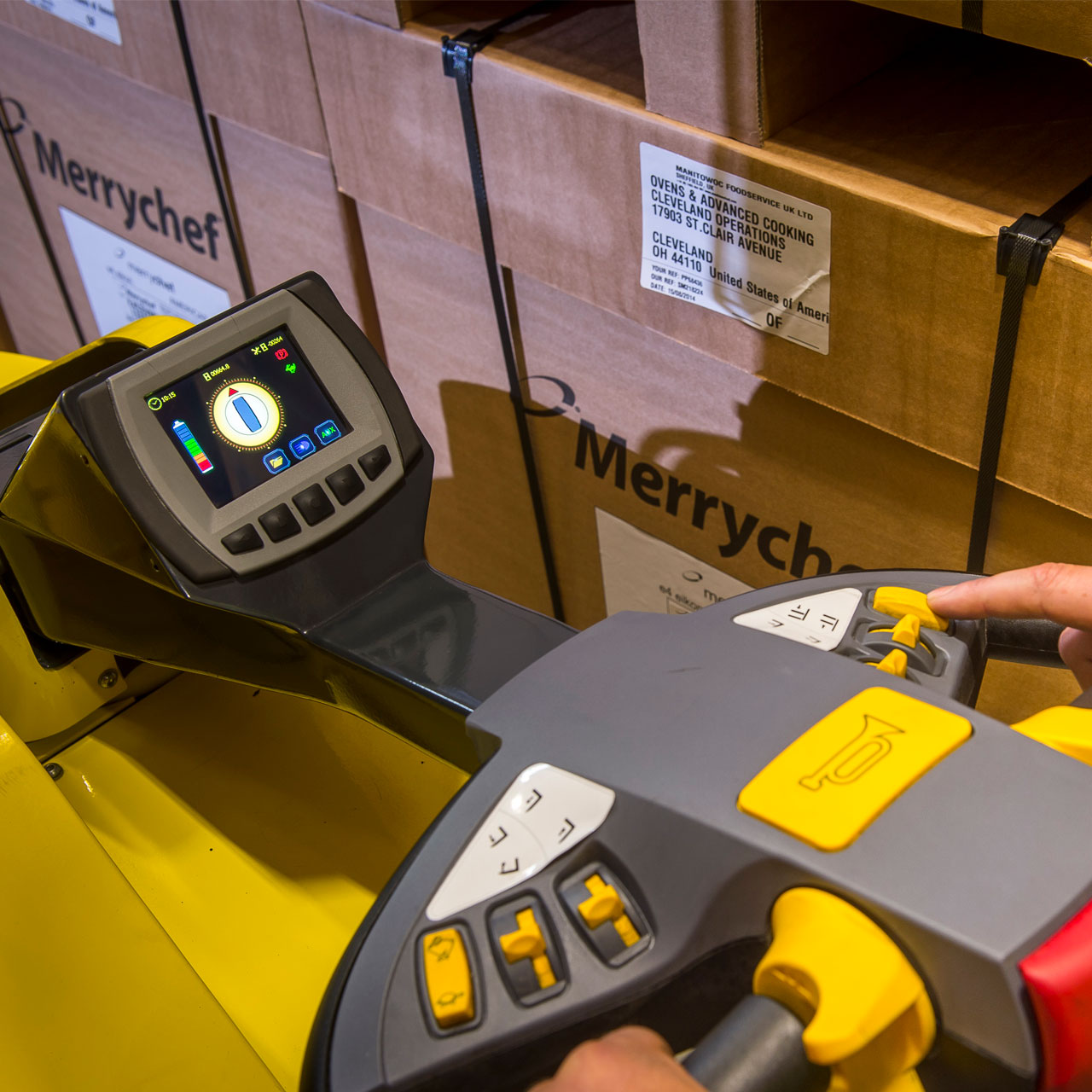

Electronic power steering and fingertip controls ensure effortless operation, even in the most demanding environments.

Electronic steering and fingertip controls for precise handling
Unique pedestrian walkie reach-stacker
Works in a standard VNA working aisle, down to 2.1m
AC electric motor

Specifications

Fork Backward Tilt: 3 degrees
Overhang Front: 603 mm
Frame Opening: 1008 mm
Length from Face of Fork: 880mm
Wheelbase: 1172 mm
Minimum Outside Radius: 1350 mm
Mast Range: 3000 mm to 4900 mm
Front Tyre x (Polyurethane): OD127mm/Width75mm
Battery Capacity Range: 24V / 270 Ah
Leg Height: 127 mm
Maximum Ground Speed: 6 Km/h
Overhang Back: 175 mm
AC Electric Traction Motor: 24V / 2.5 kW
Unladen Weight: 2500 kg / 2600 kg / 2700 kg
Capacity: 1450 kg @ 3200 mm Lift
24V / 2.5 kW AC Electric Pump Motor: 24V / 5 kW
Fork Forward Tilt: 3 degrees
Overall Length: 1950 mm
Load Centre Distance: 600 mm
Standard Colour*: Yellow and Grey
Rear Tyre (Vulkollan): OD250mm/Width75mm
Ground Clearance Under Mast: 80 mm
Fork Section: 35mmx100mmx1070mm
Outside Spread of Fork Arms: 815 mm
Width: 1320 mm
Leg Length: 530 mm
Track Front: 1165 mm
Gradeability: 5%
Fork Travel: 590 mm
Fork Side Shift: 80 mm Left / 80 mm Right
