Key Features & Specs

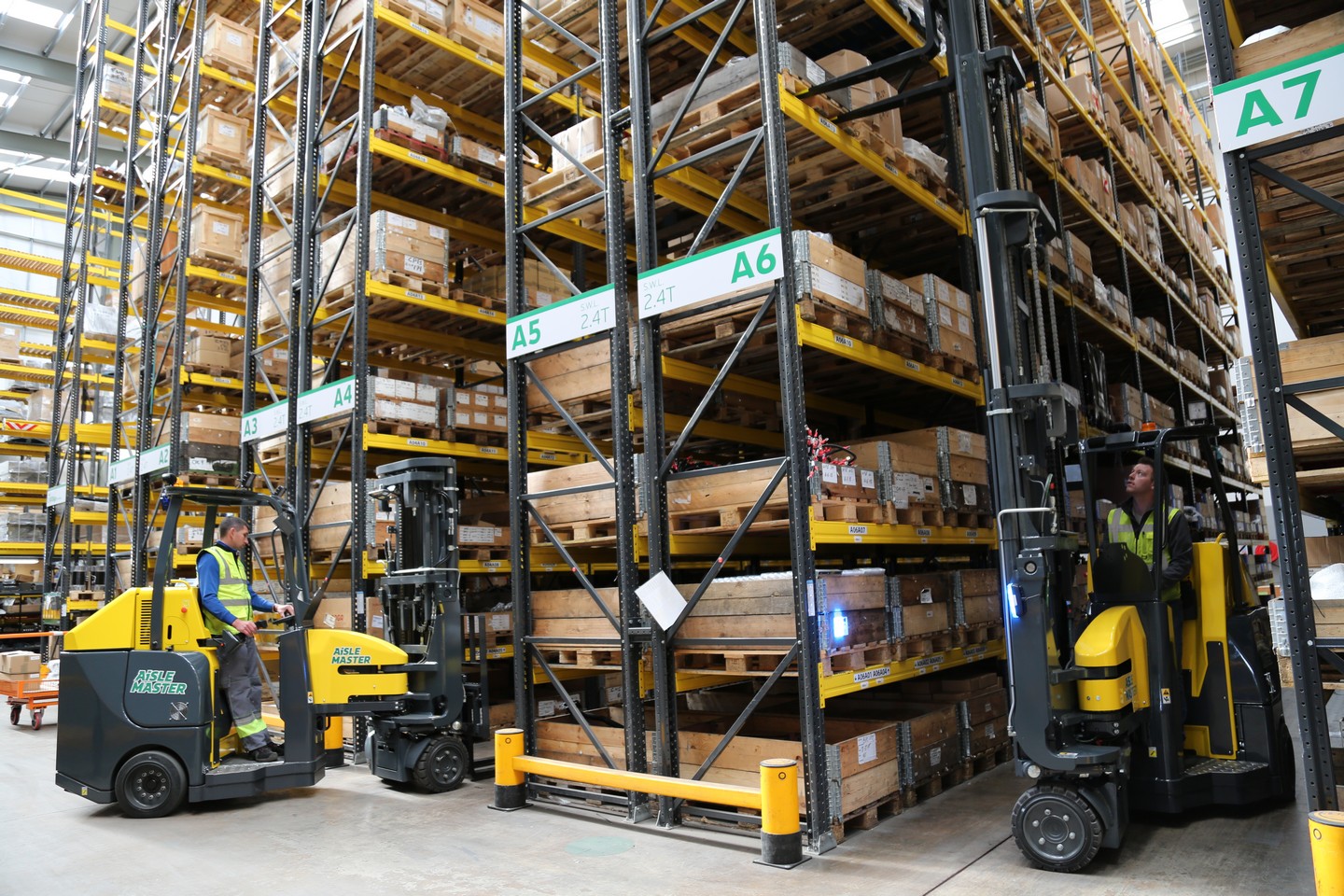

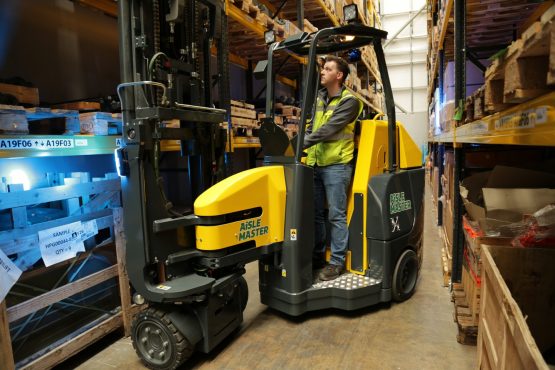

The NEW Aisle Master-OP (AME-OP) is a stand-on electric powered model that combines the advantages of a narrow aisle articulated forklift and an order picker for versatile operation in warehousing applications.

The main benefits of AC electric include enhanced performance levels, leading to increased pallet movements for greater productivity and improved acceleration and gradeability. There are also fewer wearable parts resulting in low maintenance and reduced downtime.

AC Traction motor (19.5 kw)
Reduced energy consumption
Quick & easy battery removal
A choice of 620/775/930 amp-hour capacity batteries

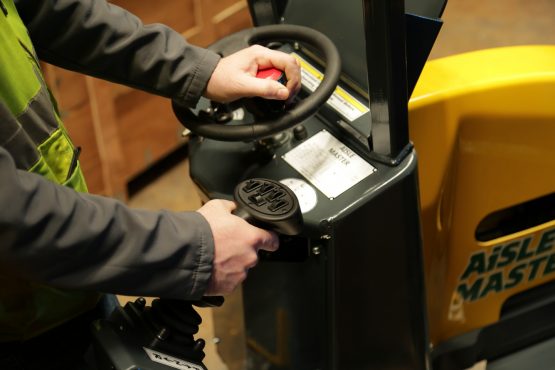

Ergonomically designed operator’s cab

Specifications
Documents

Height Mast Closed: 1365mm
Front Tyre Size: 412x174mm
Lift Speed Laden/Unladen: 0.4/0.5 m/s
Truck Weight Less Battery: 6165kg
Load Centre: 600mm
Step Height: 280mm
Battery Voltage: 12%/15%
Height Mast Raised: 5174mm
Mast Tilt (Back/Forward): 3//1 Degrees
Overhead Guard Height: 2286mm
Capacity: 2000kg
Mast Range: 4300-12100mm
Overall Length: 2780mm
Chassis Width – Rear: 1400mm
Gradeability: 12%/15%
Rear Tyre Size: 457×228mm
Chassis Width – Front: 980mm
Wheel Base: 1733mm
Fork Carriage Width: 980mm
Ground Clearance: 87mm
Ground Speed: 8km/h
