Aisle Master AC Electric Aisle Master

Aisle Master AC Electric Aisle Master

Aisle Master AC Electric Aisle Master

AC Electric Aisle Master

Aisle Master
Multi-Directional

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

All AISLE MASTER’s electric powered models now benefit from AC technology as standard. This puts the Company firmly at The forefront of battery powered technology in the articulated sector. The main benefits of AC electric include enhanced performance levels, leading to increased pallet movements for greater productivity and improved acceleration and GradeABILITY. There are also fewer wearable parts resulting in low maintenance and reduced downtime.

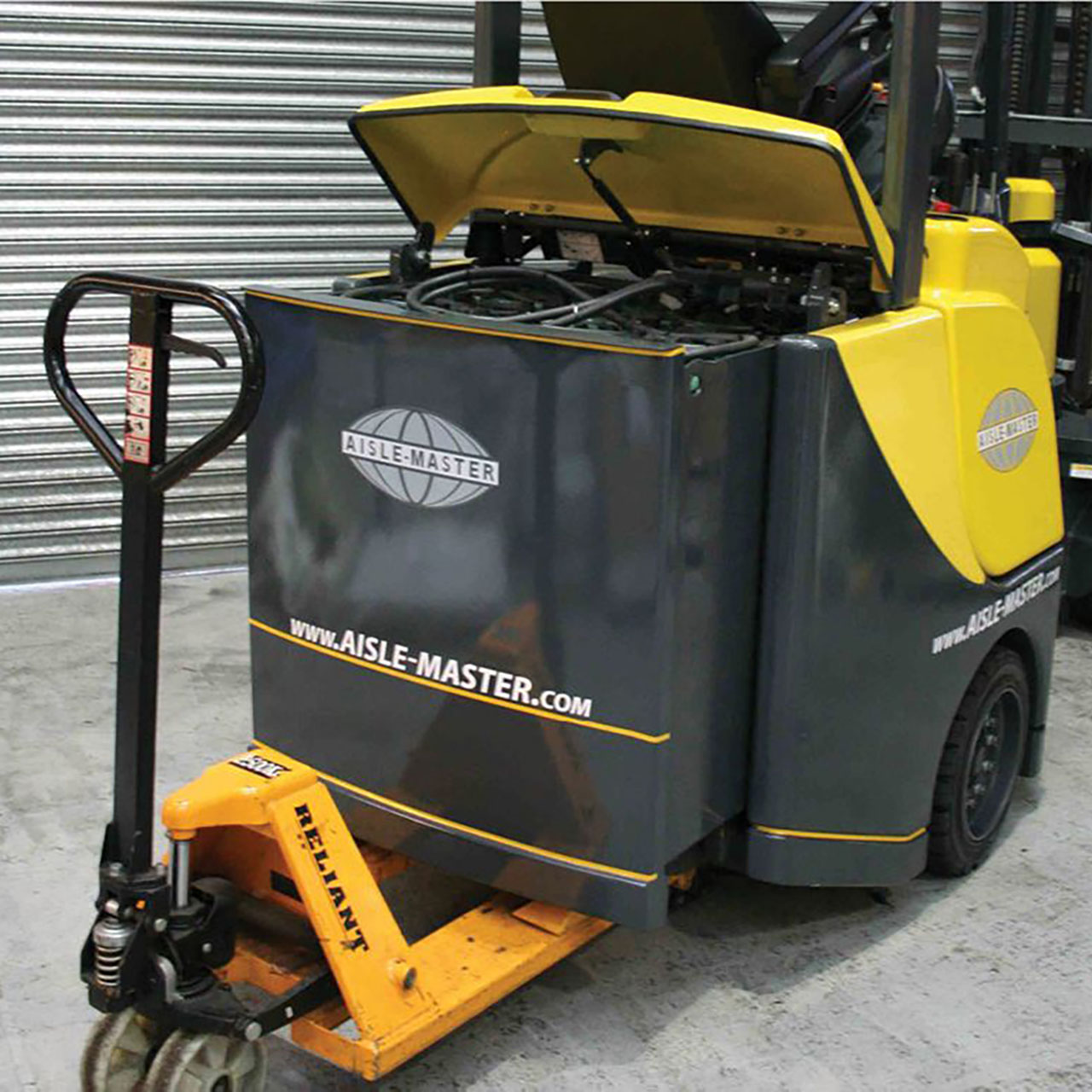

Quick & easy battery removal
Ergonomically designed operator’s cab
Reduced energy consumption
AC Traction motor
A Choice of 620/775/930 amp-hour Capacity batteries

Specifications

Truck weight (no battery): 11,350Ibs to 12,145Ibs
Gradeability (Unladen): 15%
Mast Range: 164” to 591”
Lift Speed (Laden): 78.75 ft/min
Standard Seat*: Grammer
Standard Colour*: Yellow and Grey
Gradeability (Laden): 12%
Battery Voltage: 48v
Front tire size*: 16 ¼” X 7”
Truck Weight (with battery): 14,100Ibs to 15,650Ibs
Battery Capacity Range: 620 Ah to 930 Ah
Rear tire size*: 18” X 7”/9”
Overhead Guard: 89.5”
Lift Speed (Unladen): 98.5 ft/min
Ground Speed*: 10mph
Capacity: 3,300Ibs to 6,600Ibs
