Specifications

Chassis: Tires: Rear: 5.70 x 8 pneumatic, Load Range C Front: 5.70 x 8 Load Range C, Pneumatic
Chassis: Suspension: Rear: Leaf springs Front: Leaf springs
Chassis: Powertrain: Type: Electric Power: 110/220V, 50/60Hz Transmission: Transaxle Assembly, Sealed Helical Gear Reduction Drive: Controller: Solid State Speed Control
Performance: Range: 20 miles (32 km)
Chassis: Battery: Type: Six 210 amp hr., 6 volt (lead acid) System Voltage: 36 Charger: Built-In
Dimensions: Weight: 1420 lbs (644 kg)
Interior: Seats: Driver: Seat Cushion, full back rest, black vinyl, electrical seat interlock switch Passenger: Seat Cushion, Back Rest, Black Vinyl
Performance: Passengers: 2
Interior: Instrumentation: Battery status indicator, forward/reverse selector, key switch, reverse buzzer and electric horn
Performance: Load Capacity: 1,000 lbs. (454 Kg)
Chassis: Frame Construction: Steel unitized body with heavy duty 14 gauge smooth plate
Chassis: Brakes: Rear: Two wheel mechanical drums Front: N/A Parking: Hand Operated
Performance: Speed: 12 mph (19.3 km/h)
Chassis: Steering: Manual, Automotive Style
Performance: Tow Capacity: 7,500 lbs. (3,400 kg)
Dimensions: Wheel Base: 50.5" (128.3cm)
Dimensions: Length: 107.95" (274 cm)
Dimensions: Outside Turning Radius: 110" (279.4cm)
Dimensions: Height: Less Cab: 47.5" (121 cm) With Cab: 71" (180 cm)
Dimensions: Deck: Width: 44" (111.8cm) Length: 63" (160.0cm) Height: 36" (91.4cm)
Dimensions: Hitch Height: 10.4" (26.3cm)
Dimensions: Width: 44" (112 cm)

Documents

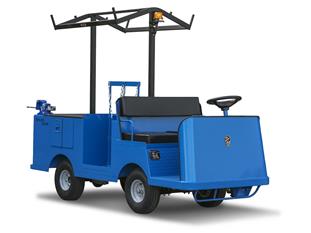

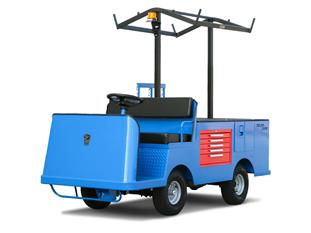

TaylorDunn MX-1600 Image Gallery
