Specifications

Performance: Load Capacity: 600 lbs. (272 kg.)
Chassis: Tires: Rear: 4.80 x 8 pneumatic Front: 4.80 x 8 Load Range B, Pneumatic
Performance: Range: 20 miles (32 km)
Dimensions: Height: Less Cab: 41.5" (105 cm) With Cab: N/A
Chassis: Frame Construction: Steel unitized body, heavy duty 16 gauge diamond plate
Dimensions: Length: 86.5" (219 cm)
Chassis: Suspension: Rear: Coil springs Front: Coil springs
Dimensions: Deck: Width: 30" (76.2cm) Length: 19" (48.3cm) Height: 24" (60.96cm)
Dimensions: Wheel Base: 53.5" (135.9cm)
Performance: Tow Capacity: 2,000 lbs. (909 kg)
Chassis: Battery: Type: Four 210 amp hr., 6 volt (lead acid) System Voltage: 24 Charger: Built-In
Chassis: Brakes: Rear: mechanical drum Front: N/A Parking: Foot
Dimensions: Width: 30" (76 cm)
Chassis: Powertrain: Type: Electric Power: 110/220V, 50/60Hz Transmission: Transaxle Assembly, Sealed Helical Gear Reduction Drive: Controller: Series
Dimensions: Weight: 701 lbs. (309 kg.)
Dimensions: Outside Turning Radius: 75" (190.5cm)
Performance: Passengers: 2
Performance: Speed: 9 mph (14.4 km/h)
Interior: Seats: Driver: Passenger:
Dimensions: Hitch Height: N/A
Interior: Instrumentation: Battery discharge indicator, forward/reverse selector, key switch, electric horn, DC/DC Converter
Chassis: Steering: Manual, Tiller, Front Fork

Documents

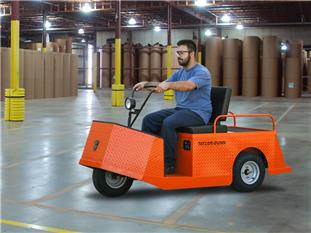

TaylorDunn SS-536 Image Gallery
