Rear Axle Ratio: 11.47:1 (Forward) 15.78:1 (Reverse)
Parking Brake: Self-Compensating, Single-Point Engagement
Bed Load Capacity: 250 lb (113 kg)
Lubrication: Pressurized Oil System
Gear Selection: Dash-Mounted Forward-Neutral-Reverse
Battery Charger: -
Transaxle: Differential w/ Helical Gears
Cooling System: Air Cooled
Wheel Base: 65.5 in (166 cm)
Body & Finish: Injection Molded TPO (Front) Steel Base Coat/Clear Coat (Rear)
Wheel Track: 38.0 in (97 cm) Front 38.5 in (98 cm) Rear
Vehicle Load Capacity: 800 lb (363 kg)
Electrical System: Starter/Generator. Solid State Regulator
Power Source: 4-Cycle, 24.5 ci (401cc)
Overall Height: 46.5 in (118 cm) (Top of steering wheel) 77.0 in (196cm) (Top of Sun Canopy)
Curb Weight: 896 lb (406 kg)
Service Brake: Rear Wheel Mechanical, Self-Adjusting Drum
Air Cleaner: Replaceable Dry Cartridge
Overall Length: 108.5 in (276 cm)
Weight w/o Batteries: 861 lb (391 kg)
Fuel Capacity: 6 Gallon (22.7 L) Tank
Valve Train: Single Cylinder OHV
Cargo Deck Material: 40.0 in (102 cm) W x 32.0 in (81 cm) L
Outside Clearance Circle: 19 ft ( 5.8 m)
Overall Width: 48.5 in (123 cm)
Suspension: Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear)
Cargo Deck Capacity: 32.0 in (81 cm)
Horsepower (KW): 13.5 hp (10.1 kW)
Standard Color: Patriot Blue
Seating Capacity: 4-Person
Key or Pedal Start: Pedal
Oil Filter: Spin-On
Frame: Welded Steel w/ DuraShield™ Powder Coat
Drive Train: Continuously Variable Transmission (CVT)
Ground Clearance: 4.5 in (11 cm)
Steering: Self-Compensating Rack & Pinion
Tires: 18 x 8.50 - 8 (4-Ply Rated)
Battery (Qty/Type): One, 12V Maintenance Free
Speed: 14 mph +/- 0.5 mph (22.5 kph +/- 0.8 kph)

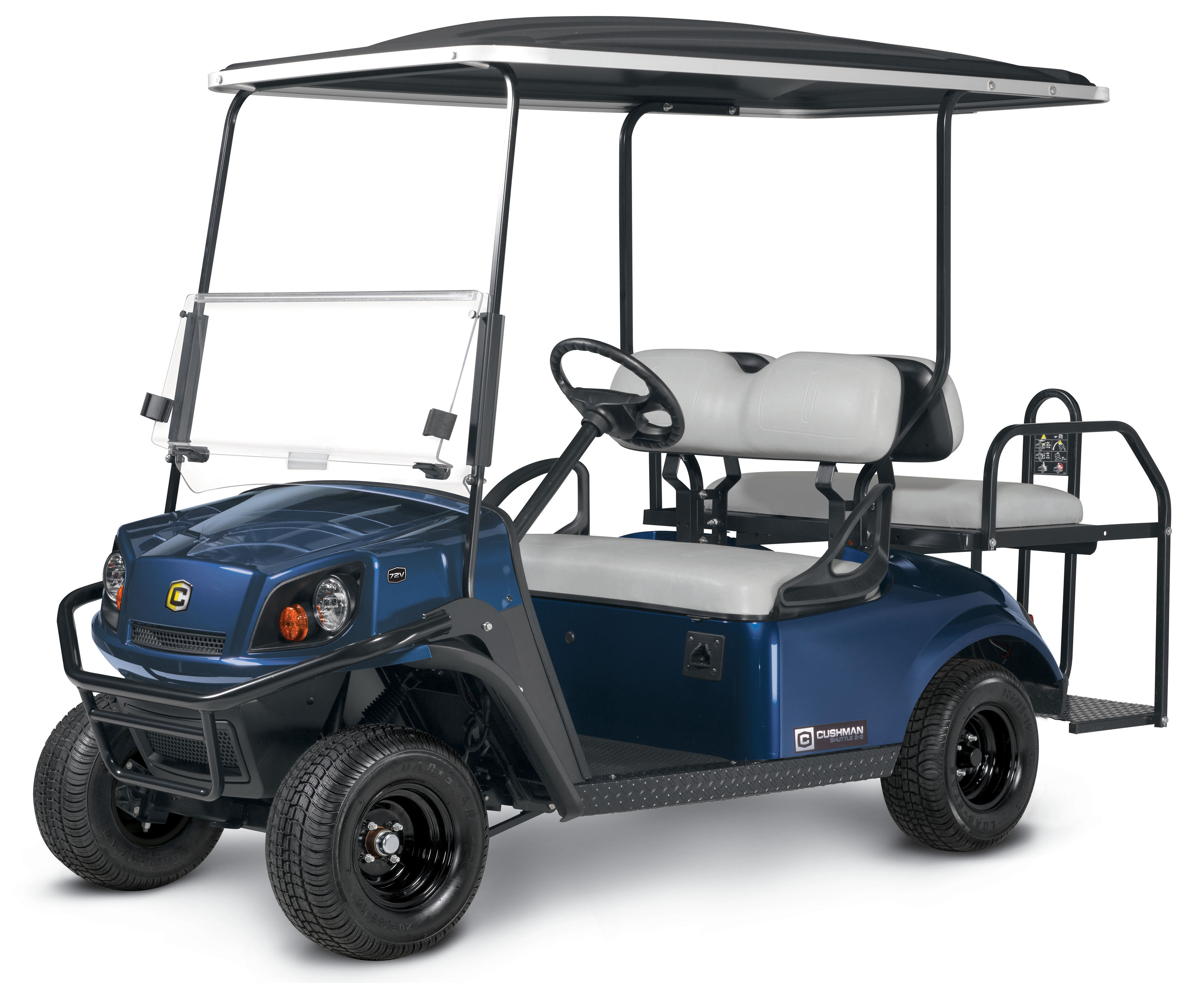

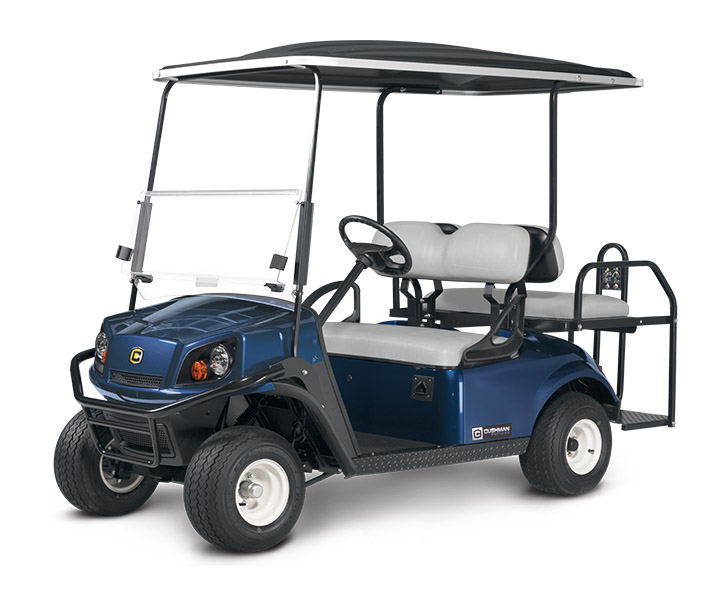

Cushman Shuttle 2+2 Image Gallery
