Key Features & Specs

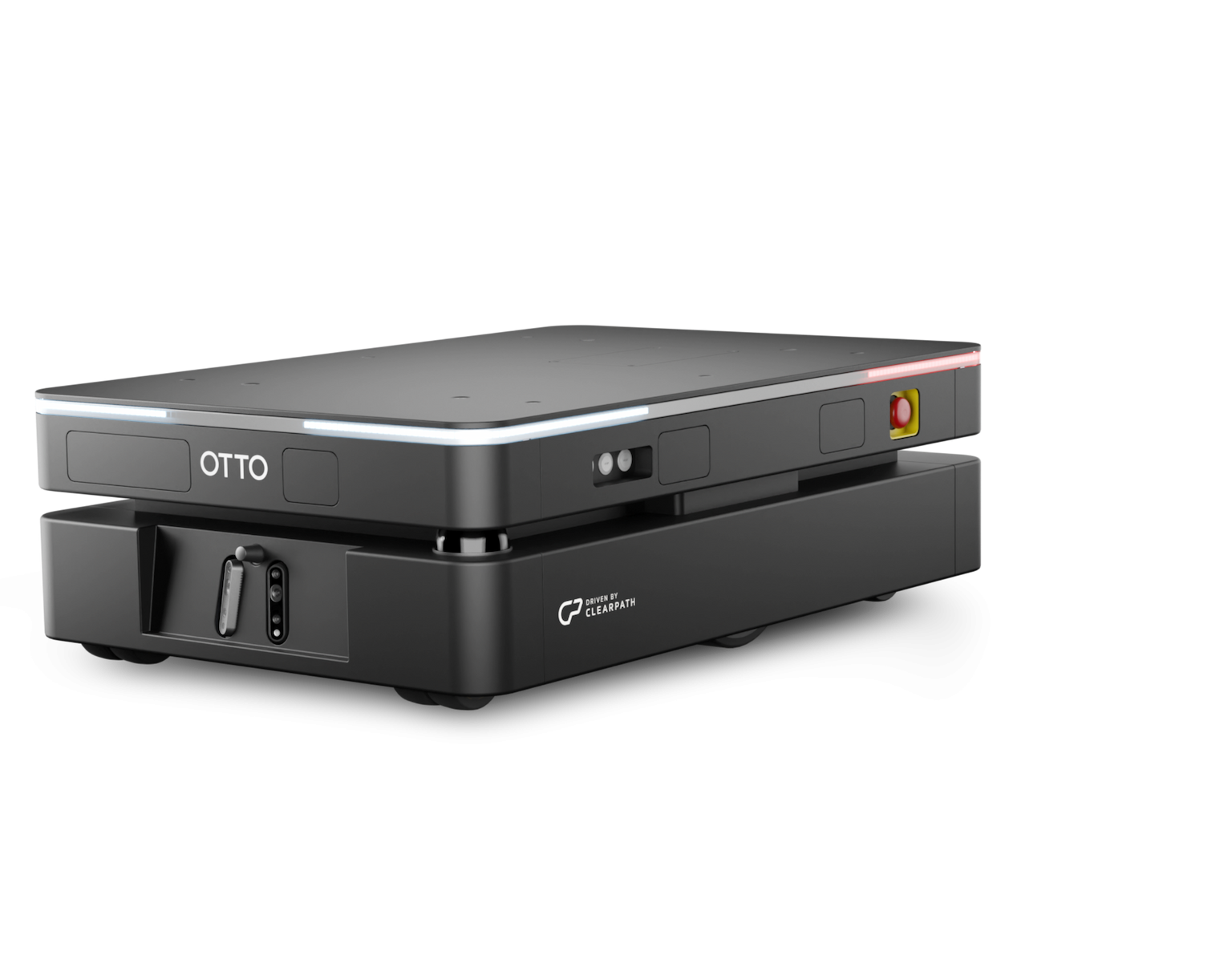

With the power to move loads up to 600 kg (1,322 lb) and the nimbleness to quickly maneuver in crowded environments, OTTO 600 unlocks critical new workflows to increase productivity.

  • Designed for quick setup, OTTO 600 can start delivering materials in a matter of minutes. Seamlessly scale from a single AMR to a multi-robot deployment and integrate with industrial workflows using the industry’s most powerful fleet management software — OTTO Fleet Manager.
  • OTTO 600 quickly and safely maneuvers around people and obstacles in the most dynamic environments. Steerable fields and efficient path planning enable OTTO 600 to maximize throughput without compromising on safety.
  • With a rugged, all-metal body, OTTO 600 offers superior ability to withstand dust and fluids with IP54 construction.
  • OTTO 600 offers all of the productivity benefits of a heavy-class AMR without compromising on agility. Seamlessly move more material in high-traffic areas and tight spaces.
  • Safety Interface: Dual-channel E-Stop breakout, 2 safety-rated GPIO
  • IP Classification: IP54
  • Max. Docking Speed: 0.3 m/sec (0.7mph)
  • Charge Time (10% to 90%): 30 min
  • Manual Control: Pendant-based manual control. Guided autonomous control available via OTTO software interface.
  • Humidity: 10-95% non-condensing
  • Turning Radius: Turn in place
  • Signal Interface: Ethernet, USB; CAN Bus, GPIO; Safety I/O
  • Adaptive Fieldsets: Intelligent PL-d rated switching fieldsets (patent-pending)
  • Computer: Fanless Embedded Computer
  • Max. Turning Speed: 0.8 rad/sec (45°/sec)
  • Sensors: 2x Forward facing 3D Perception Cameras, 2x LiDAR, 6-axis IMU
  • Floor Obstacle: 4 mm (5/32 in)
  • Mass: 250 kg (551lbs)
  • Battery Voltage: 48V
  • Max. Charge Rate: 42A
  • Battery Life: 6000 full charge cycles
  • Battery Capacity: 21Ah
  • Battery Charging Options: Autonomous Opportunity Charging (Default), Manual Charging
  • Temperature: 5 to 40° C
  • Suspension: Passive, Rocker
  • Max. Speed: 2.0 m/sec (4.5mph)
  • Power Interface: 24 VDC, 1A, regulated, unswitched; 48 VDC nominal, 3x16A, unregulated
  • Standards Compliance: Designed in accordance with present standards. Passed in accordance with CE.
  • Communication: 802.11 a/b/g/n/ac, 2.4 Ghz & 5 Ghz, 2x Long-range Omnidirectional Antennae
  • Ground Clearance: 30 mm (1 3/16 in)
  • Max Capacity: 600 kg (1320lbs); includes Payload and Attachment, if any
  • Dimensions: 1050 x 700 x 320 mm (41.3 x 27.6 x 12.6 in)
