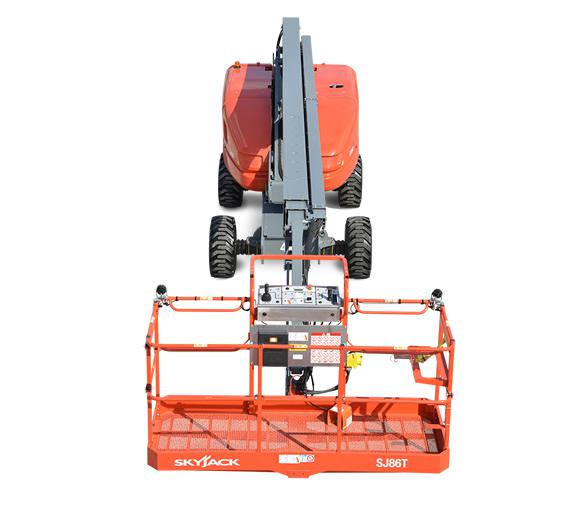

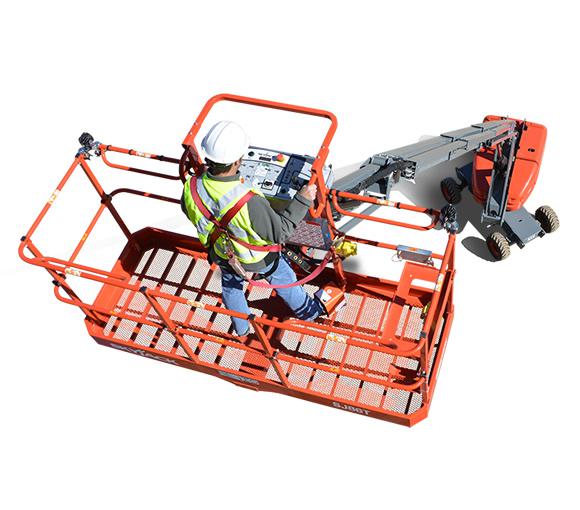

Skyjack SJ82/86 T

Skyjack SJ82/86 T

Skyjack SJ82/86 T

SJ82/86 T

Skyjack
Telescopic Boom Lift

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

All motion alarm
Drivable at full height
Tie down points
Operator horn
Operator controlled locking rear differential and limited slip front differential
Direction sensing drive and steer controls
110V AC outlet on platform with GFI
45% Gradeability
Swing up cowlings
Swing out engine tray
Tri-entry sliding mid rails
18 x 625 grip lug foam filled tires
Telematics ready
Wet disc SAHR brakes (front and rear axle)
Hourmeter
Dual capacity rating
Oscillating axle
Diesel engine
Axle based 4WD system
Color coded and numbered wiring
Proportional controls
Modular platform railing system
Relay based control system
360° continuous turret rotation

Features
Documents

+ Expand All
- Close All

Overall Specifications

SJ82 T

SJ86 T

Work Height

88’ (26.82 m)

92’ (28.04 m)

Platform Height

82’ (24.99 m)

86’ (26.21 m)

Horizontal Reach

72’6” (22.10 m)

76’10” (23.42 m)

Platform Size

36” x 96” (0.91 x 2.44 m)

36” x 96” (0.91 x 2.44 m)

Stowed Width

98” (2.49 m)

98” (2.49 m)

Tailswing

56” (1.42 m)

56” (1.42 m)

Stowed Height

118” (3.00 m)

118” (3.00 m)

Stowed Length

37’10” (11.53 m)

42’6” (12.95 m)

Ground Clearance

16” (0.41 m)

16” (0.41 m)

Wheelbase

132” (3.35 m)

132” (3.35 m)

Rotation

360° Continuous

360° Continuous

Platform Rotation

170°

170°

Jib Length

-

5’6” (1.68 m)

Jib Range +/-

-

+65° / -60°

Weight

37,150 lb (16,851 kg)

37,800 lbs (17,146 kg)

Gradeability

45%

45%

Turning Radius (Inside)

160” (4.06 m)

160” (4.06 m)

Turning Radius (Outside)

280” (7.11 m)

280” (7.11 m)

Axle Oscillation

4” (10.16 m)

4” (10.16 m)

Drive Speed (High speed)

3 mph (4.8 km/h)

3 mph (4.8 km/h)

Capacity

500 lbs (227 kg) / 1000 lbs / (454 kg)

500 lbs (227 kg) / 750 lbs / (341 kg)

Maximum # of Persons

2/3

2/3

Tire Type

Foam Filled

Foam Filled

Tire Size

18-625

18-625

Diesel Engine

74 HP

74 HP

Fuel Tank

45 gallon (170 L)

45 gallon (170 L)

Hydraulic Reservoir

60 gallon (227 L)

60 gallon (227 L)
