Papé Material Handling

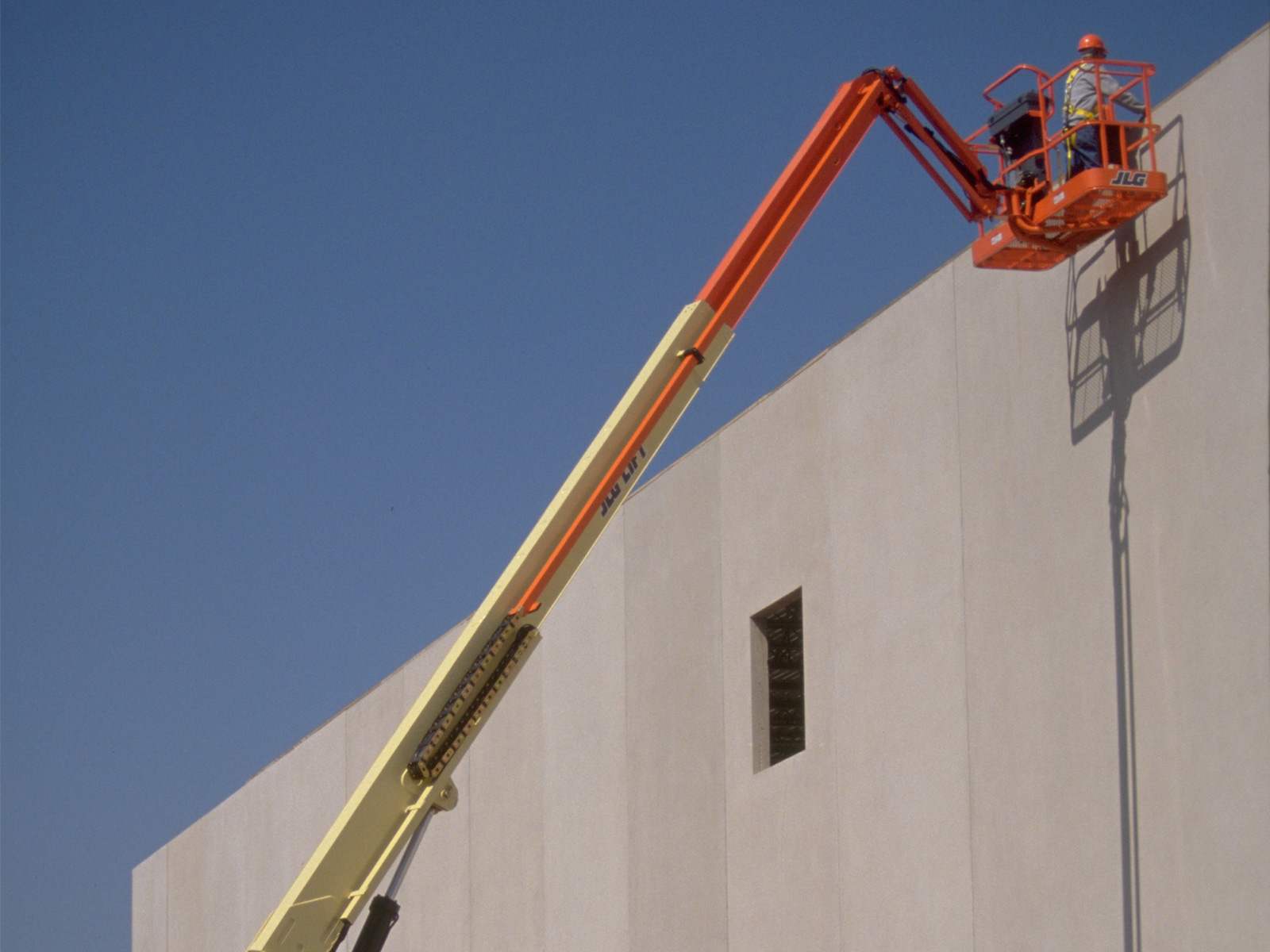

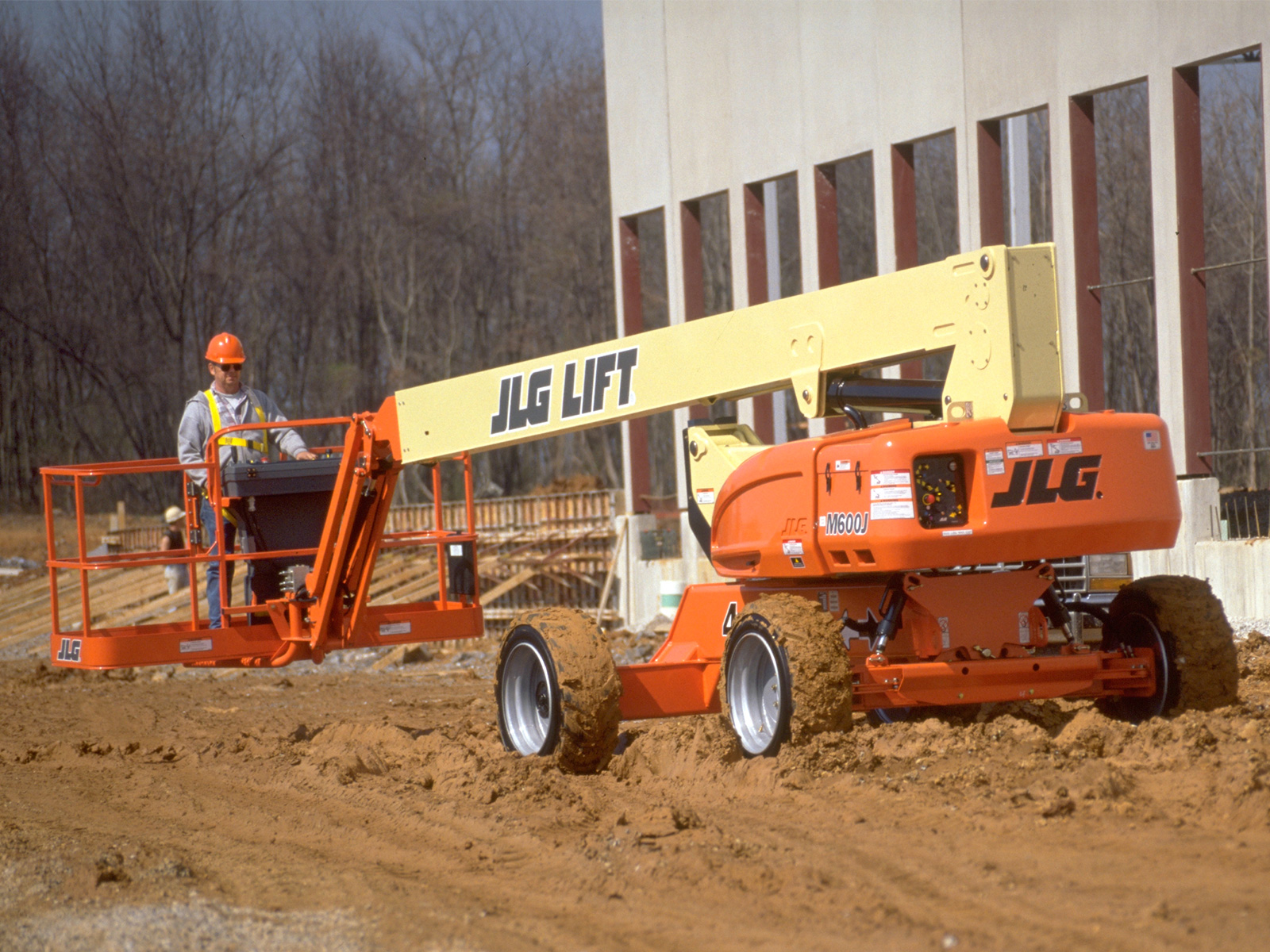

M600JP

JLG
Telescopic Boom Lift

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

Key Specs

Platform Height: 60 ft 4 in. / 18.39 m
Platform Capacity: 500 lb / 226.80 kg
Machine Width: 7 ft 11 in. / 2.41 m

Key Features

Highest electric boom in the industry
Environmentally friendly – zero emissions, reduced noise and standard non-marking tires
Maneuverability – move over uneven surfaces with Automatic Traction Control
Productivity – work longer with longer duty cycles

Environmentally friendly – zero emissions, reduced noise and standard non-marking tires
Highest electric boom in the industry
Maneuverability – move over uneven surfaces with Automatic Traction Control
Productivity – work longer with longer duty cycles

Specifications
Documents

Platform Dimension A: 2 ft 6 in. / 0.76 m
Horizontal Outreach: 44 ft 5 in. / 13.54 m
Platform Height: 60 ft 4 in. / 18.39 m
Horizontal Jib Rotation: 180 Degrees
Swing: 400 Degrees
Generator / Engine - Brand: Kubota
Machine Height: 8 ft 4 in. / 2.54 m
Jib - Range of articulation: 145 Degrees
Machine Weight: 16050 lb / 7280.16 kg
Electrical System: 48 Volts DC
Ground Clearance: 1 ft / 0.3 m
Capacity - Hydraulic Reservoir: 15 gal. / 56.78 L
Machine Length: 33 ft 4 in. / 10.16 m
Platform Dimension B: 6 ft / 1.83 m
Wheelbase: 9 ft / 2.74 m
Gradeability - 4WD: 45 %
Generator / Engine - Fuel Type: Diesel
Generator / Engine - Horsepower / Kilowatts: 6.7 hp / 5 kW
Machine Width: 7 ft 11 in. / 2.41 m
Drive Speed - Platform Lowered: 3 mph / 4.83 km/h
Tire Size: 36 x 14-22.5 Non-marking Pnuematic
Tailswing: 4 ft / 1.22 m
Turning Radius - Outside: 15 ft 4 in. / 4.67 m
Gradeability - 2WD: 30 %
Swing Type: Non-Continuous
Platform Capacity: 500 lb / 226.80 kg
Generator / Engine - Fuel Tank Capacity: 13 gal. / 49.21 L
Batteries: 8 x 6V, 415 amp-hr

Documents

Equipment Document
