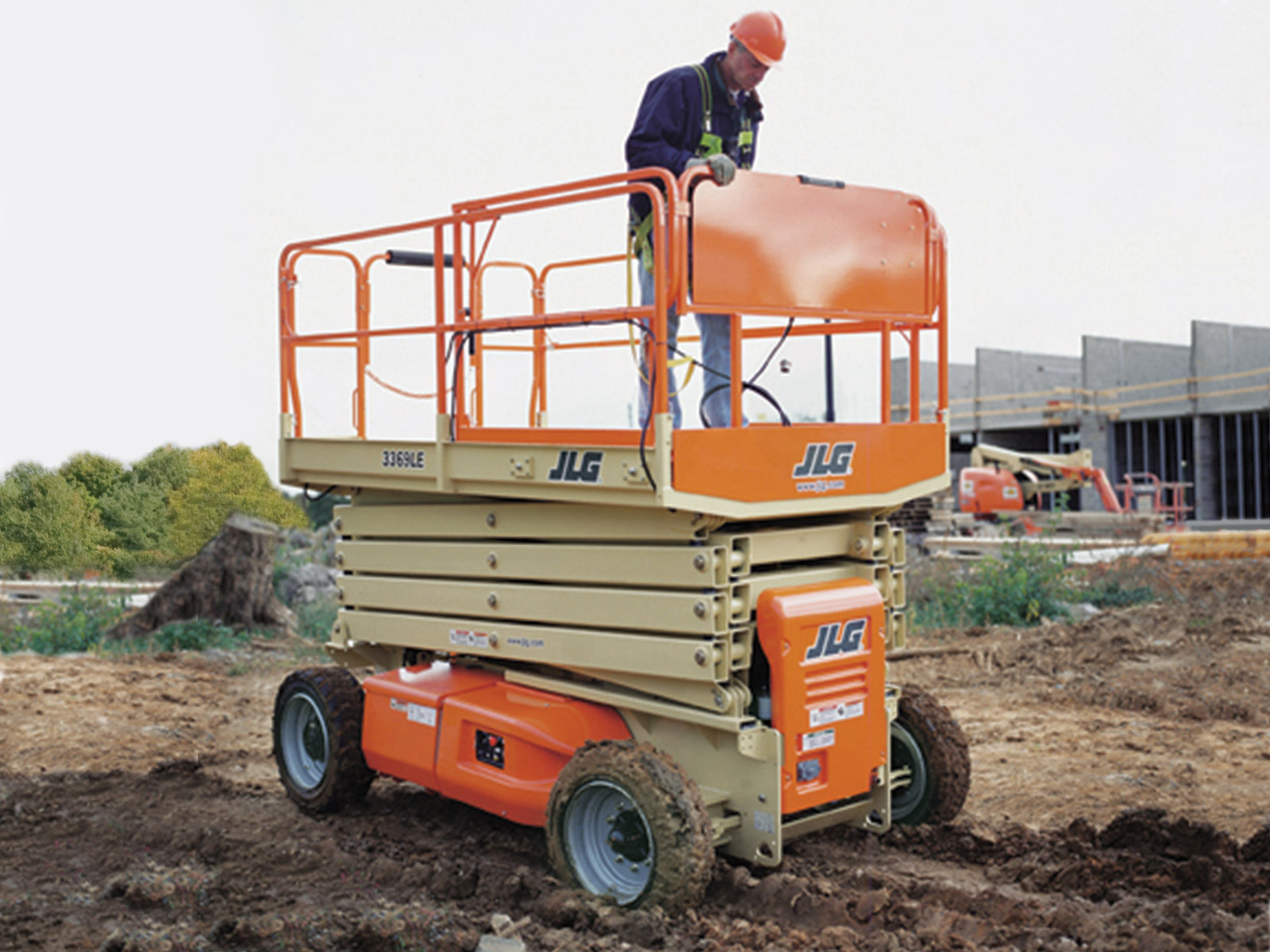

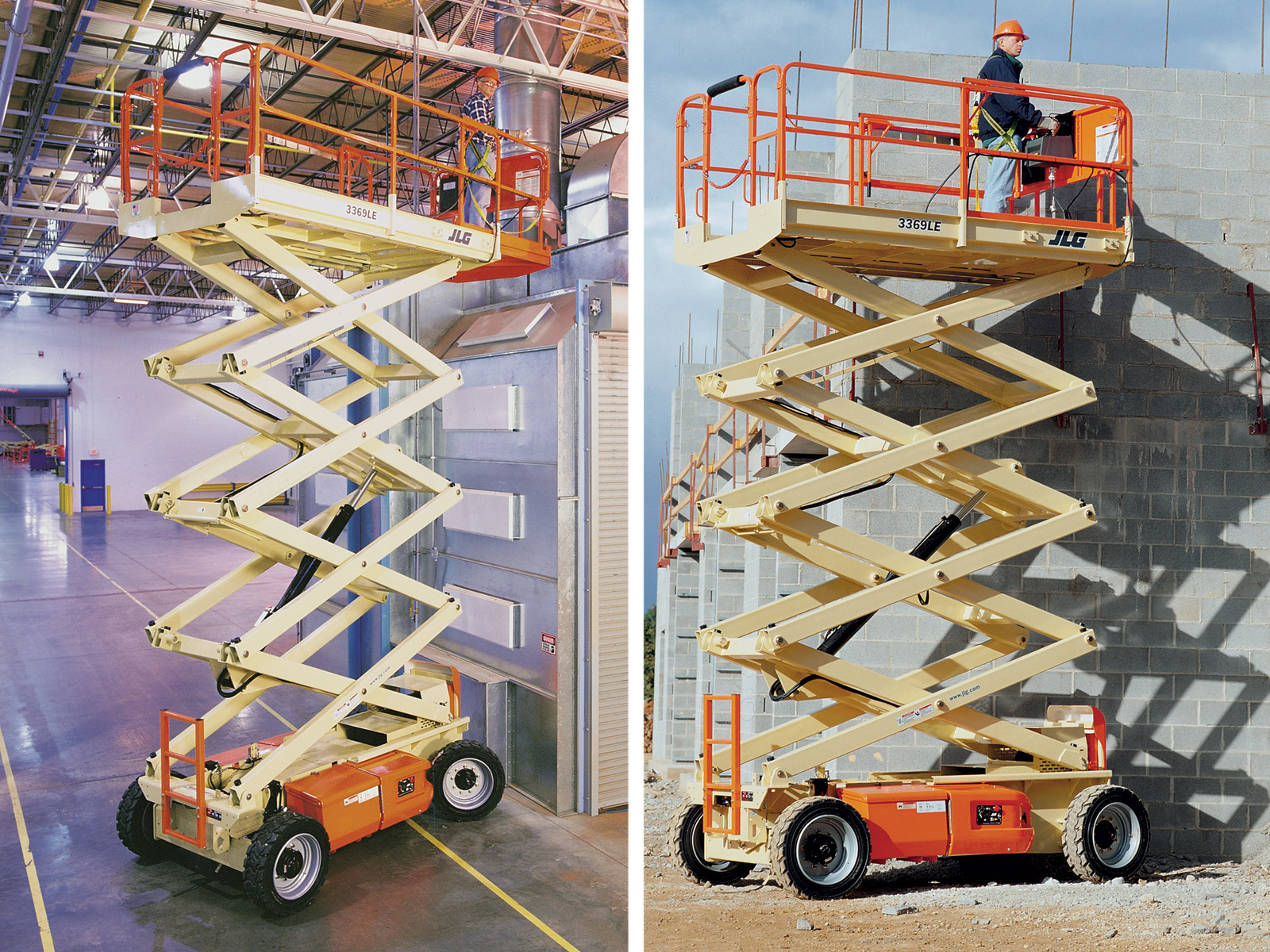

3369LE

  • JLG
  • Scissor Lifts

Find Your Nearest Location

Find Location
Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs

Key Specs

  • Platform Height: 33 ft / 10.06 m
  • Platform Capacity: 1000 lb / 453.59 kg
  • Machine Width: 5 ft 9 in. / 1.75 m

Key Features

  • Superior performance on or off slab
  • Rugged terrain tires take you anywhere you want to go
  • With optional hydraulic leveling jacks, uneven terrain is no problem
  • Double the duty cycle of other scissor lifts so you can stay on the job longer
  • Superior performance on or off slab
  • With optional hydraulic leveling jacks, uneven terrain is no problem
  • Rugged terrain tires take you anywhere you want to go
  • Double the duty cycle of other scissor lifts so you can stay on the job longer
  • Drive Speed - Platform Elevated: 0.4 mph / 0.64 km/h
  • Platform Capacity - Extension: 250 lb / 113.40 kg
  • Turning Radius - Outside: 15 ft 6 in. / 4.72 m
  • Machine Weight: 9760 lb / 4427.06 kg
  • Batteries: 8 x 6V, 370 amp-hour
  • Platform Railing Height: 3 ft 8 in. / 1.1 m
  • Machine Width: 5 ft 9 in. / 1.75 m
  • Ground Clearance: 8 in. / 0.2 m
  • Platform Dimension B: 5 ft 5 in. / 1.65 m
  • Working Height: 39 ft / 11.89 m
  • Platform Extension Length: 3 ft / 0.91 m
  • Machine Height: 9 ft / 2.74 m
  • Brakes: Spring Applied Hyd. Released Discs
  • Hydraulic Pump: Single Section Gear Pump
  • Maximum Drive Height: 33 ft / 10.06 m
  • Platform Capacity: 1000 lb / 453.59 kg
  • Wheelbase: 7 ft 7 in. / 2.3 m
  • Platform Dimension A: 9 ft 7 in. / 2.92 m
  • Tire Size: 240/55 x 17.5 Non-Marking
  • Gradeability - 4WD: 45 %
  • Maximum Ground Bearing Pressure: 57 psi / 3.99 Kg/cm2
  • Platform Height - Lowered: 5 ft 7 in. / 1.69 m
  • Machine Height - Rails Folded: 6 ft 5 in. / 1.96 m
  • Capacity - Hydraulic Reservoir: 8.5 gal. / 32.18 L
  • Lift Time: 38 sec.
  • Drive Speed - Platform Lowered: 3 mph / 4.83 km/h
  • Machine Length: 10 ft 4 in. / 3.15 m
  • Charger: 21 Amp Automatic SCR
  • Lower Time: 42 sec.
  • Gradeability - 2WD: 35 %
