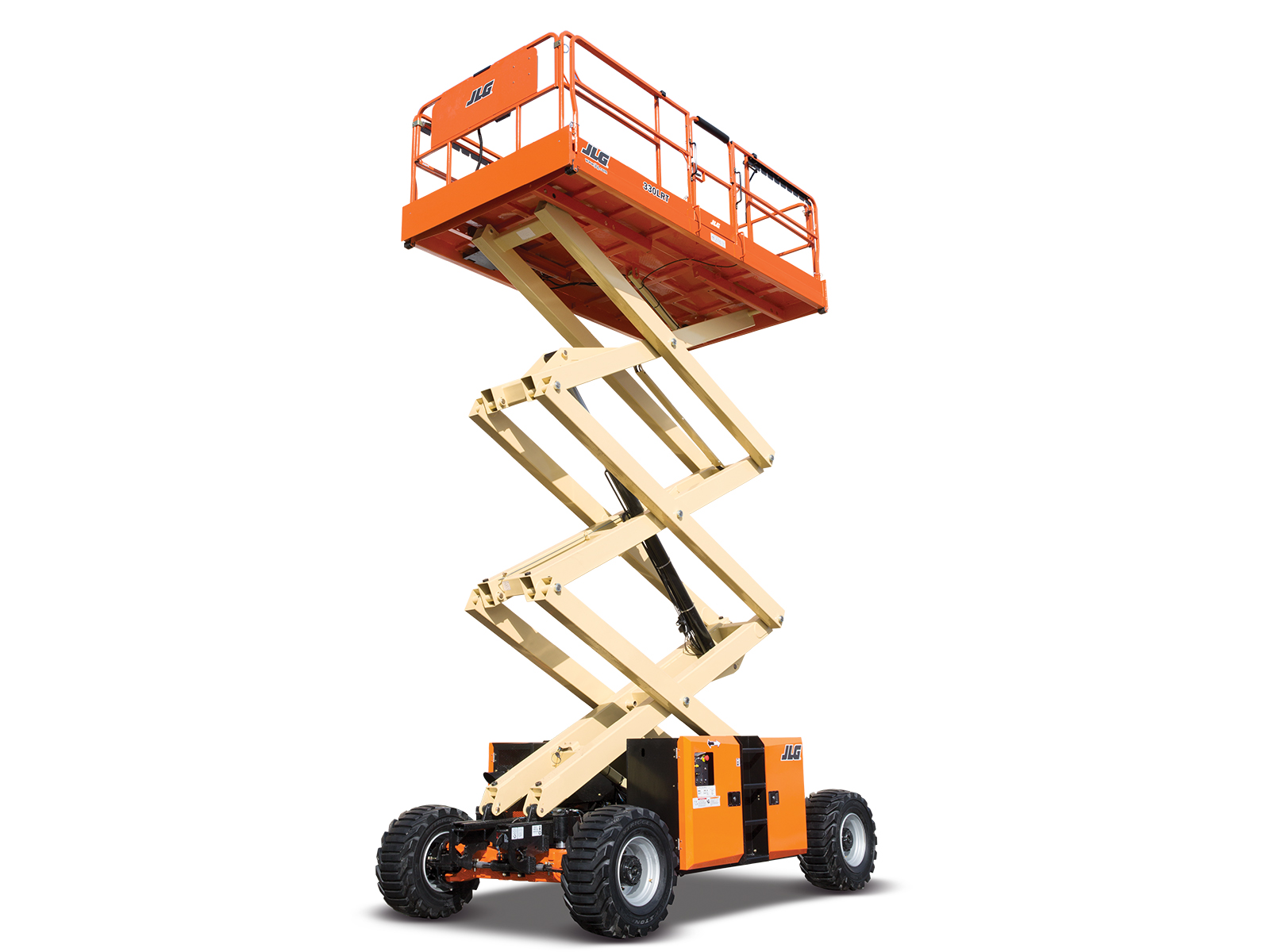

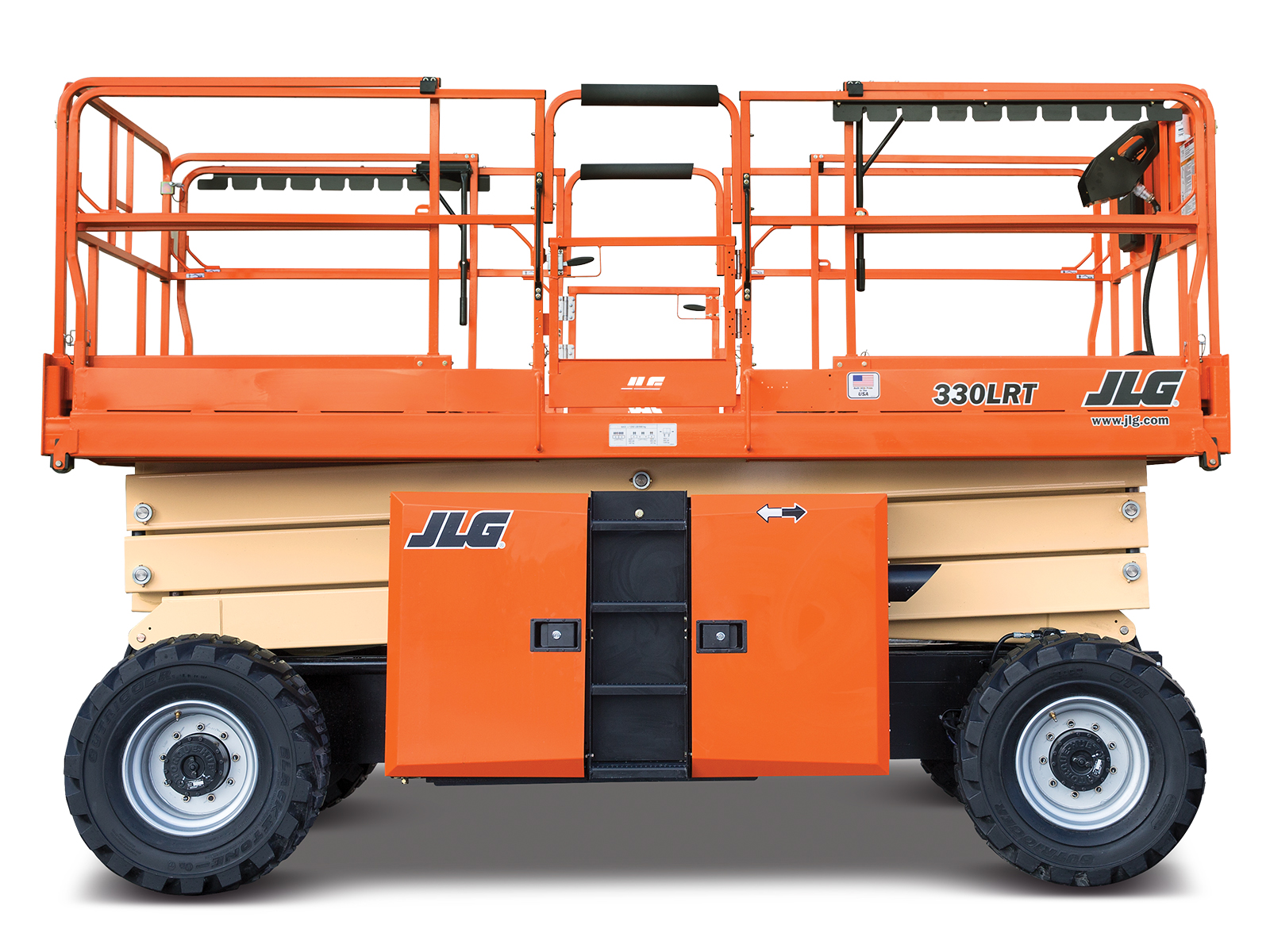

330LRT

JLG
Scissor Lifts

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

Key Specs

Platform Height: 33 ft / 10.06 m
Platform Capacity: 2250 lb / 1020.58 kg
Machine Width: 7 ft 9 in. / 2.36 m

Key Features

Enhanced Stability on Uneven Surfaces - Standard oscillating axle gives you better traction and grade climbing ability
Smoother Extension Deployment - New platform is designed to shed debris and allows for smoother extension deployment
Better Serviceability - Fully accessible hydraulic and engine compartments are easier to service

Better Serviceability - Fully accessible hydraulic and engine compartments are easier to service
Smoother Extension Deployment - New platform is designed to shed debris and allows for smoother extension deployment
Enhanced Stability on Uneven Surfaces - Standard oscillating axle gives you better traction and grade climbing ability

Specifications
Documents

Turning Radius - Outside: 19 ft 6 in. / 5.93 m
Platform Extension Length: 4 ft / 1.22 m
Machine Height - Rails Folded: 6 ft 1 in. / 1.85 m
Tire Size: 33 X 15.5 Superwide
Platform Capacity - Extension: 500 lb / 226.80 kg
Platform Railing Height: 3 ft 8 in. / 1.1 m
Wheelbase: 9 ft 9 in. / 2.97 m
Working Height: 39 ft / 11.89 m
Platform Capacity: 2250 lb / 1020.58 kg
Capacity - Fuel Tank: 30 gal. / 113.56 L
Ground Clearance: 1 ft 2 in. / 0.35 m
Platform Dimension B: 12 ft 10 in. / 3.92 m
Lift Time: 35 sec.
Platform Height - Lowered: 5 ft 4 in. / 1.62 m
Lower Time: 37 sec.
Drive Speed - Platform Elevated: 0.5 mph / 0.80 km/h
Machine Length: 12 ft 10 in. / 3.91 m
Turning Radius - Inside: 8 ft 11 in. / 2.71 m
Machine Height: 9 ft 1 in. / 2.77 m
Machine Width: 7 ft 9 in. / 2.36 m
Engine Type - Diesel: Kubota 1.26L, 24.8HP
Capacity - Hydraulic Reservoir: 32 gal. / 121.13 L
Gradeability: 45 %
Machine Weight: 11820 lb / 5361.46 kg
Platform Height: 33 ft / 10.06 m
Drive Speed - Platform Lowered: 3.5 mph / 5.63 km/h
Platform Dimension A: 6 ft 7 in. / 2.01 m
