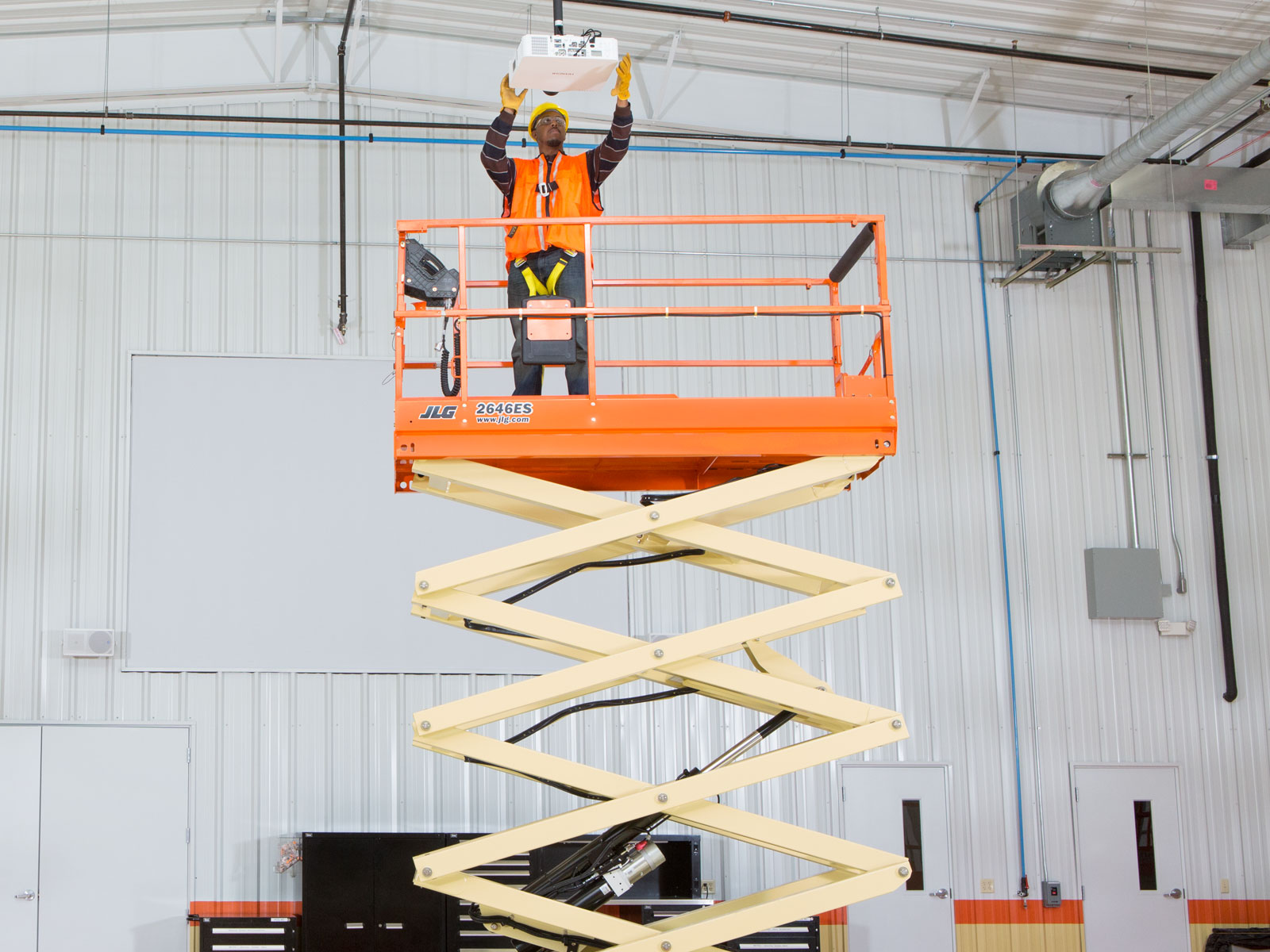

2646ES

  • JLG
  • Scissor Lifts

Find Your Nearest Location

Find Location
Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs

Key Specs

  • Platform Height: 26 ft / 7.92 m
  • Machine Width: 3 ft 10 in. / 1.17 m

Key Features

  • Quieter, cleaner operation for a variety of environments
  • Electric drive and integrated components with only two hydraulic hoses and four hydraulic fittings on the entire machine will keep you on the job longer and reduce your operating costs by reducing chances for leaks and service calls
  • Tight turning radius for great maneuverability
  • Delivers 200% more battery life*
    *Compared to a competitive model under similar test conditions. Actual results may vary.
  • Electric drive and integrated components with only two hydraulic hoses and four hydraulic fittings on the entire machine will keep you on the job longer and reduce your operating costs by reducing chances for leaks and service calls
  • Delivers 200% more battery life*  *Compared to a competitive model under similar test conditions. Actual results may vary.
  • Quieter, cleaner operation for a variety of environments
  • Tight turning radius for great maneuverability
  • Platform Capacity - Extension: 250 lb / 113.40 kg
  • Machine Length: 8 ft 3 in. / 2.5 m
  • Charger: 20 amp automatic
  • Platform Extension Length: 4 ft 2 in. / 1.27 m
  • Working Height: 32 ft / 9.75 m
  • Platform Height - Lowered: 4 ft 2 in. / 1.26 m
  • Maximum Ground Bearing Pressure: 87 psi / 6.09 Kg/cm2
  • Platform Railing Height: 3 ft 7 in. / 1.1 m
  • Lift Time: 41 sec.
  • Machine Width: 3 ft 10 in. / 1.17 m
  • Ground Clearance: 5 in. / 0.13 m
  • Brakes: Electric, Friction
  • Machine Height: 7 ft 9 in. / 2.36 m
  • Turning Radius - Outside: 7 ft 11 in. / 2.42 m
  • Platform Height: 26 ft / 7.92 m
  • Platform Dimension B: 3 ft 8 in. / 1.12 m
  • Machine Weight: 4975 lb / 2256.62 kg
  • Wheelbase: 6 ft 10 in. / 2.08 m
  • Machine Height - Rails Folded: 6 ft 6 in. / 1.97 m
  • Drive Speed - Platform Lowered: 2.5 mph / 4.02 km/h
  • Platform Capacity - Unrestricted: 1000 lb / 453.59 kg
  • Drive Speed - Platform Elevated: 0.5 mph / 0.80 km/h
  • Hydraulic Pump: Fixed Displacement Gear
  • Batteries: 4 x 6V, 220 amp-hr
  • Gradeability: 25 %
  • Capacity - Hydraulic Reservoir: 1.7 gal. / 6.44 L
  • Lower Time: 50 sec.
  • Turning Radius - Inside: 0 ft / 0 m
  • Tire Size: 16 x 5 in
