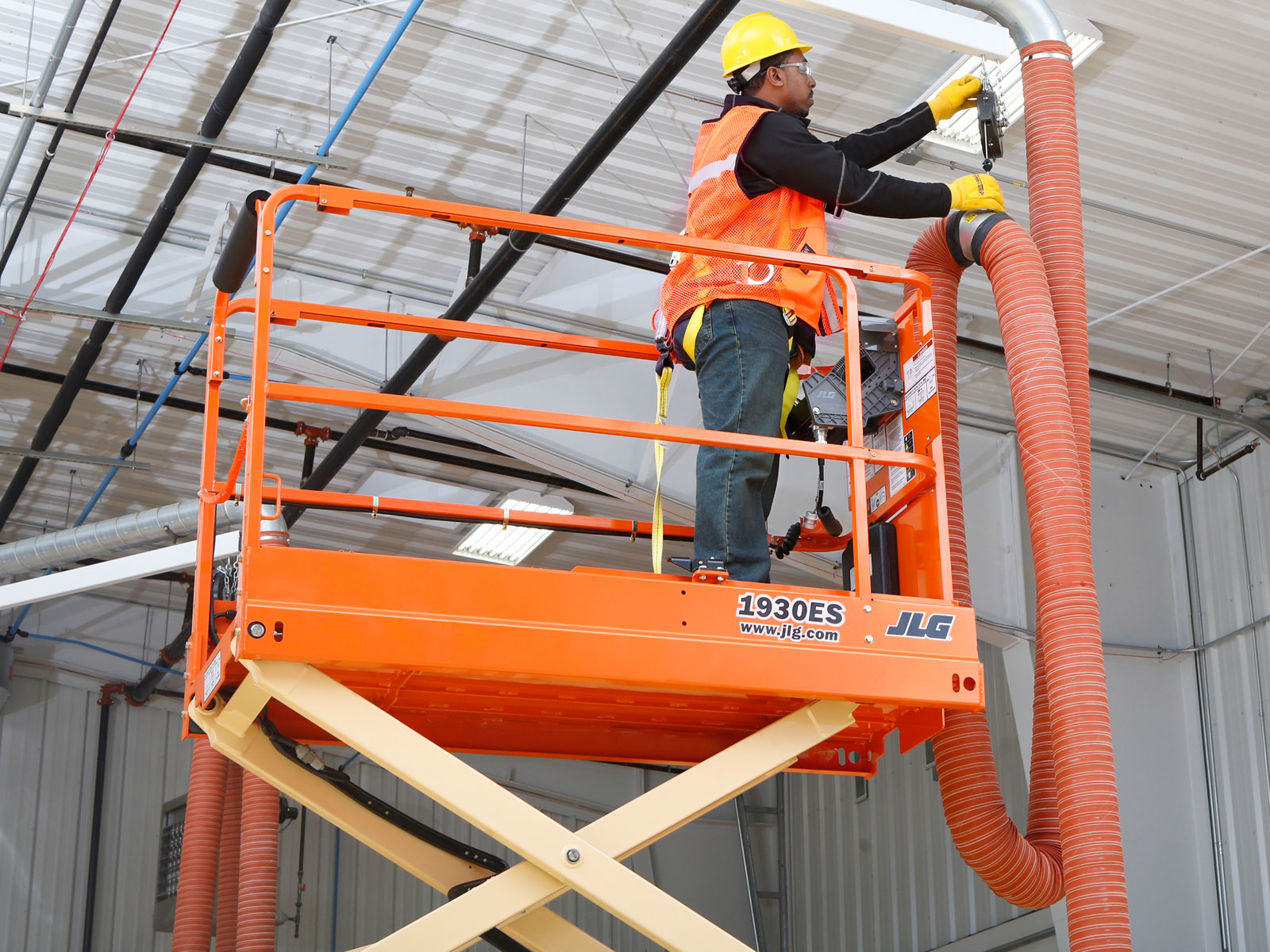

1930ES

  • JLG
  • Scissor Lifts

Find Your Nearest Location

Find Location
Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs

Key Specs

  • Platform Height: 18 ft 9 in. / 5.72 m
  • Machine Width: 2 ft 6 in. / 0.76 m

Key Features

  • Quieter, cleaner operation for a variety of environments
  • Electric drive and integrated components with only two hydraulic hoses and four hydraulic fittings on the entire machine will keep you on the job longer and reduce your operating costs by reducing chances for leaks and service calls
  • Narrow width fits through most standard doorways and tight aisles
  • Delivers 200% more battery life*
    *Compared to a competitive model under similar test conditions. Actual results may vary.
  • Quieter, cleaner operation for a variety of environments
  • Narrow width fits through most standard doorways and tight aisles
  • Delivers 200% more battery life* *Compared to a competitive model under similar test conditions. Actual results may vary.
  • Electric drive and integrated components with only two hydraulic hoses and four hydraulic fittings on the entire machine will keep you on the job longer and reduce your operating costs by reducing chances for leaks and service calls
  • Platform Dimension A: 2 ft 6 in. / 0.76 m
  • Lower Time: 30 sec.
  • Platform Height: 18 ft 9 in. / 5.72 m
  • Platform Dimension B: 6 ft 2 in. / 1.87 m
  • Platform Capacity - Extension: 250 lb / 113.40 kg
  • Ground Clearance: 4 in. / 0.09 m
  • Platform Railing Height: 3 ft 7 in. / 1.1 m
  • Capacity - Hydraulic Reservoir: 1.3 gal. / 4.73 L
  • Tire Size: 12.5 x 4 in
  • Platform Height - Lowered: 2 ft 10 in. / 0.86 m
  • Machine Weight: 2710 lb / 1229.24 kg
  • Brakes: Electric, Friction
  • Machine Height: 6 ft 6 in. / 1.98 m
  • Wheelbase: 5 ft 3 in. / 1.6 m
  • Batteries: 4 x 6V, 220 amp-hour
  • Platform Extension Length: 3 ft / 0.9 m
  • Turning Radius - Inside: 0 in. / 0 m
  • Working Height: 24 ft 9 in. / 7.54 m
  • Turning Radius - Outside: 5 ft 9 in. / 1.75 m
  • Drive Speed - Platform Elevated: 0.5 mph / 0.80 km/h
  • Hydraulic Pump: Fixed Displacement Gear
  • Drive Speed - Platform Lowered: 3 mph / 4.83 km/h
  • Platform Capacity - Unrestricted: 500 lb / 226.80 kg
  • Gradeability: 25 %
  • Charger: 20 amp automatic (120V/240V – 50/60Hz)
  • Drive System: 24V Electric
  • Lift Time: 26 sec.
  • Maximum Ground Bearing Pressure: 109 psi / 7.63 Kg/cm2
  • Maximum Lift Height: 18.8 ft / 5.72 m
