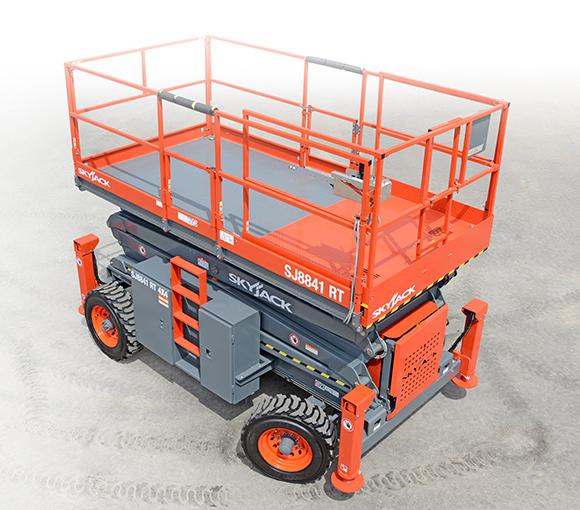

SJ8831/41 RT

  • Skyjack
  • Rough Terrain Scissor Lifts

Find Your Nearest Location

Find Location
Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs
  • Tie down/lift lugs
  • Dual fuel (gas/propane) or diesel engine
  • Lanyard attachment points
  • Drivable at full height
  • Half height spring hinged gates on both sides
  • Disc brake system on rear axle
  • Axle based 4WD system
  • Color coded and numbered wiring system
  • 30% Gradeability
  • 110V AC outlet on platform with GFI
  • Telematics ready
  • All motion audible alarm
  • Operator horn
  • Flashing light
  • Grip Lug, air-filled tires
  • Fold down hinged railing system
  • Relay based control system
  • Tilt alarm with drive & lift cut-out
  • “Detroit Locker” type rear differential and limited slip front differential
  • Self-centering scissor design allows extension decks to be added to both ends
  • 4’ (1.22 m) Roll out extension deck
  • + Expand All
  • - Close All
  • Overall Specifications
    SJ8831 RT
    SJ8841 RT
    Work Height
    37’ (11.27 m)
    47’ (14.32 m)
    Raised Platform Height
    31’ (9.45 m)
    41’ (12.50 m)
    Lowered Platform Height
    59” (1.50 m)
    69” (1.75 m)
    Overall Width
    87” (2.21 m)
    87” (2.21 m)
    Overall Length
    139” (3.53 m)
    139” (3.53 m)
    Stowed Height (Rails Up)
    105” (2.67 m)
    114” (2.90 m)
    Stowed Height (Rails Down)
    78.5” (1.99 m)
    87.5” (2.22 m)
    Platform Width (Inside Dimension)
    67” (1.70 m)
    67” (1.70 m)
    Platform Length (Inside Dimension)
    134” (3.40 m)
    134” (3.40 m)
    Extension Deck
    4’ (1.22 m)
    4’ (1.22 m)
    Ground Clearance
    8” (0.20 m)
    8” (0.20 m)
    Wheelbase
    89.3” (2.27 m)
    89.3” (2.27 m)
    Weight
    9,980 lbs (4,527 kg)
    10,880 lbs (4,935 kg)
    Gradeability
    30%
    30%
    Turning Radius (Inside)
    158” (4.01 m)
    158” (4.01 m)
    Turning Radius (Outside)
    248” (6.30 m)
    248” (6.30 m)
    Lift Time (With Rated Load)
    58 sec
    56 sec
    Lower Time (With Rated Load)
    44 sec
    53 sec
    Drive Speed (Stowed)
    3.5 mph (5.6 km/h)
    3.5 mph (5.6 km/h)
    Drive Speed (Raised)
    0.6 mph (1 km/h)
    0.6 mph (1 km/h)
    Maximum Drive Height
    Full Height
    Full Height
    Capacity (Overall)
    2,000 lbs (907 kg)
    1,500 lbs (680 kg)
    Local Floor Load (With Rated Load)
    135 psi (931 kPa)
    136 psi (938 kPa)
    Overall Floor Load (With Rated Load)
    161 psf (8 kPa)
    163 psf (8 kPa)
    Maximum # of Persons
    6
    5
    Tire Type
    Air Filled
    Air Filled
    Tire Size
    10 x 16.5
    10 x 16.5
