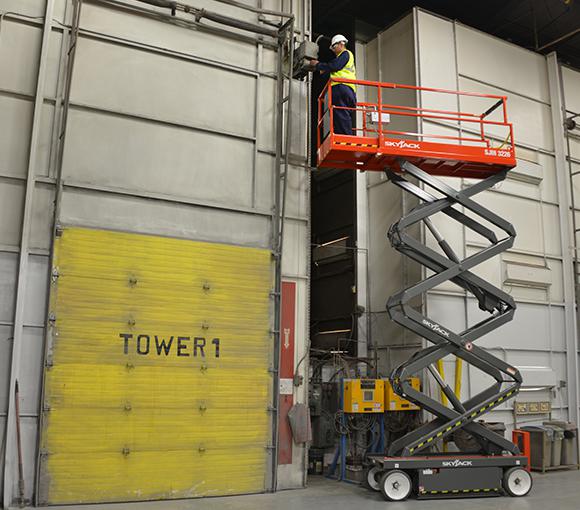

SJIII 3220/26

  • Skyjack
  • DC Electric Scissors

Find Your Nearest Location

Find Location
Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs
  • Color coded and numbered wiring system
  • Operator horn
  • Dual holding brakes
  • Lanyard attachment points
  • Telematics ready
  • Pothole protection system
  • 110V AC outlet on platform with GFI
  • All motion audible alarm
  • 28 mph wind rating (12.5 m/s)
  • Up to 30% Gradeability
  • DC Motor Controller
  • Relay based control system
  • Drivable at full height
  • Low voltage battery protection
  • Hinged railing system (3226)
  • Forklift pockets and tie down/lift lugs
  • 24V DC power source
  • Variable speed, rear two wheel hydraulic drive
  • Solid rubber, non-marking tires
  • Proportional controls for drive & lift functions
  • 3’ (0.91 m) Roll out extension deck
  • Tilt alarm with drive & lift cut-out
  • + Expand All
  • - Close All
  • Overall Specifications
    SJIII 3220
    SJIII 3226
    Work Height
    26’ (7.92 m)
    32’ (9.75 m)
    Raised Platform Height
    20’ (6.10 m)
    26’ (7.92 m)
    Lowered Platform Height
    38” (0.97 m)
    45” (1.14 m)
    Overall Width
    32” (0.81 m)
    32” (0.81 m)
    Overall Length
    91.5” (2.32 m)
    91.5” (2.32 m)
    Stowed Height (Rails Up)
    77.5” (1.97 m)
    84.7” (2.15 m)
    Stowed Height (Rails Down)
    OPT 63.5” (1.61 m)
    70.6” (1.79 m)
    Platform Width (Inside Dimension)
    28” (0.71 m)
    28” (0.71 m)
    Platform Length (Inside Dimension)
    84” (2.13 m)
    84” (2.13 m)
    Extension Deck (Roll Out)
    3’ (0.91 m)
    3’ (0.91 m)
    Ground Clearance (Stowed)
    3.5” (8.89 cm)
    3.5” (8.89 cm)
    Ground Clearance (raised)
    0.75” (1.90 cm)
    0.75” (1.90 cm)
    Wheelbase
    69” (1.75 m)
    69” (1.75 m)
    Weight
    3,510 lbs (1,592 kg)
    4,135 lbs (1,876 kg)
    Gradeability
    30%
    30%
    Turning Radius (Inside)
    50” (1.27 m)
    50” (1.27 m)
    Turning Radius (Outside)
    108” (2.74 m)
    108” (2.74 m)
    Lift Time (With Rated Load)
    33 sec
    56 sec
    Lower Time (With Rated Load)
    29 sec
    42 sec
    Drive Speed (Stowed)
    2 mph (3.2 km/h)
    2.4 mph (3.9 km/h)
    Drive Speed (Raised)
    0.7 mph (1.1 km/h)
    0.7 mph (1.1 km/h)
    Maximum Drive Height
    Full Height
    Full Height
    Capacity (Overall)
    900 lbs (408 kg)
    500 lbs (227 kg)
    Distributed Capacity (Main Platform)
    600 lbs (159 kg)
    250 lbs (113 kg)
    Distributed Capacity (Extension Deck)
    300 lbs (136 kg)
    250 lbs (113 kg)
    Local Floor Load (With Rated Load)
    130 psi (897 kPa)
    130 psi (897 kPa)
    Overall Floor Load (With Rated Load)
    245 psf (12 kPa)
    235 psf (12 kPa)
    Maximum # of Persons
    2
    2
    Wind Rating
    28 mph (12.5 m/s)
    28 mph (12.5 m/s)
    Tire Type
    Solid, N/M
    Solid, N/M
    Tire Size
    16 x 5 x 12
    16 x 5 x 12
