Z-62/40

  • Genie
  • Articulated Boom Lift

Find Your Nearest Location

Find Location
Your Preferred Store
Change location Change location
Request Quote

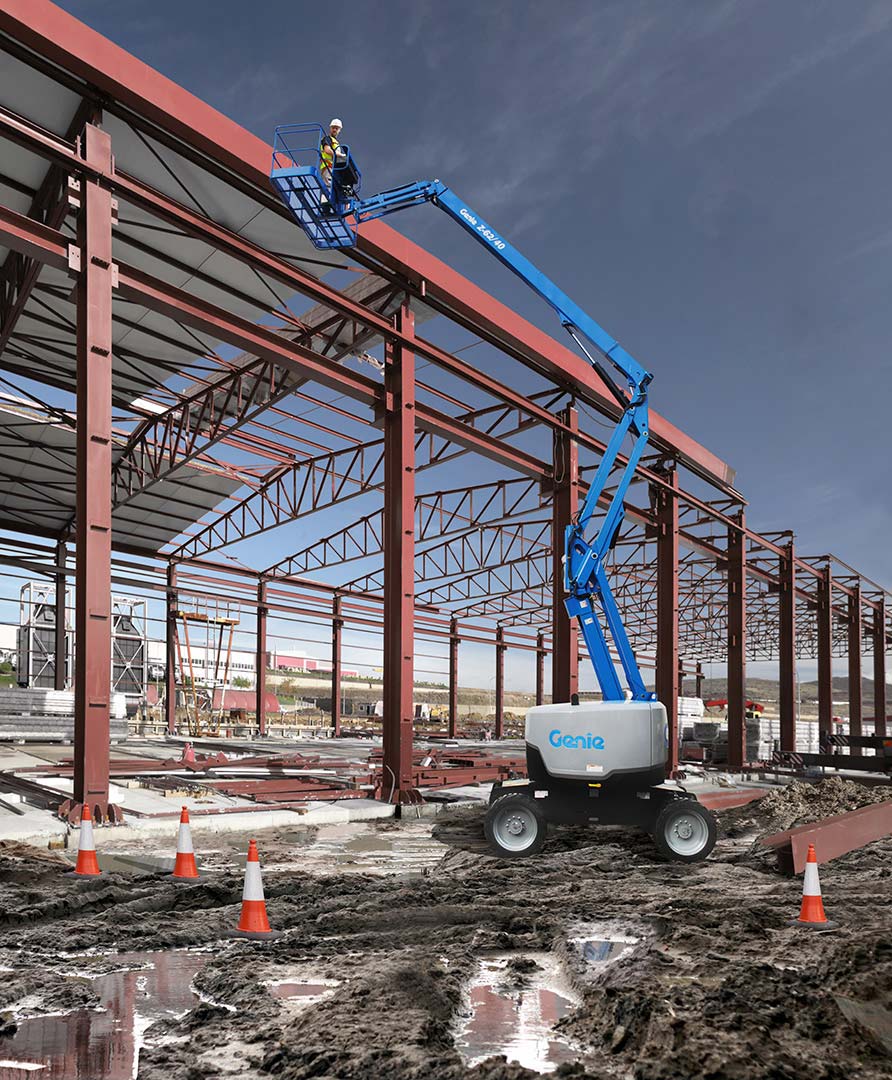

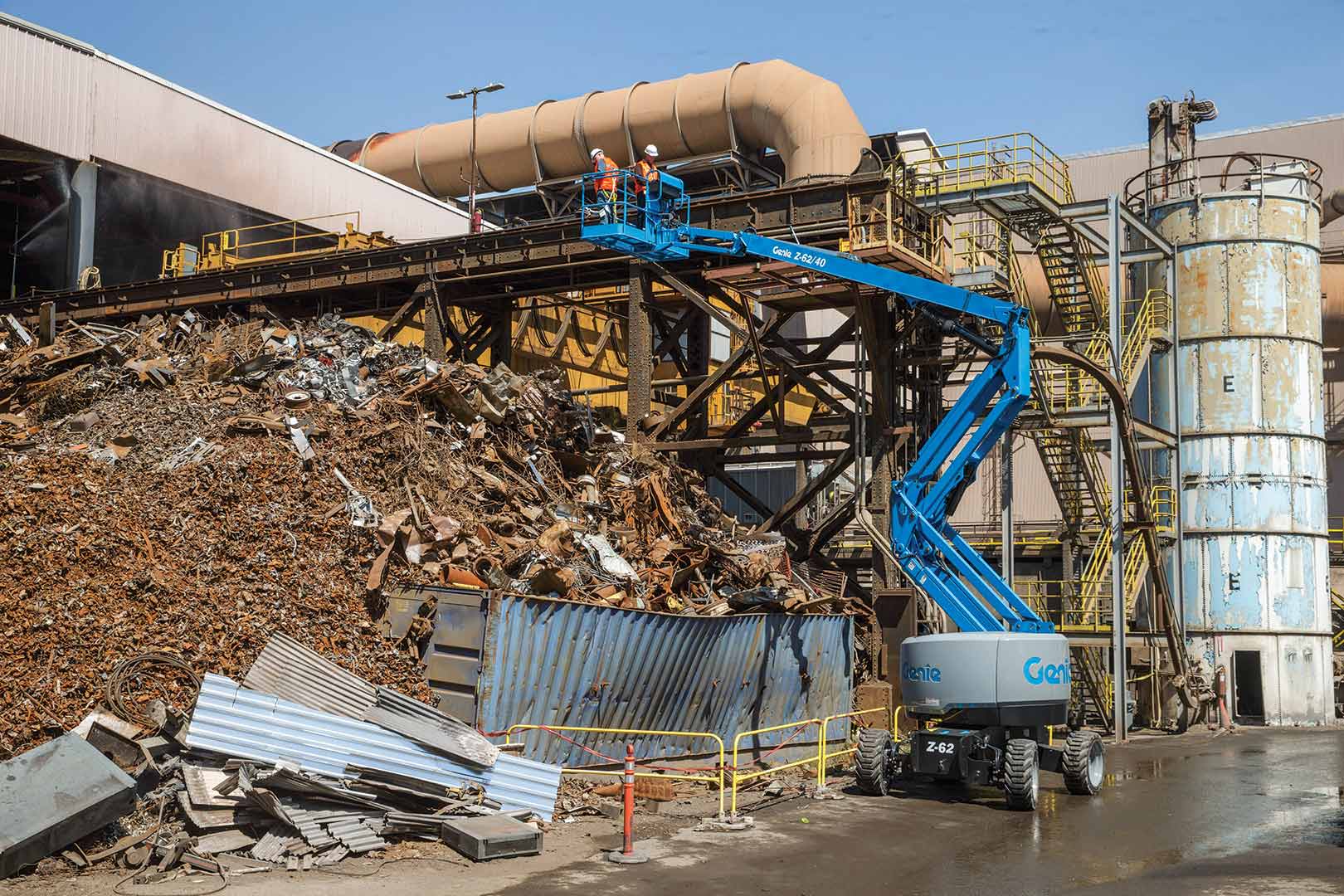

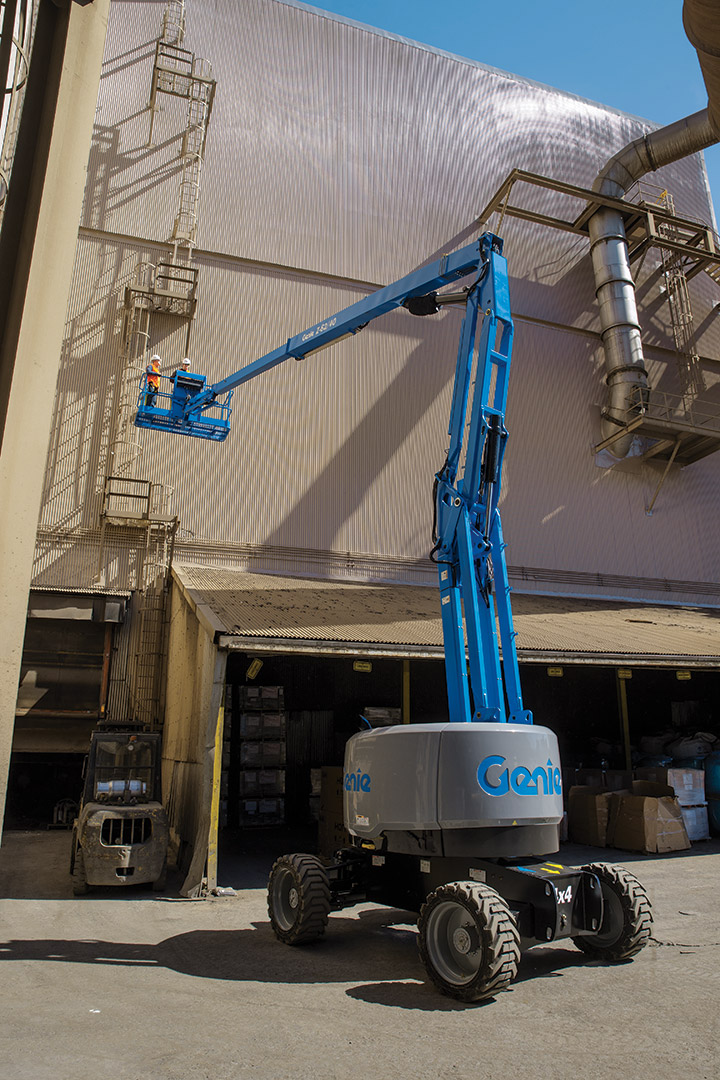

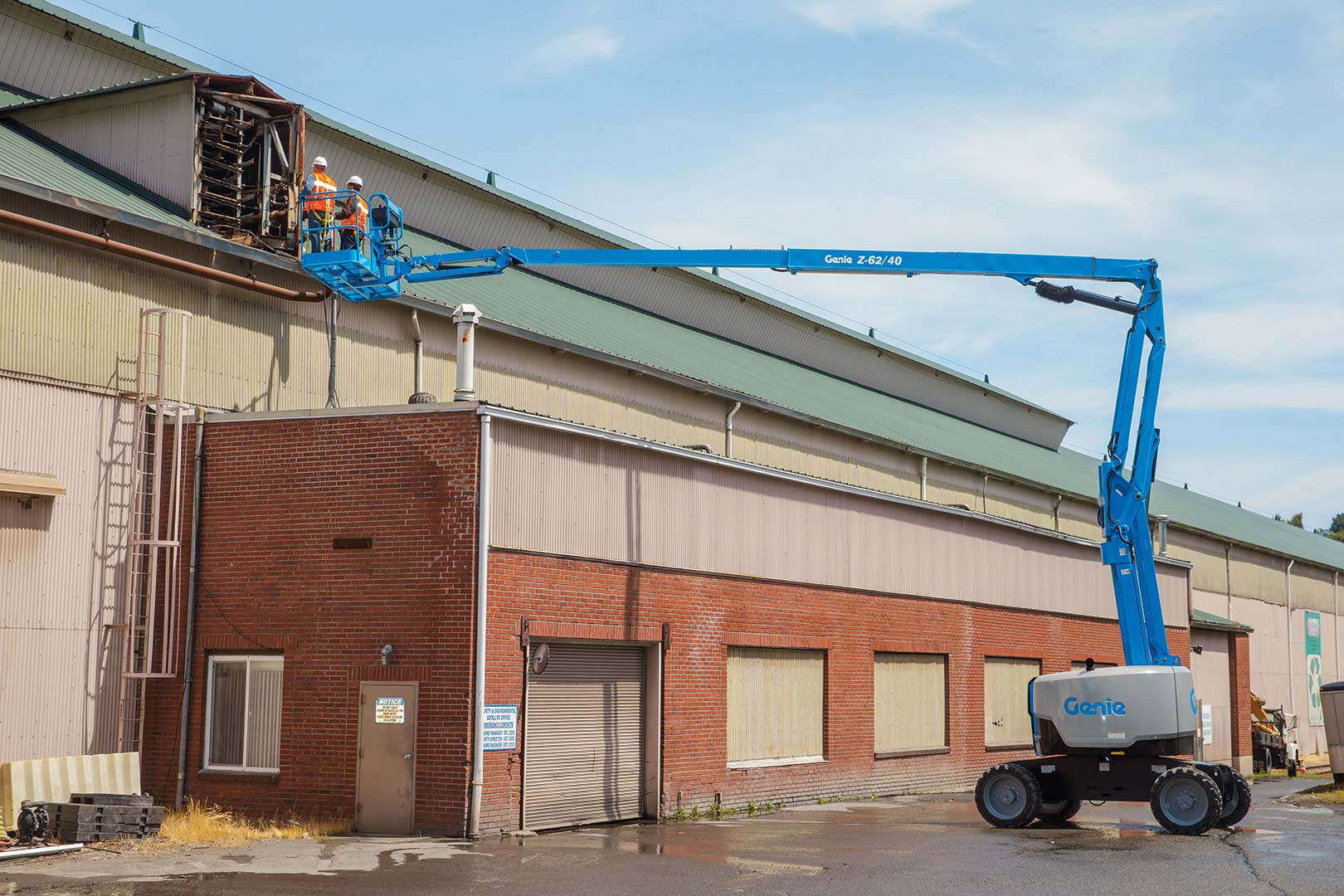

Ideal for outdoor construction and industrial applications, the Genie® Z®-62/40 articulating boom lift with capabilities provides lifting versatility with a combination of up, out and over positioning capabilities with outreach that’s second to none.

Overview

  • The 5-ft (1.52 m) jib features a 135° range of motion to accurately position workers
  • Genie Fast Mast™ boom system allows operators to descend and retrieve materials and quickly return to working height
  • 4WD and full-time active oscillating axles provide traction for gradeability up to 45%
  • Four-wheel steering and exclusive Genie TraX™ track drive system options available
  • + Expand All
  • - Close All
  • Options

    Chassis Options

    • Tow package
    • 4 wheel steering

    Tire Options

    • Z-62 Trax: Quadra Track System, requires 4WD
    • High floatation tires: requires 4WD; includes additional counterweight
    • Rough terrain foam-filled tires (water based)
    • Rough terrain foam-filled tires (petroleum based)
    • Rough terrain, non-marking air-filled tires
    • Rough terrain, non-marking foam-filled tires (water based)
    • Rough terrain, non-marking foam-filled tires (petroleum based)
    • Tire sealant: air-filled tires only

    Engine Options

    • 60 hp Ford MSG425, gas/LPG Dual Fuel (not available on Trax)
    • 74 hp Deutz Tier 4f TD2.9L4, turbo diesel (standard with Trax)
    • Diesel air intake pre-cleaner
    • LPG tank, 33.5 lb. capacity: Ford engine only
    • LPS fire protection rating: Ford engine only and requires LP only operation
    • Cold weather kit: 5W-40 synthetic engine oil, oil pan heater, battery heater, hydraulic tank heater
    • Ford engine gauge package: oil pressure, temperature and voltage(excludes turbo)

    Lift/Turntable Options

    • Specialty hydraulic oil  (50 gal - cold weather, fire resistant, or biodegradable)
    • Hostile environment kit: cylinder bellows, boom wiper seals, platform and ground control box covers
    • Deluxe hostile environment kit : hostile environment kit, center turntable shield, ring gear guard, tail pipe guard, and air pre-cleaner

    Platforms

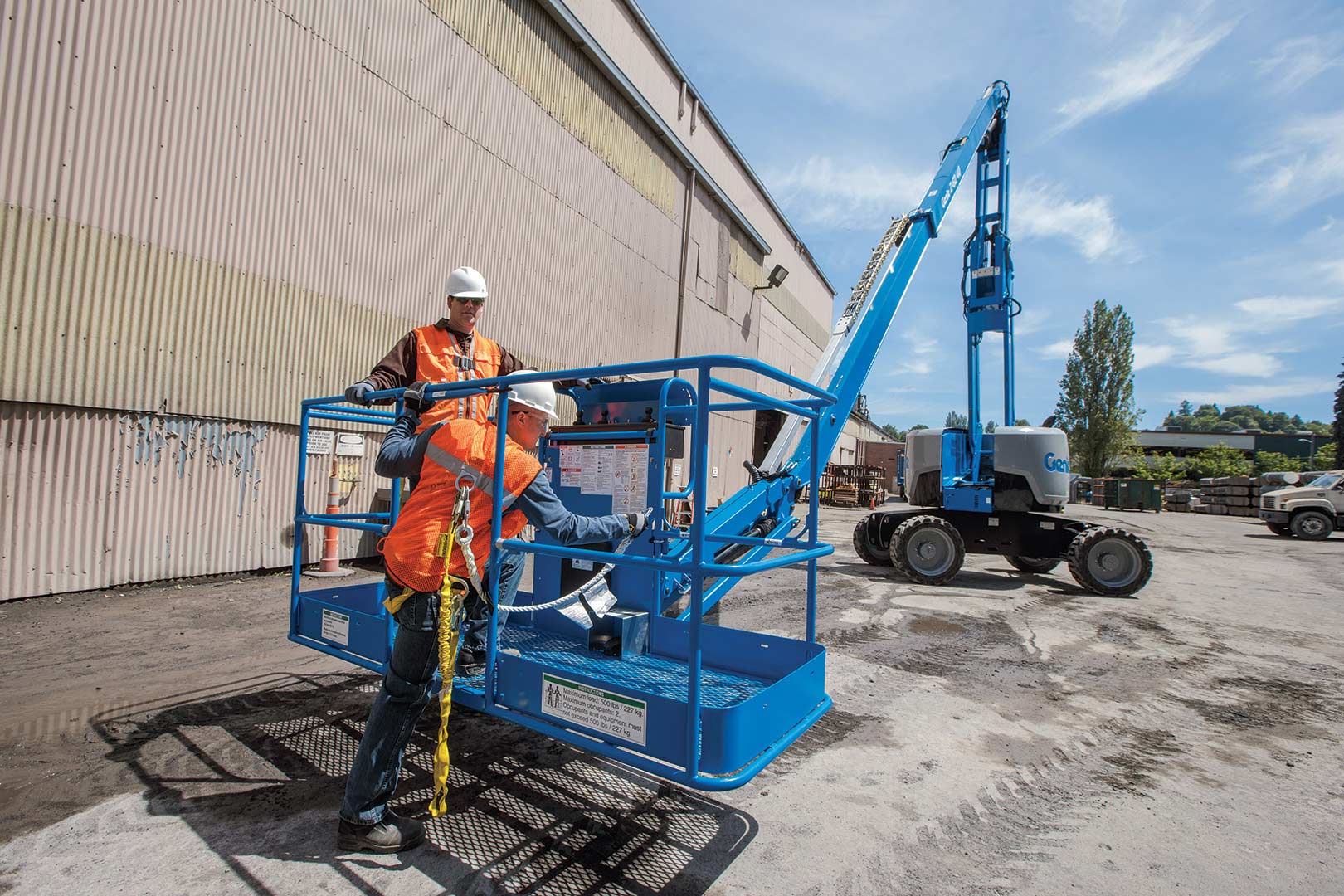

    • 6 ft. dual entry or 8 ft. tri entry platform with ½ height mesh inserts and side swing gate
    • 6 ft. dual entry platform with side swing gate

    Platform Options

    • AC generator, 110V/60Hz,  or 220V/50Hz,  3000W, hydraulically driven
    • Air line to platform: ½ in. inner diameter
    • Aircraft protection kit: platform foam padding and padded disable system
    • Aircraft protection kit: with swing gate
    • Light package: 2 chassis mounted drive lights and 2 platform mounted work lights
    • Lockable platform and ground control box covers
    • Panel cradle package
    • Platform auxiliary top rail
    • Thumb rocker steering
    • Welder - Select Lincoln or Miller
    • Welder ready package
    • Traveling fall arrest anchor system: requires 6ft platform
    • Traveling fall arrest anchor system: requires 8ft platform
  • Max Horizontal Reach: 40 ft 5 in | 12.42 m
  • Max Working Height: 67 ft 11 in | 20.87 m
  • Max Up and Over Clearance (riser extended): 25 ft 7 in | 7.8 m
  • Platform Capacity: 500 lb | 227 kg
