Z-45/25 RT and Z-45/25J RT

  • Genie
  • Articulated Boom Lift

Find Your Nearest Location

Find Location
Your Preferred Store
Change location Change location
Request Quote

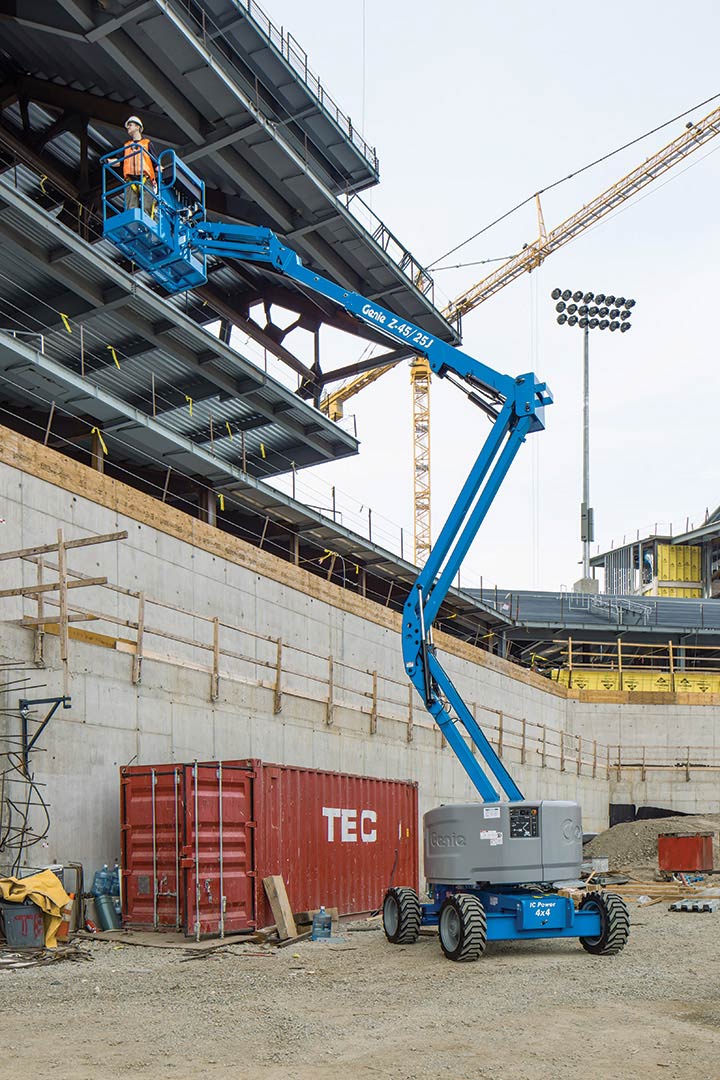

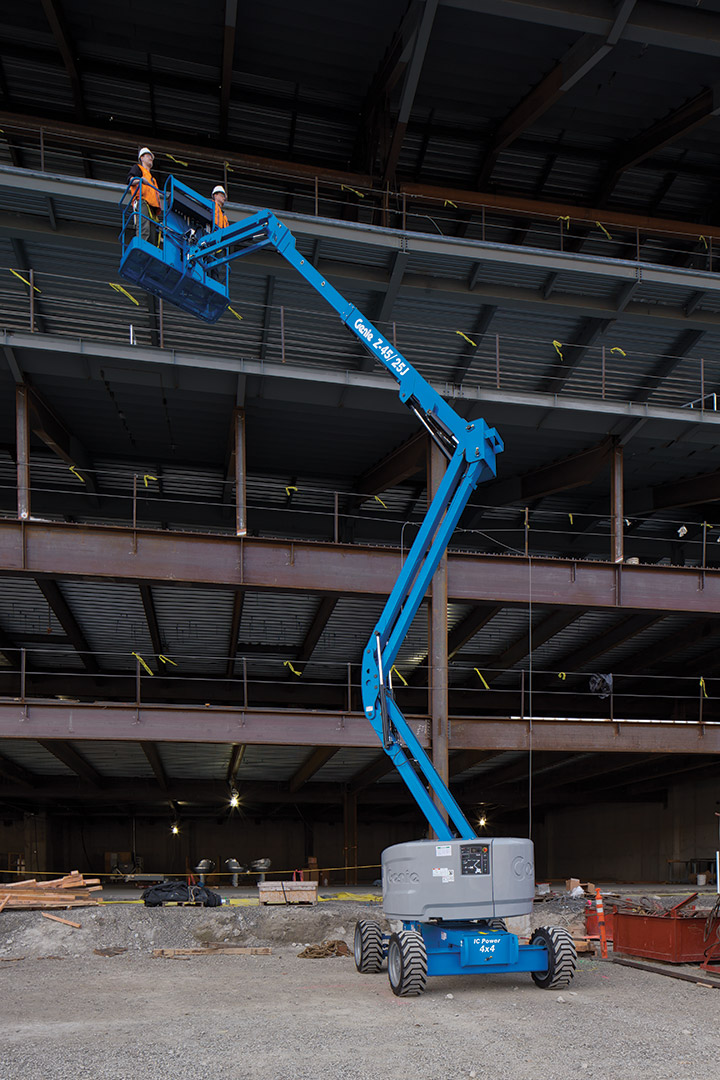

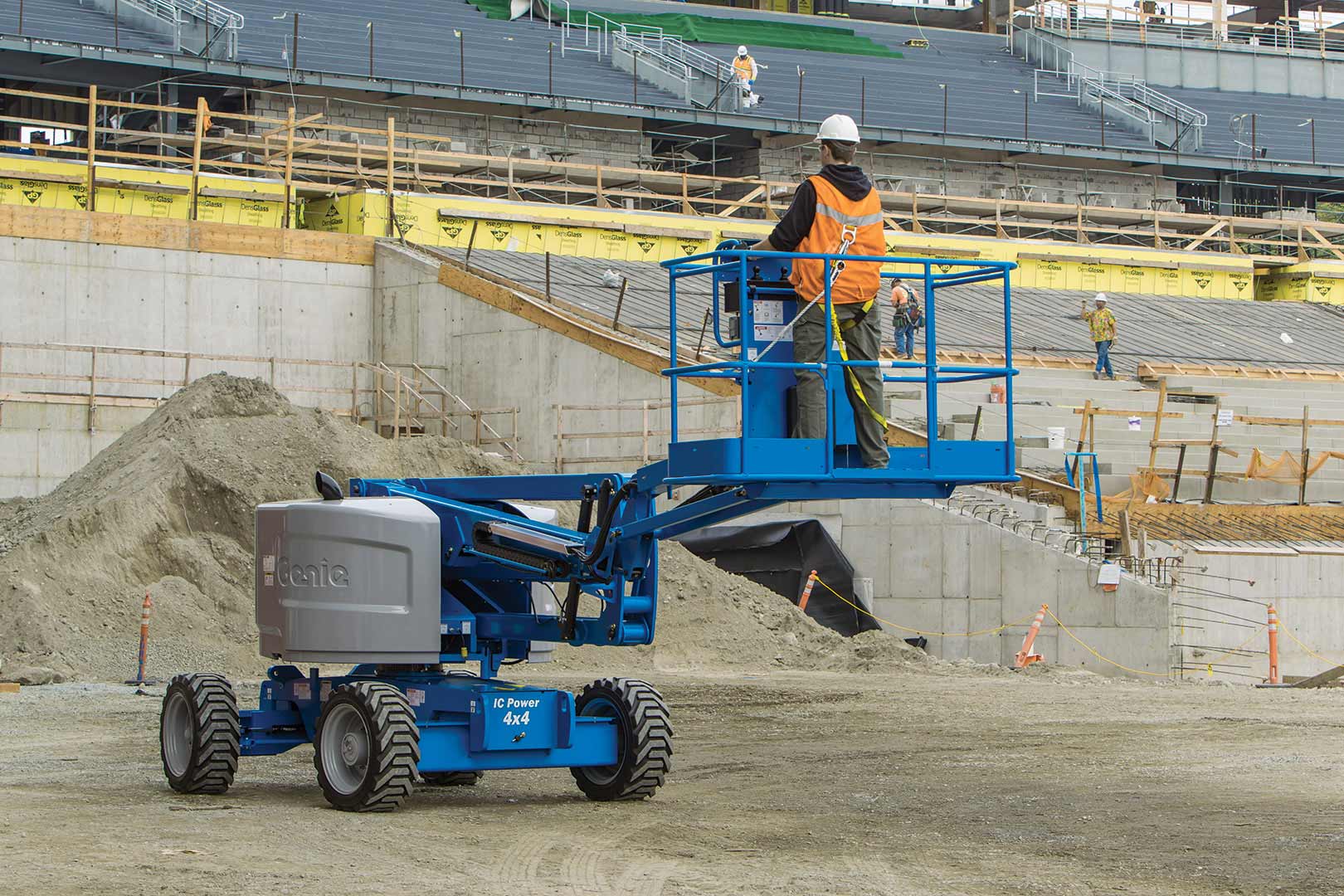

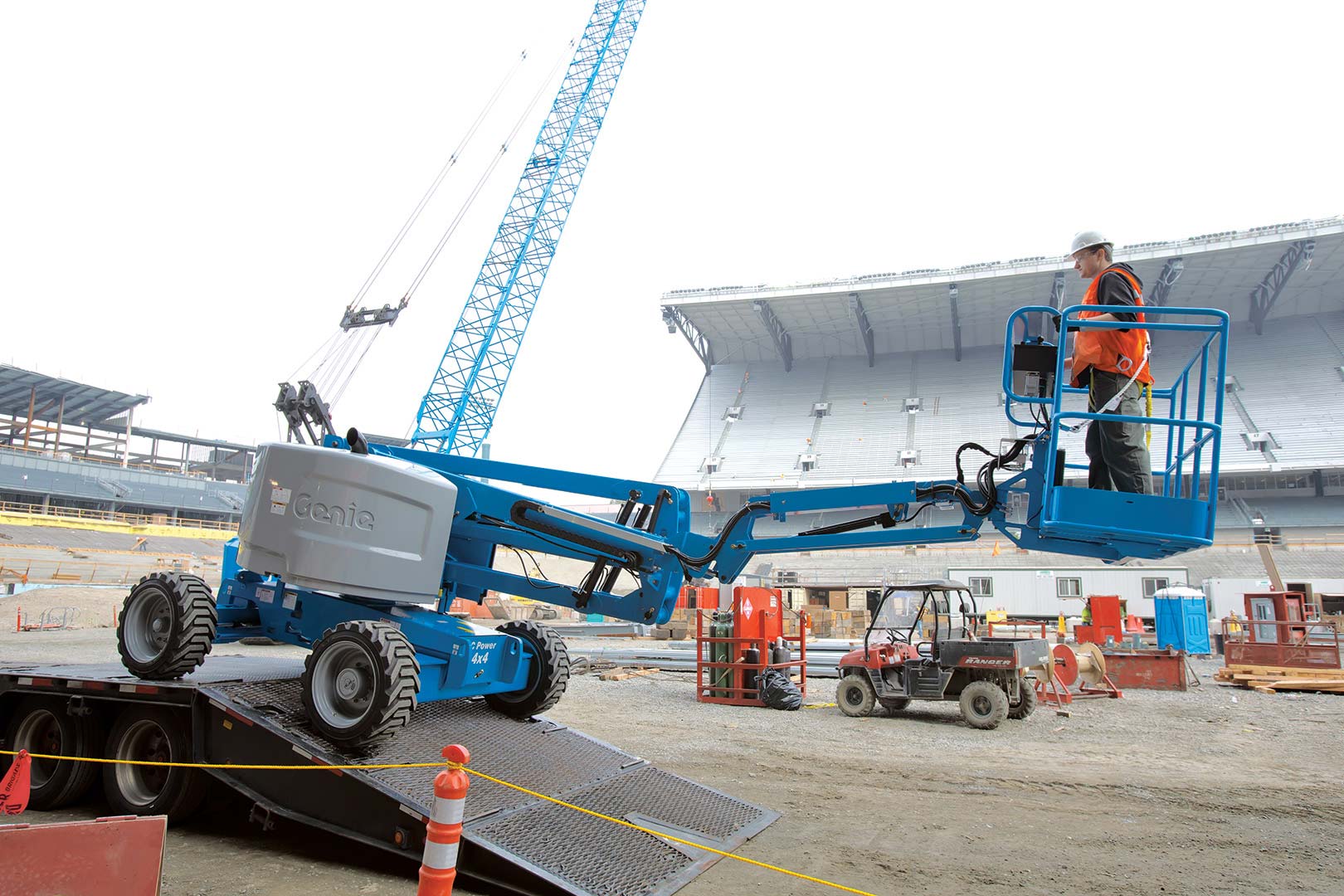

Ideal for outdoor construction and industrial applications, Genie® Z®-45/25 RT and Genie® Z®-45/25J RT articulating boom lifts provide lifting versatility with a combination of up, out and over positioning capabilities with outreach that’s second to none. These models’ tight turning radius and zero tailswing make for easy maneuvering in confined work areas.

Overview

  • Hydraulic rotation lets operators move the platform where it’s needed, and the self-leveling feature keeps the platform level throughout the entire range of motion
  • Fully proportional controls for precise boom positioning and smooth performance
  • Active oscillating axle (4WD models) helps maintain traction on rough terrain
  • Dual fuel (Gas/LPG) or diesel engine options
  • + Expand All
  • - Close All
  • Options

    Chassis Options

    • Tow package

    Tires Options

    • High floatation tires: requires 4WD
    • Rough terrain foam-filled tires (water based)
    • Rough terrain foam-filled tires (petroleum based)
    • Rough terrain, non-marking air-filled tires
    • Rough terrain, non-marking foam-filled tires (water based)
    • Rough terrain, non-marking foam-filled tires (petroleum based)
    • Tire sealant: air-filled tires only

    Engine Options

    • 60 hp Ford MSG425 gas/LPG Dual Fuel
    • Cold weather kit: 5W-40 synthetic engine oil, oil pan heater, battery heater and hydraulic tank heater
    • Ford engine gauge package: oil pressure, temperature and voltage

    Lift/Turntable Options

    • Specialty hydraulic oil  (28 gal - cold weather, fire resistant, or biodegradable)
    • LPG tank, 33.5 lb. capacity: Ford engine only
    • Hostile environment kit - cylinder bellows, boom wiper seals, lockable platform control box covers and air pre-cleaner

    Platforms

    • 6 ft. dual entry platform with ½ height mesh inserts and side swing gate
    • 4 ft. steel platform

    Platform Options

    • AC generator, 110V/60Hz or 220V/50Hz, 2200W: includes Hydraulic oil cooler
    • Air line to platform:  ? in. inner diameter
    • Aircraft protection kit:  platform foam padding and padded disable system
    • Aircraft protection kit with swing gate
    • Light package: 2 chassis mounted drive lights, 2 platform mounted work lights
    • Lockable platform control box cover
    • Panel cradle package
    • Platform auxiliary top rail
    • Thumb rocker steering
    • Hydraulic oil cooler: standard on 4WD
    • Traveling fall arrest anchor system: requires 6ft platform
  • Max Working Height: 51 ft 6 in | 15.86 m
  • Max Horizontal Reach: 24 ft 7 in | 7.49 m
  • Platform Capacity: 500 lb | 227 kg
  • Max Up and Over Clearance (riser extended): 23 ft 5 in | 7.14 m
