Z-40/23 N and Z-40/23 N RJ

  • Genie
  • Articulated Boom Lift

Find Your Nearest Location

Find Location
Your Preferred Store
Change location Change location
Request Quote

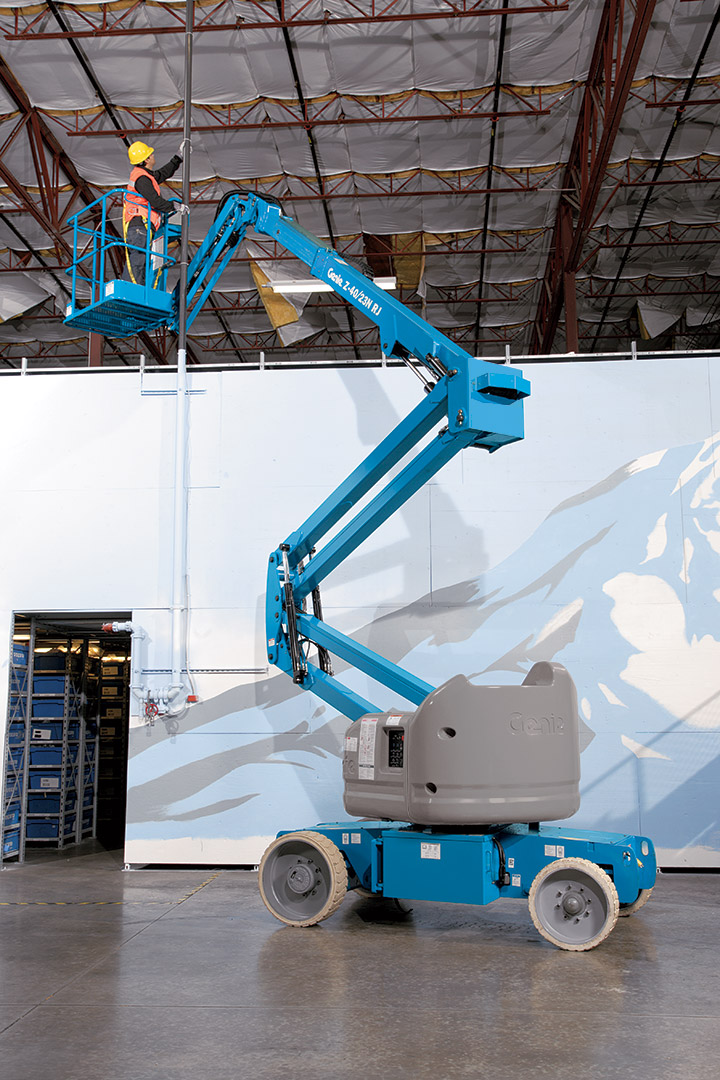

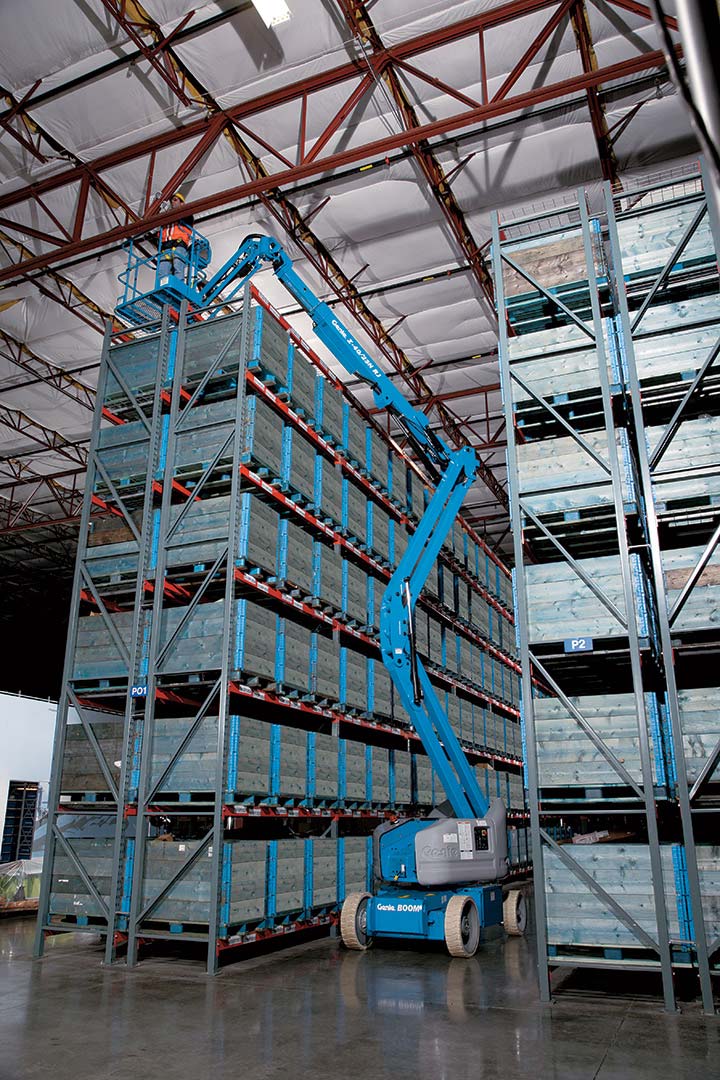

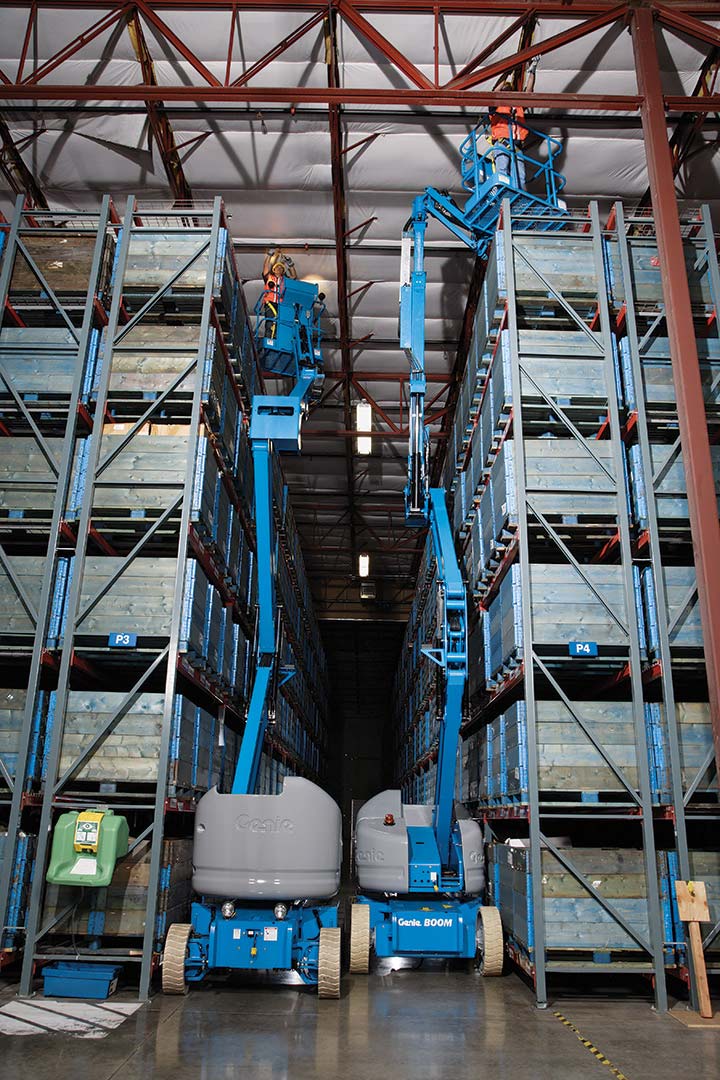

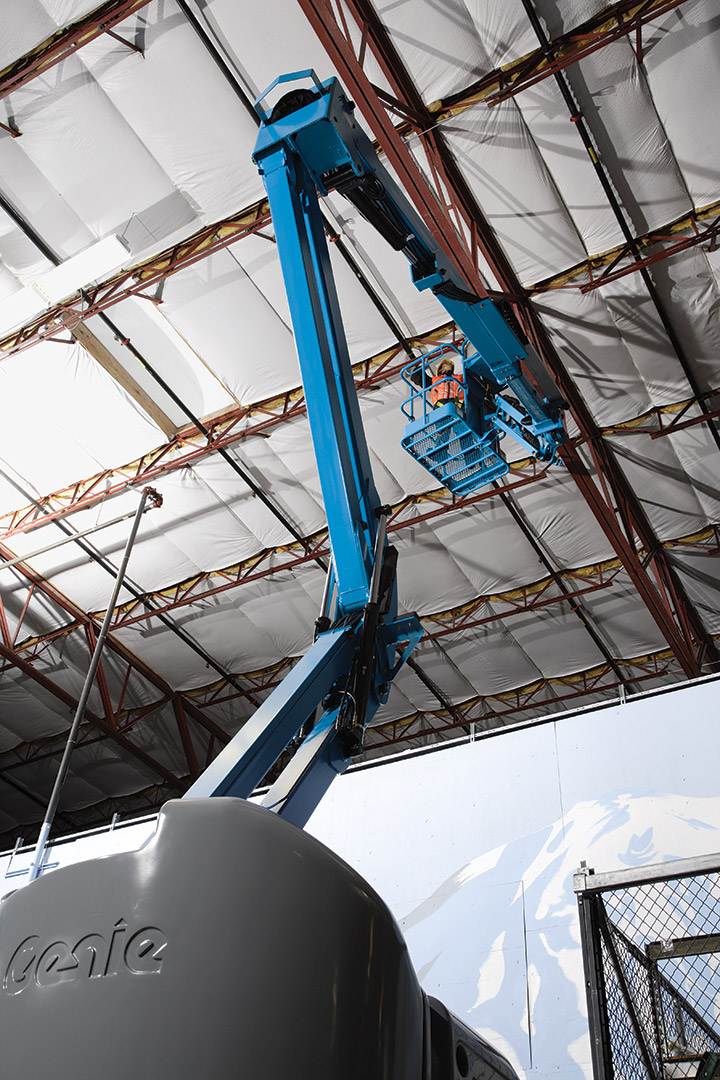

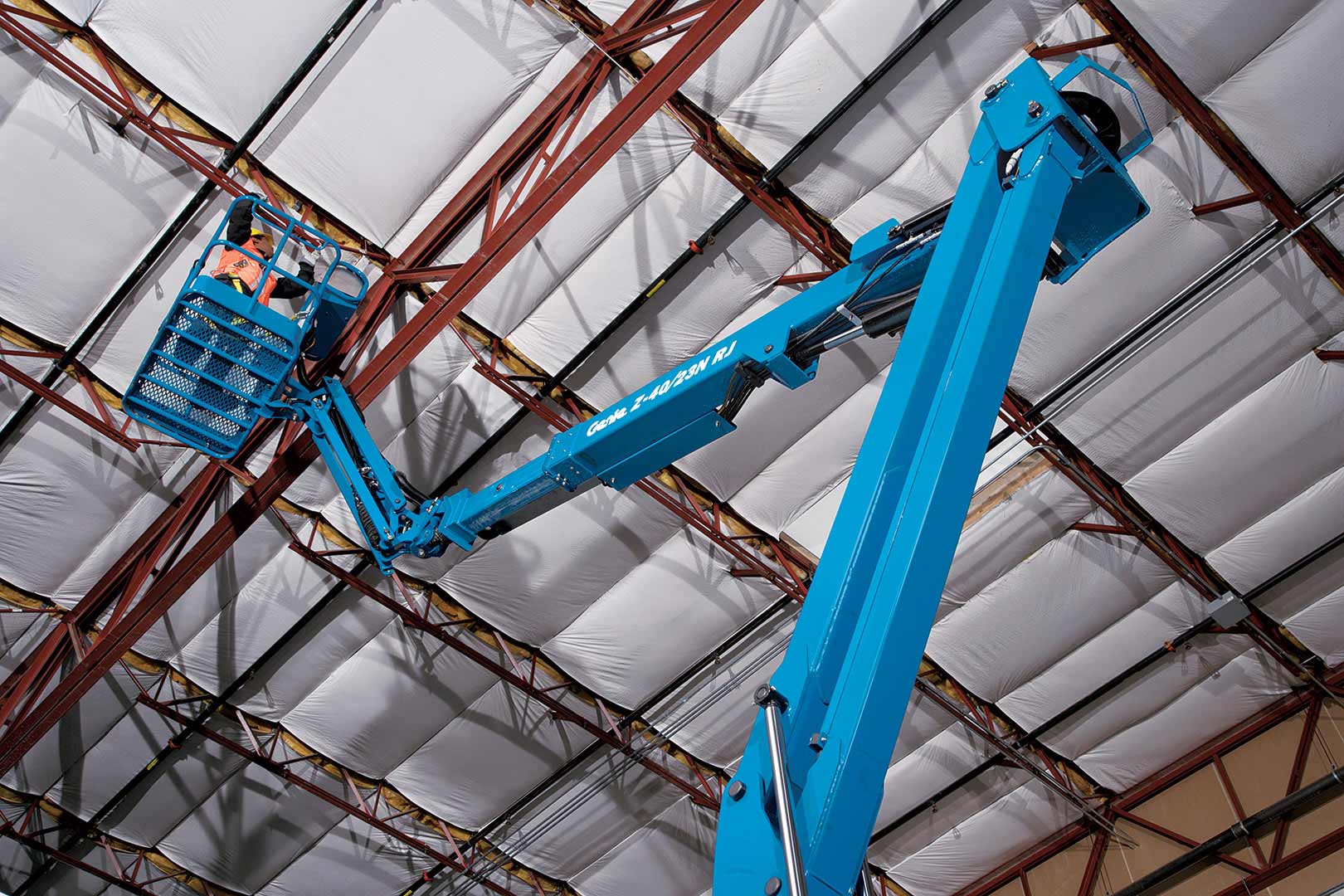

The Genie® Z®-40/23 N and Z®-40/23 N RJ electric articulating boom lifts offer quiet, emission-free operation in the most sensitive work environments.

Overview

  • Perfect to work in congested areas with 4 ft 11 in (1.50 m) wide chassis and 2 ft. 8 in. (87 cm) turning radius
  • Proportional lift and drive controls for precise adjustments in tight areas
  • 30% gradeability drive performance and 4.0 mph travel speed
  • 34 V three-phase AC drive system contains fewer parts and simplifies maintenance
  • + Expand All
  • - Close All
  • Options

    Lift/Turntable Options

    • AGM maintenance-free batteries
    • Specialty hydraulic oil  (11 gal - cold weather, fire resistant, or biodegradable)
    • Power inverter, 800W, 120V AC, 60 Hz
    • Hostile environment kit: cylinder bellows, boom wiper seals and platform control box covers

    Platforms

    • 4 ft. 8 in. steel platform: not available with rotating jib

    Platform Options

    • Air line to platform:  ? in. inner diameter
    • Entry toe boards
    • Light package: 2 chassis mounted drive lights, 2 platform mounted work lights
    • Lockable platform control box cover
    • Platform swing gate
    • Platform auxiliary top rail
    • Platform with ½ height mesh inserts and swing gate
  • Max Horizontal Reach: 22 ft 8 in | 6.91 m
  • Max Up and Over Clearance (riser extended): 21 ft 3 in | 6.48 m
  • Platform Capacity: 500 lb | 227 kg
  • Max Working Height: 40 ft 5 in | 12.32 m
