Z-34/22 IC

  • Genie
  • Articulated Boom Lift

Find Your Nearest Location

Find Location
Your Preferred Store
Change location Change location
Request Quote

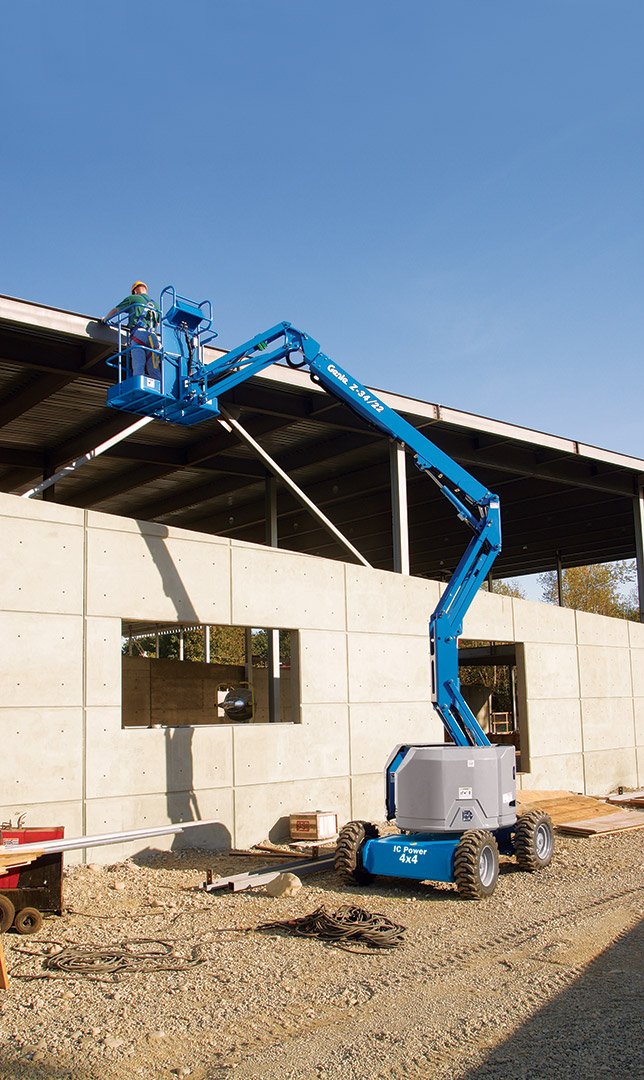

Ideal for outdoor construction and industrial applications, the engine-powered Genie® Z®-34/22 IC articulating boom lift provides lifting versatility with a combination of up, out and over positioning capabilities and outreach that’s second to none. This model is available in 2WD and 4WD models.

Overview

  • Smooth control, durability and efficient power transmission ideal for rough terrain operation
  • Two-speed hydraulic motors for optimum speed and torque
  • Zero tailswing and nose swing in all positions allow excellent maneuverability in confined areas
  • Ascent and descent along a vertical plane with or without boom retraction or extension
  • + Expand All
  • - Close All
  • Options

    Tire Options

    • 2WD Industrial foam-filled tires (water based)
    • 2WD Non-marking industrial air-filled tires
    • 2WD Non-marking industrial foam-filled tires (water based)
    • 2WD Rough-terrain air-filled tires
    • 4WD Rough-terrain foam-filled tires (water based)
    • Tire sealant: air-filled tires only

    Engine Options

    • 28 hp GM, gas / LPG Dual Fuel, including gauge package
    • Cold weather kit: 5W-40 synthetic engine oil, oil pan heater, battery heater
    • Engine gauge package, Kubota: oil pressure, temperature and voltage

    Lift/Turntable Options

    • AC generator, 110V/60Hz or 220V/50Hz, 2200W, hydraulically driven
    • Specialty hydraulic oil  (22 gal - cold weather, fire resistant, or biodegradable)
    • LPG tank, 33.5 lb. capacity: GM gas/LPG engine only
    • Hostile environment kit: cylinder bellows, boom wiper seals and platform control box cover

    Platforms

    • 4 ft. platform
    • 4ft. or 4 ft. 8 in. platform with ½ height mesh inserts and swing gate

    Platform Options

    • Air line to platform:  ? in. inner diameter
    • Aircraft protection kit :  4ft. 8in.  platform foam padding and padded disable system
    • Entry toe boards
    • Light package: 2 chassis mounted drive lights, 2 platform mounted work lights
    • Lockable platform control box cover
    • Platform auxiliary top rail
    • Platform swing gate
  • Max Working Height: 40 ft 6 in | 12.52 m
  • Max Horizontal Reach: 22 ft 3 in | 6.78 m
  • Max Up and Over Clearance (riser extended): 15 ft | 4.57 m
  • Platform Capacity: 500 lb | 227 kg
