Z-34/22 DC or Bi Energy

  • Genie
  • Articulated Boom Lift

Find Your Nearest Location

Find Location
Your Preferred Store
Change location Change location
Request Quote

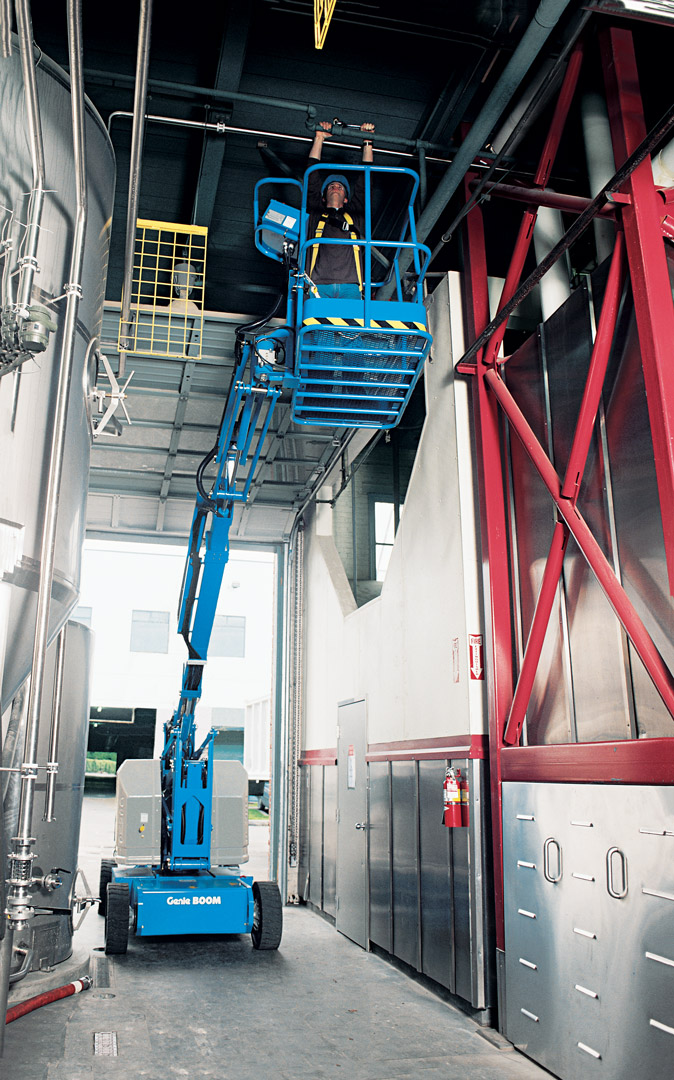

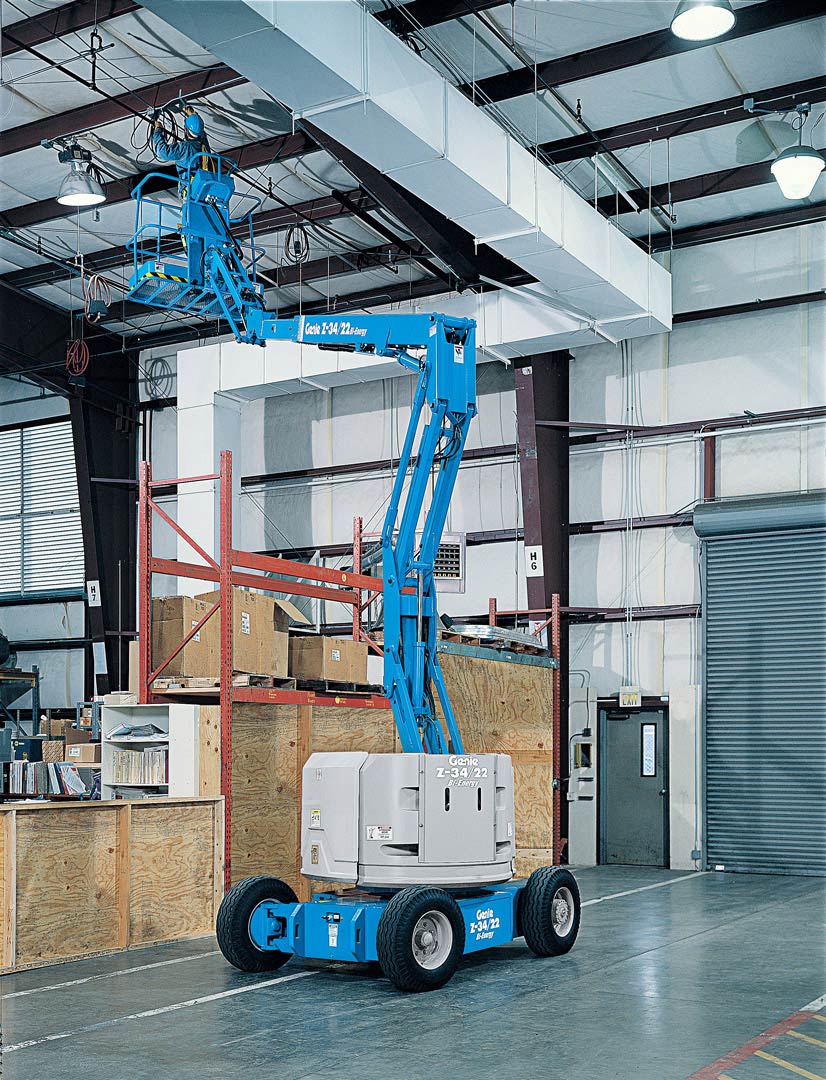

The Genie® Z®-34/22 electric articulating boom lift offers quiet, emission-free operation in the most sensitive work environments. It’s a 48V DC machine with a diesel-powered generator acting as a 100 amp battery charger, making it ideal for indoor and outdoor applications.

Overview

  • 30% gradeability drive performance and 4.0 mph travel speed
  • Motor controller eliminates the need for forward/reverse contactors or speed sensors, reducing complexity and improving reliability of the drive system
  • Self-leveling platform features 180° powered horizontal rotation for precise positioning and easy operation
  • Versatile 40 ft 6 in (12.52 m) working height, 22 ft 3 in (6.78 m) horizontal reach
  • + Expand All
  • - Close All
  • Options

    Chassis - Engine Options

    • Cold weather kit for Z-34/22 Bi-Energy model only, includes: 5W-40  synthetic oil, oil pan heater, battery heater, hydraulic tank heater

    Certification Options

    • EE rating, DC only

    Chassis - Tires Options (not available with Z-34/22N)

    • Industrial foam-filled tires (water based)
    • Non-marking industrial air-filled tires
    • Non-marking industrial foam-filled tires (water based)
    • Tire sealant: air-filled tires only

    Lift/Turntable Options

    • AGM maintenance-free batteries
    • Battery charge indicator (BCI) (standard on Bi-Energy model)
    • Specialty hydraulic oil  (6 gal - cold weather, fire resistant, or biodegradable)
    • Low voltage interrupt with BCI (DC only)
    • Low voltage interrupt with BCI (Bi-Energy only)
    • Power inverter, 800W, 120V AC, 60 Hz (DC only)
    • Hostile environment kit: cylinder bellows, boom wiper seals and lockable platform control box covers

    Platforms

    • 4 ft. platform

    Platform Options

    • Air line to platform:  ? in. inner diameter
    • Aircraft protection kit:  platform foam padding and padded disable system
    • Light package: 2 chassis mounted drive lights, 2 platform mounted work lights
    • Lockable platform control box cover
    • Platform with ½ height mesh inserts and swing gate
    • Platform auxiliary top rail
    • Platform swing gate
  • Max Horizontal Reach: 22 ft 3 in | 4.57 m
  • Max Working Height: 40 ft 6 in | 12.52 m
  • Max Up and Over Clearance (riser extended): 15 ft | 4.57 m
  • Platform Capacity: 500 lb | 227 kg
