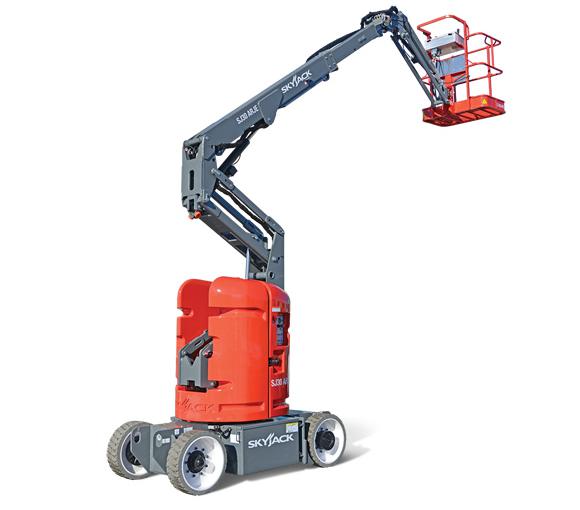

SJ30 AJE/ARJE

  • Skyjack
  • Articulated Boom Lift

Find Your Nearest Location

Find Location
Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs
  • 2 Year Gold Leaf Warranty (5 year structural warranty)
  • 48V 305 Ah battery pack
  • Color coded and numbered wiring
  • Swing out battery trays
  • Drivable at full height
  • Modular platform railing system
  • Direction sensing drive and steer controls
  • 28 mph (12.5 m/s) wind rating
  • Rotating jib (SJ30 ARJE only)
  • Operator horn
  • DC powered emergency lowering
  • Tie down/lifting lugs
  • Telematics ready
  • 35% Gradeability
  • Regenerative braking
  • Hourmeter
  • Swing out cowlings
  • Dual spring applied, electromagnetically released brakes
  • Rear-entry sliding mid rail
  • 110V AC outlet on platform with GFI
  • Proportional drive and boom controls
  • Direct AC electric drive
  • Secondary guarding electrical (SGE)
  • All motion alarm
  • Relay based control system
  • Function speed selector
  • 22 x 7 x 12 solid rubber, non-marking tires
  • Speed and angle sensing traction control
  • 355° Non-continuous turret rotation
  • + Expand All
  • - Close All
  • Overall Specifications
    SJ30 AJE
    SJ30ARJE
    Work Height
    35' 9" (10.90 m)
    35’ 9” (10.90 m)
    Platform Height
    29' 9" (9.07 m)
    29’ 9” (9.07 m)
    Horizontal Reach
    20' 6" (6.25 m)
    20’ 6” (6.25 m)
    Up and Over Height
    13' 1" (3.99 m)
    13’ 1” (3.99 m)
    Platform Size
    30" x 46" (0.76 x 1.17 m)
    30” x 46” (0.76 m x 1.17 m)
    Stowed Width
    47" (1.19 m)
    47” (1.19 m)
    Tailswing
    0
    0
    Stowed Height
    6' 7" (2.01 m)
    6’ 7” (2.01 m)
    Stowed Length
    17' 11" (5.46 m)
    17’ 11" (5.46 m)
    Ground Clearance
    4" (10.16 cm)
    4" (10.16 cm)
    Wheelbase
    65" (1.65 m)
    65” (1.65 m)
    Rotation
    355° NC
    355° NC
    Platform Rotation
    180°
    180°
    Jib Length
    49” (1.25 m)
    49” (1.25 m)
    Jib Range +/-
    142° (+77°/-65°)
    142° (+77°/-65°)
    Weight
    14,560 lbs (6,605 kg)
    12,265 lbs (5,563 kg)
    Gradeability
    35% (Counterweight Facing Up)
    35% (Counterweight Facing Up)
    Turning Radius (Inside)
    60” (1.52 m)
    60" (1.52 m)
    Turning Radius (Outside)
    127” (3.23 m)
    127" (3.23 m)
    Drive Speed (Stowed)
    3.0 mph (4.8 km/h)
    3.0 mph (4.8 km/h)
    Drive Speed (Raised)
    0.4 mph (0.64 km/h)
    0.4 mph (0.64 km/h)
    Capacity
    500 lbs (227 kg)
    500 lbs (227 kg)
    Local Floor Load (With Rated Load)
    236 psi (1,627 kPa)
    218 psi (1,505 kPa)
    Overall Floor Load (With Rated Load)
    530 psf (25 kPa)
    464 psf (22 kPa)
    Maximum # of Persons
    2/2 (indoors/outdoors)
    2/1
    Wind Rating
    28 mph (12.5 m/s)
    28 mph (12.5 m/s)
    Tire Type
    Solid, N/M
    Solid, N/M
    Tire Size
    22 x 7 x 12
    22 x 7 x 12
