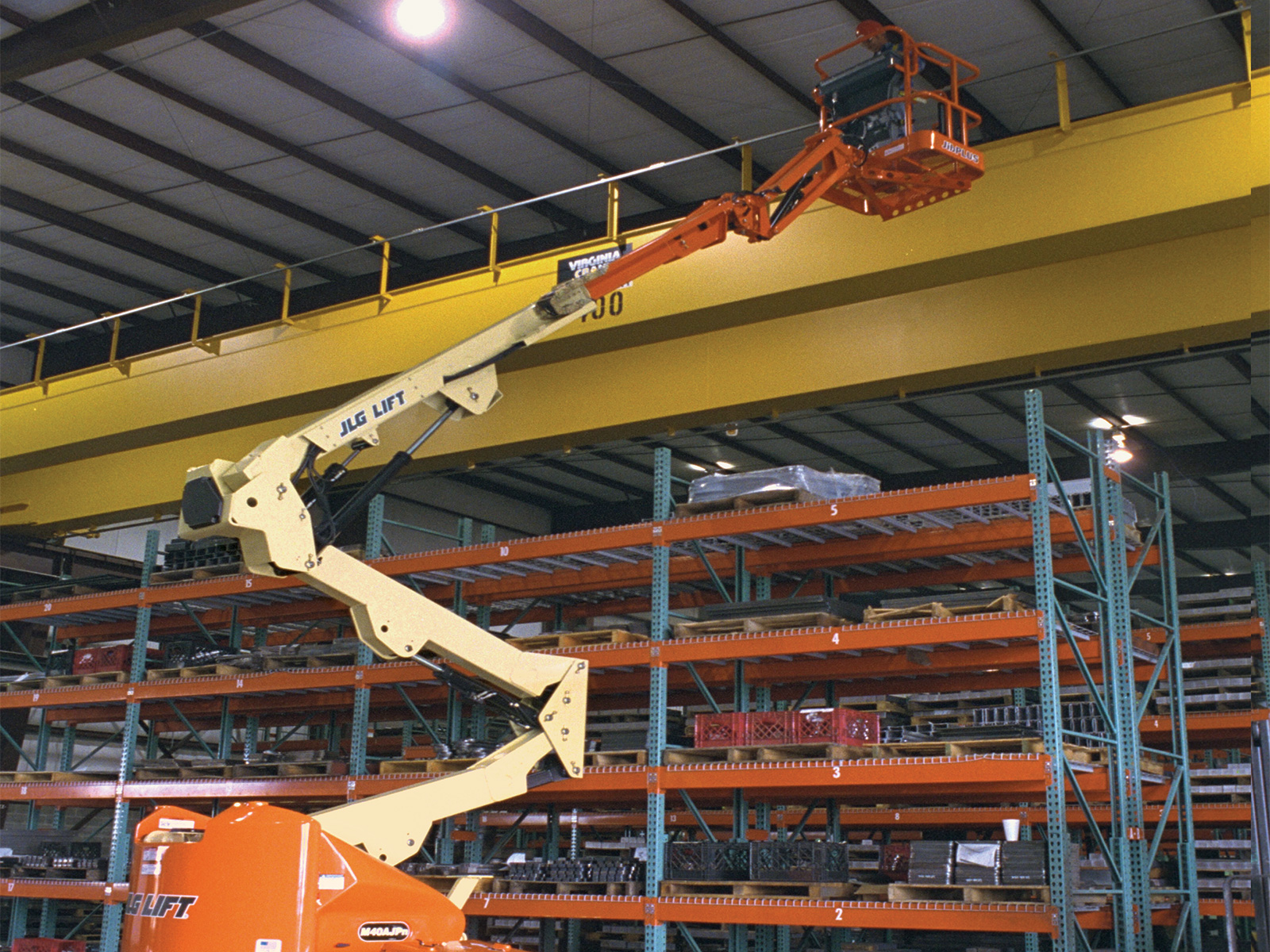

M400AJP

  • JLG
  • Articulated Boom Lift

Find Your Nearest Location

Find Location
Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs

Key Specs

  • Platform Height: 40 ft / 12.19 m
  • Machine Width: 5 ft 9 in. / 1.75 m

Key Features

  • Accessibility – up and over access, optional jib
  • Maneuverability – move over uneven surfaces with Automatic Traction Control
  • Productivity – work longer with longer duty cycles
  • Environmentally friendly – zero emissions
  • Accessibility – up and over access, optional jib
  • Maneuverability – move over uneven surfaces with Automatic Traction Control
  • Environmentally friendly – zero emissions
  • Productivity – work longer with longer duty cycles
  • Platform Dimension A: 2 ft 6 in. / 0.76 m
  • Drive Speed - Platform Lowered: 3.2 mph / 5.15 km/h
  • Horizontal Jib Rotation: 180 Degrees
  • Platform Dimension B: 5 ft / 1.52 m
  • Capacity - Hydraulic Reservoir: 4 gal. / 15.14 L
  • Machine Height: 6 ft 7 in. / 2.01 m
  • Generator / Engine - Brand: Kubota
  • Jib - Range of articulation: 144 Degrees
  • Tire Size: 240/55-17.5 Pnuematic
  • Machine Width: 5 ft 9 in. / 1.75 m
  • Tailswing: 0 in. / 0 m
  • Electrical System: 48 Volts DC
  • Generator / Engine - Fuel Type: Diesel
  • Generator / Engine - Horsepower / Kilowatts: 6.7 hp / 5 kW
  • Machine Length: 22 ft / 6.71 m
  • Turning Radius - Outside: 10 ft 4 in. / 3.15 m
  • Up and Over Height: 21 ft 6 in. / 6.55 m
  • Batteries: 8 x 6V, 370 amp-hr
  • Platform Height: 40 ft / 12.19 m
  • Ground Clearance: 9 in. / 0.22 m
  • Gradeability - 2WD: 30 %
  • Swing Type: Non-Continuous
  • Platform Capacity: 500 lb / 226.80 kg
  • Swing: 360 Degrees
  • Horizontal Outreach: 22 ft 5 in. / 6.83 m
  • Machine Weight: 14000 lb / 6350.29 kg
