Papé Material Handling

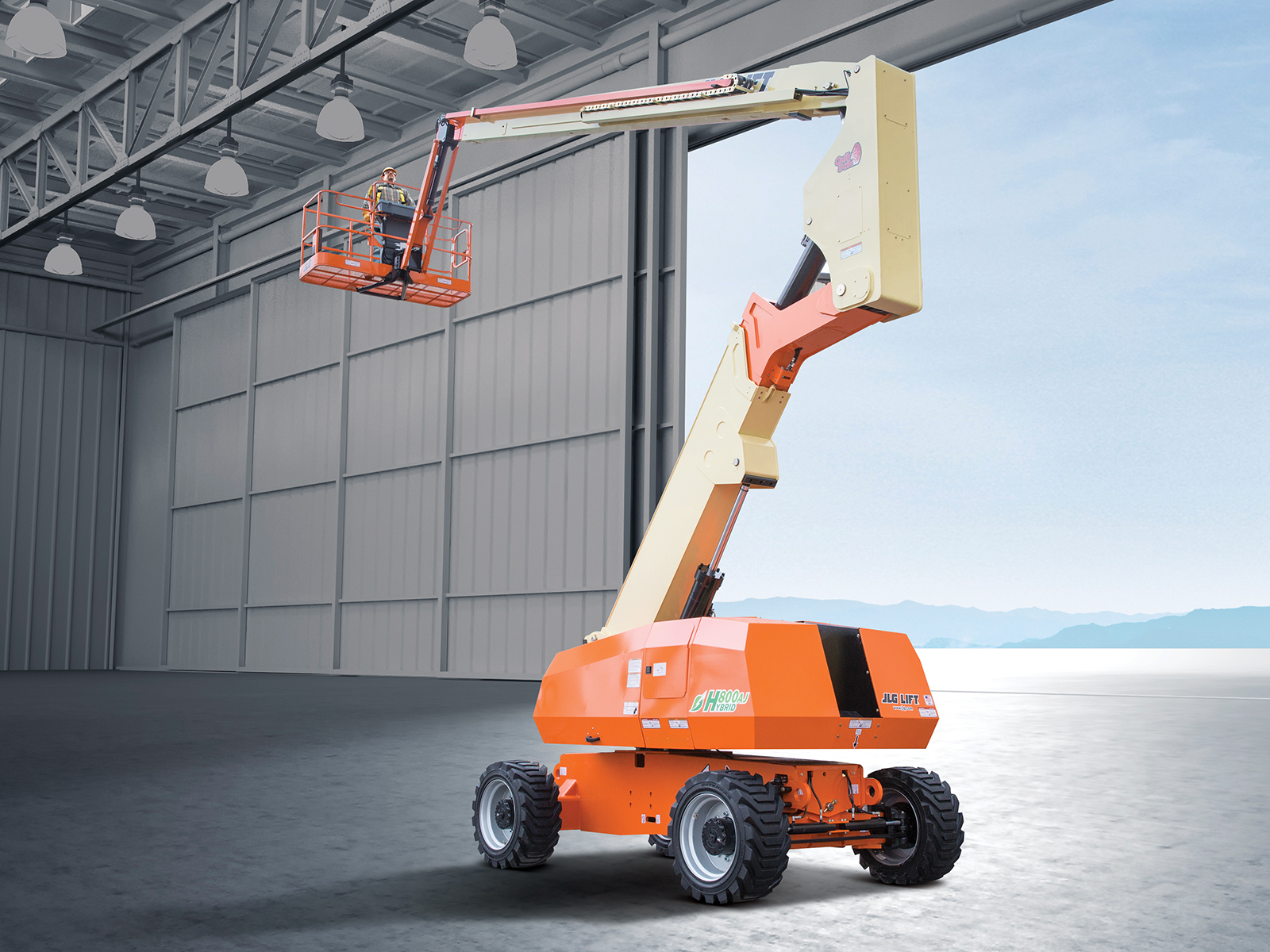

H800AJ

JLG
Articulated Boom Lift

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

Key Specs

Platform Height: 80 ft / 24.38 m
Machine Width: 8 ft 2 in. / 2.49 m

Key Features

Same 800AJ with Efficient Hybrid Power - Core components like the drivetrain, weldments and hydraulics are the same, helping to improve total cost of ownership with common parts, service and reduced training needs
Built on 20 Years of Experience - JLG is expanding the hybrid family as we celebrate two decades of experience in this product category
Economical Performance - Provides diesel performance with better fuel economy

Built on 20 Years of Experience - JLG is expanding the hybrid family as we celebrate two decades of experience in this product category
Same 800AJ with Efficient Hybrid Power - Core components like the drivetrain, weldments and hydraulics are the same, helping to improve total cost of ownership with common parts, service and reduced training needs
Economical Performance - Provides diesel performance with better fuel economy

Specifications
Documents

Turning Radius - Inside: 12 ft 6 in. / 3.81 m
Electrical System: 84 Volts DC
Machine Length: 36 ft 6 in. / 11.13 m
Turning Radius - Outside: 19 ft 8 in. / 5.99 m
Tire Size: 15-625 Wide Lug Tread
Drive Speed - Platform Elevated: 0.3 mph / 0.43 km/h
Tailswing: 3 ft 6 in. / 1.07 m
Machine Weight: 35520 lb / 16111.60 kg
Machine Width: 8 ft 2 in. / 2.49 m
Ground Clearance: 11 in. / 0.28 m
Gradeability - 4WD: 45 %
Maximum Ground Bearing Pressure: 76 psi / 5.32 Kg/cm2
Machine Height: 9 ft 10 in. / 3 m
Jib - Range of articulation: 130 Degrees
Axle Oscillation: 8 in. / 0.2 m
Up and Over Height: 32 ft 1 in. / 9.78 m
Drive Speed - Platform Lowered: 3.5 mph / 5.55 km/h
Capacity - Hydraulic Reservoir: 21 gal. / 79.49 L
Platform Height: 80 ft / 24.38 m
Capacity - Fuel Tank: 25 gal. / 94.64 L
Horizontal Outreach: 51 ft 10 in. / 15.8 m
Wheelbase: 10 ft / 3.05 m
Platform Capacity: 500 lb / 226.80 kg
Engine Type - Diesel: Kubota Tier 4 Final
Swing: 360 Degrees
Batteries: 12V 235Ah 4D Maintinance free AGM
