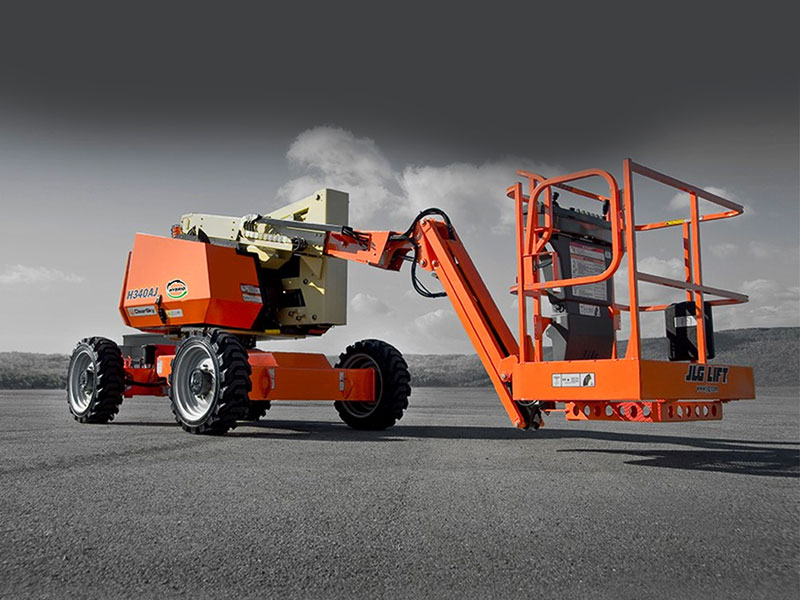

JLG H340AJ Hybrid

JLG H340AJ Hybrid

JLG H340AJ Hybrid

JLG H340AJ Hybrid

JLG H340AJ Hybrid

H340AJ Hybrid

JLG
Articulated Boom Lift

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

Key Specs

Platform Height: 33 ft 9 in. / 10.29 m
Machine Width: 6 ft 4 in. / 1.93 m

Key Features

Diesel-like performance – Four independent electric-drive motors and a Tier 4 Final diesel-powered generator provide exceptional terrainability on par with its diesel counterpart
Hybrid technology – Runs completely on 8 x 12v 100 amp-hour AGM batteries, which are charged by the diesel generator

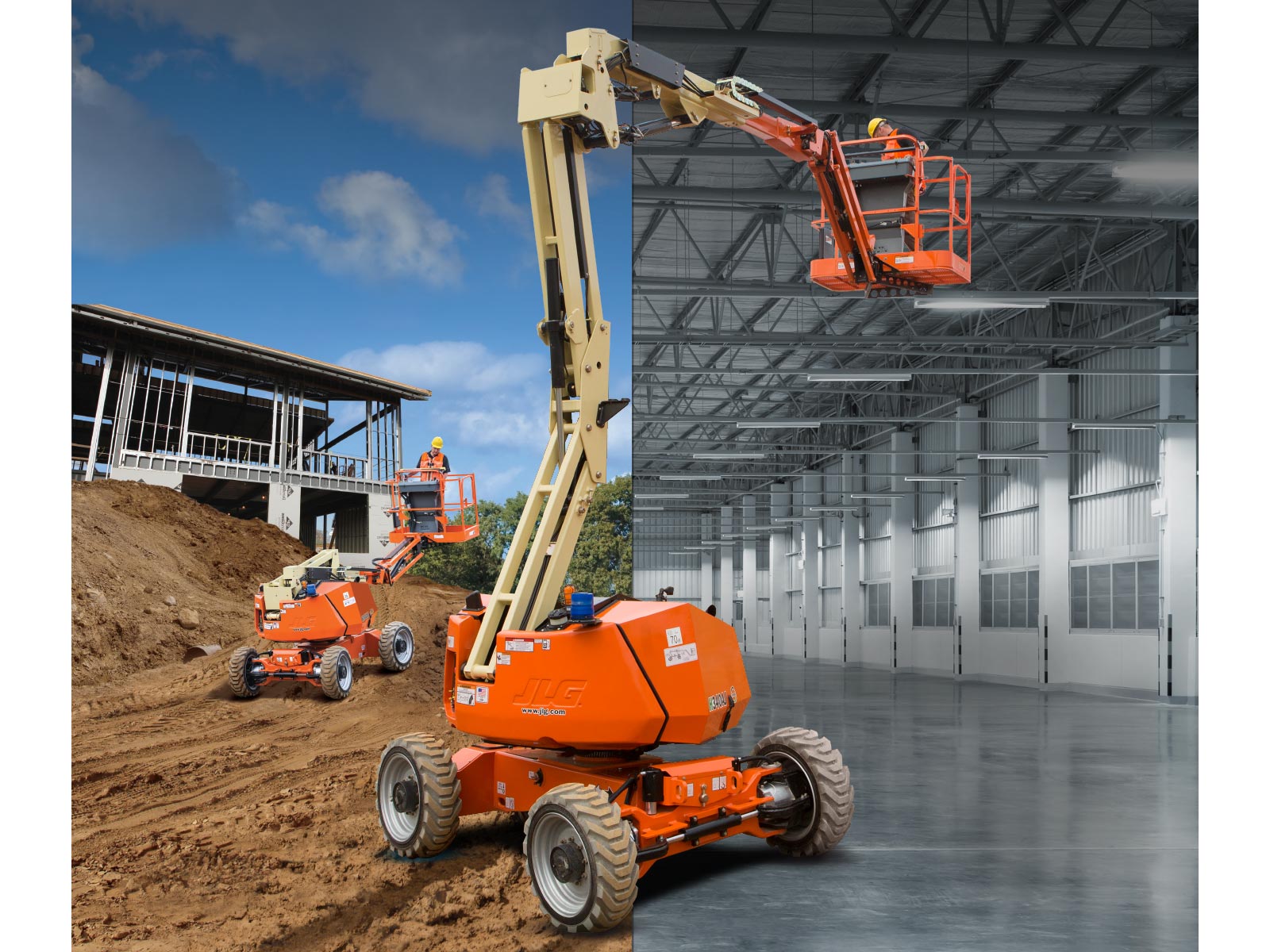

Versatility – The power of a diesel machine combined with hybrid efficiency allows you to work both inside and outside
Low emissions – Experience reduced fuel use*, emissions, noise and maintenance

Low emissions – Experience reduced fuel use*, emissions, noise and maintenance
Diesel-like performance – Four independent electric-drive motors and a Tier 4 Final diesel-powered generator provide exceptional terrainability on par with its diesel counterpart
Hybrid technology – Runs completely on 8 x 12v 100 amp-hour AGM batteries, which are charged by the diesel generator
Versatility – The power of a diesel machine combined with hybrid efficiency allows you to work both inside and outside

Specifications
Documents

Platform Dimension A: 2 ft 6 in. / 0.76 m
Platform Dimension B: 5 ft / 1.52 m
Batteries: 8 x 12V, 100 Amp-Hour
Machine Height: 6 ft 7 in. / 2.01 m
Generator / Engine - Brand: Kubota
Swing: 355 Degrees
Platform Height: 33 ft 9 in. / 10.29 m
Machine Weight: 9860 lb / 4472.42 kg
Generator / Engine - Horsepower / Kilowatts: 11.1 hp / 8.28 kW
Up and Over Height: 17 ft / 5.18 m
Electrical System: 48 Volts DC
Horizontal Jib Rotation: 0 Degrees
Tailswing: 2 in. / 0.05 m
Ground Clearance: 10 in. / 0.26 m
Horizontal Outreach: 19 ft 11 in. / 6.07 m
Gradeability - 4WD: 45 %
Capacity - Hydraulic Reservoir: 20.6 gal. / 77.98 L
Generator / Engine - Fuel Type: Diesel
Machine Width: 6 ft 4 in. / 1.93 m
Machine Length: 18 ft 2 in. / 5.54 m
Tire Size: 265/50 D20
Jib - Range of articulation: 139 Degrees
Drive Speed - Platform Lowered: 3.7 mph / 5.95 km/h
Swing Type: Non-Continuous
Platform Capacity: 500 lb / 226.80 kg
Turning Radius - Outside: 13 ft / 3.96 m
Wheelbase: 6 ft 2 in. / 1.88 m
Generator / Engine - Fuel Tank Capacity: 13 gal. / 49.21 L
