Papé Material Handling

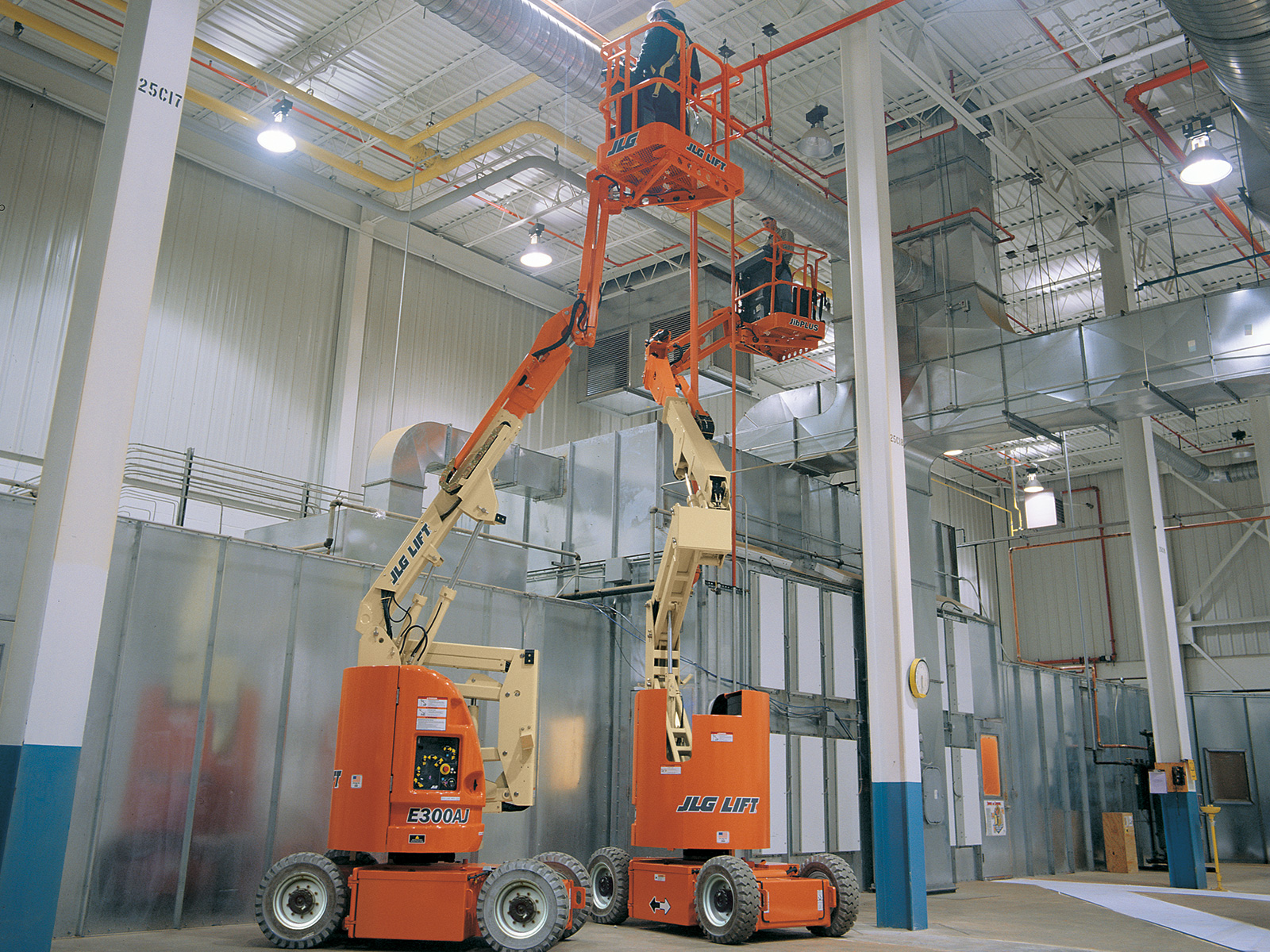

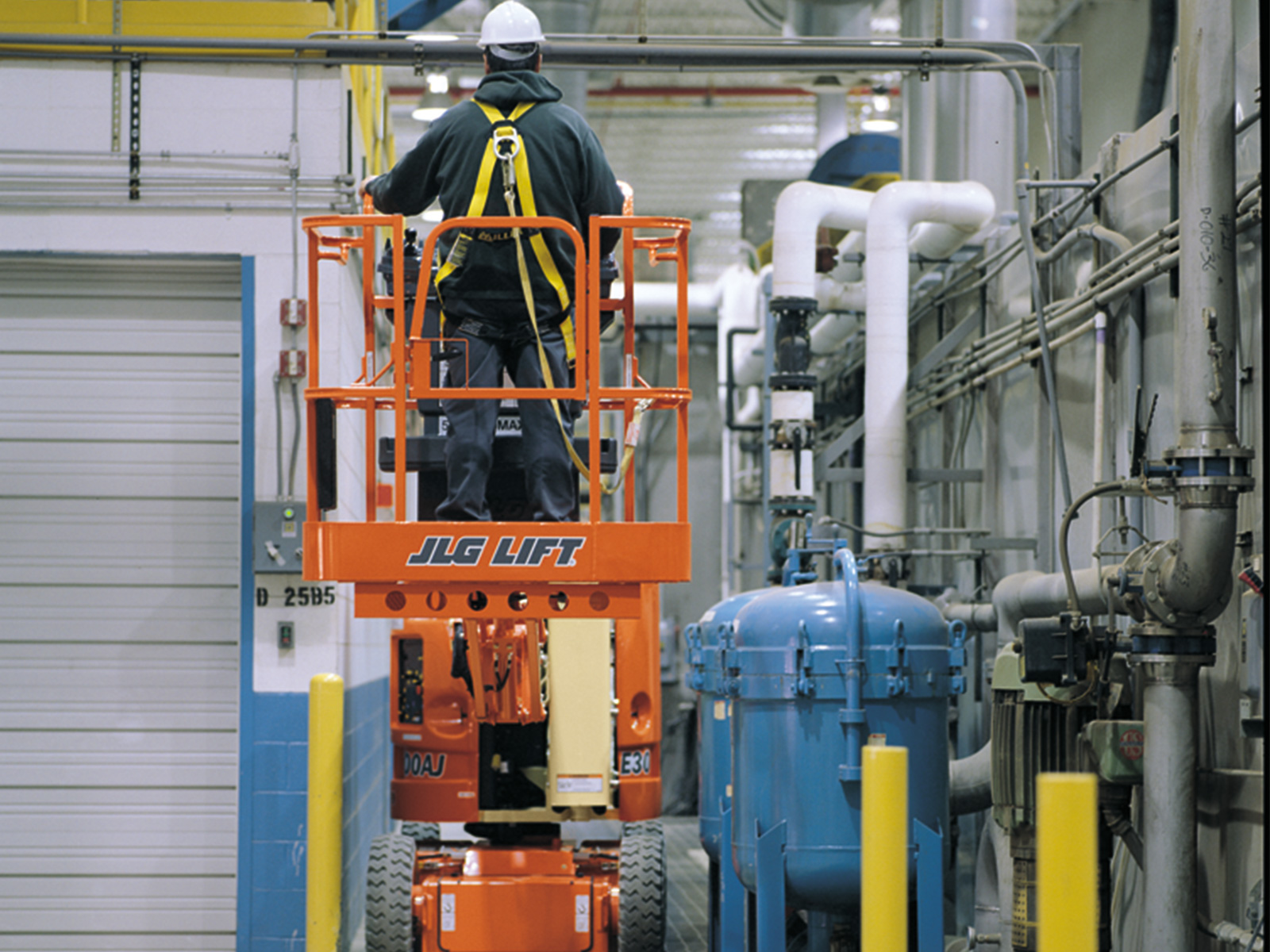

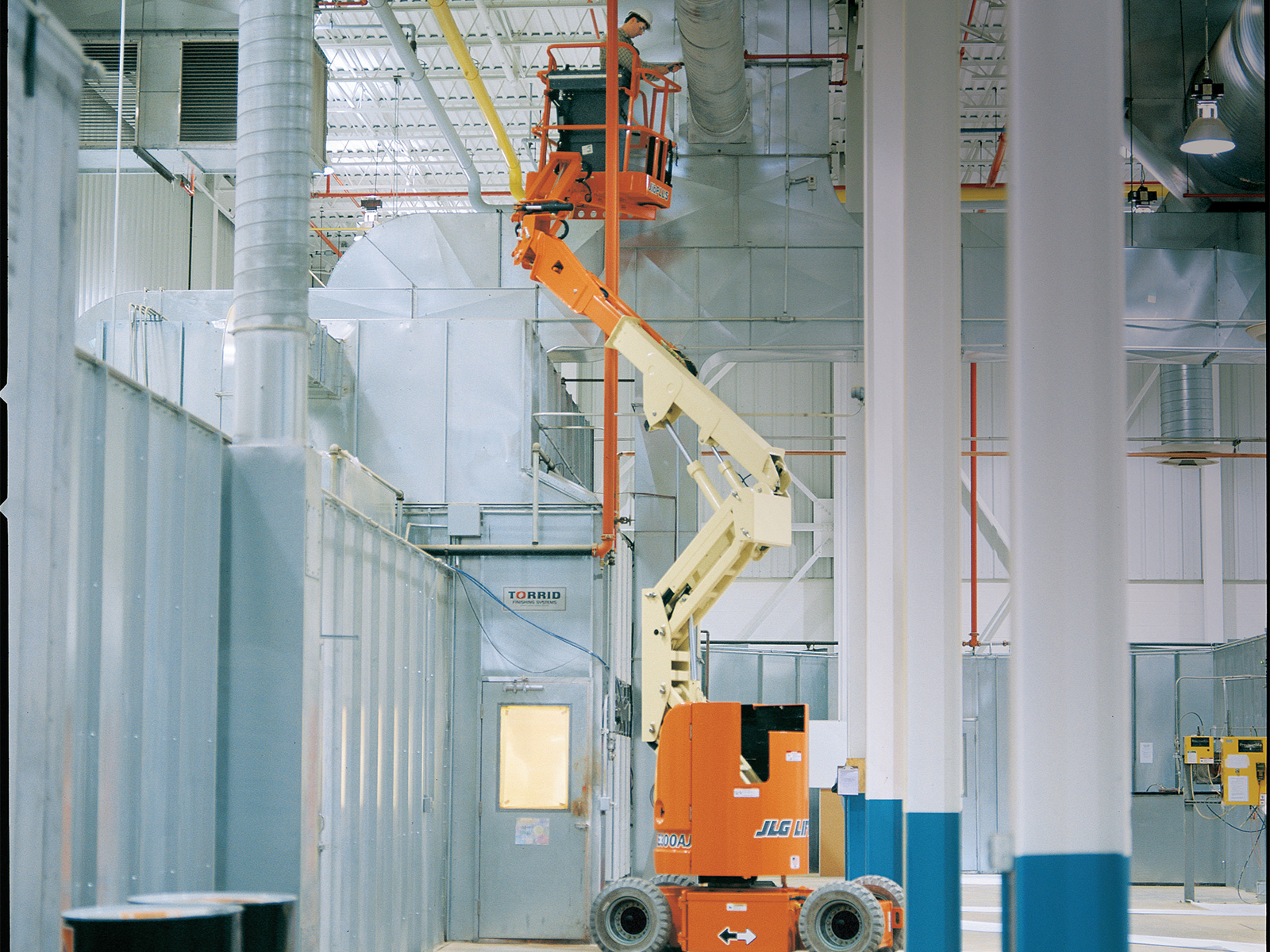

E300AJ

JLG
Articulated Boom Lift

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

Key Specs

Platform Height: 30 ft 2 in. / 9.19 m
Machine Width: 4 ft / 1.22 m
Platform Capacity - Unrestricted: 500 lb / 226.80 kg

Key Features

Accessibility – up and over access, optional jib
Maneuverability – move over uneven surfaces with Automatic Traction Control
Productivity – longer with longer duty cycles
Environmentally friendly – zero emissions

Environmentally friendly – zero emissions
Productivity – longer with longer duty cycles
Maneuverability – move over uneven surfaces with Automatic Traction Control
Accessibility – up and over access, optional jib

Specifications
Documents

Platform Dimension A: 2 ft 6 in. / 0.76 m
Horizontal Jib Rotation: 0 Degrees
Tire Size: 25 x 7 x 12 Non-marking
Machine Height: 6 ft 7 in. / 2.01 m
Batteries: 8 x 6V, 305 amp-hr
Jib - Range of articulation: 144 Degrees
Up and Over Height: 13 ft 2 in. / 4.01 m
Drive Speed - Platform Lowered: 3 mph / 4.83 km/h
Platform Capacity - Unrestricted: 500 lb / 226.80 kg
Machine Length: 18 ft 2 in. / 5.54 m
Gradeability - 2WD: 25 %
Wheelbase: 5 ft 5 in. / 1.65 m
Horizontal Outreach: 20 ft 3 in. / 6.17 m
Tailswing: 0 in. / 0 m
Turning Radius - Outside: 10 ft 2 in. / 3.1 m
Swing: 350 Degrees
Platform Dimension B: 4 ft / 1.22 m
Electrical System: 48 Volts DC
Ground Clearance: 4 in. / 0.1 m
Capacity - Hydraulic Reservoir: 2.1 gal. / 7.95 L
Platform Height: 30 ft 2 in. / 9.19 m
Swing Type: Non-Continuous
Machine Weight: 15060 lb / 6831.10 kg

Documents

Equipment Document
